5901799 - Simplicity Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton 72" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton

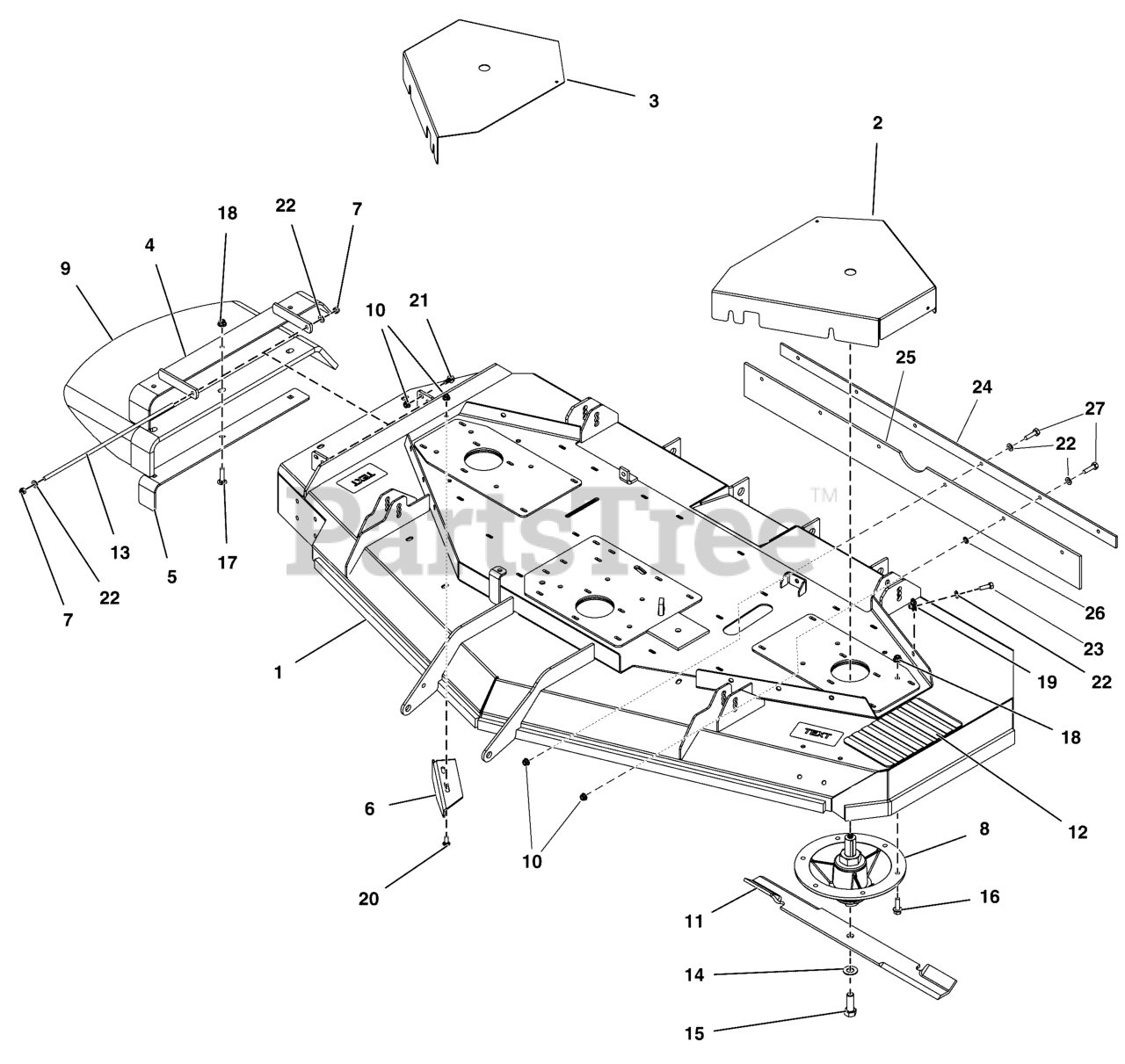

72" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

  • Title

1

Simplicity 5601205

DECK SHELL W/ DECALS, LMTD EDTN 72

$

$

Currently unavailable

2

Simplicity 84003266

GUARD, Belt

Note: (LH)

$88.99

$

Usually ships in 2-12 days

0

3

Simplicity 84003267

GUARD, Belt

Note: (RH)

$68.99

$

Usually ships in 2-12 days

0

4

Simplicity 84003246

FRAME, Chute

$89.99

$

Usually ships in 2-12 days

0

5

Simplicity 84003245

PLATE, Support

$29.99

$

In Stock, Qty 5

0

6

Simplicity 5407876AYP

PLATE, DEFLECTOR, 72 - BLK

$22.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 15

0

8

Simplicity 84003242

SPINDLE ASSEMBLY

$372.99

$

In Stock, only 1 left!

0

9

Simplicity 5413499YP

CHUTE, RUBBER DISCHARGE (5104442)

$170.99

$

Usually ships in 2-12 days

0

10

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

11

Simplicity 5102227SYP

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

Note: (Set of 3 blades)

$

$

Not available

12

Simplicity 5101005SM

SAFETY WALK, 9.75 X 6.00

$16.99

$

In Stock, only 2 left!

0

13

Simplicity 5061300SM

MOUNT, Chute

$14.99

$

In Stock, only 2 left!

0

14

Simplicity 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 770136

BOLT, 5/8-11 X 1 3/4, GR 8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

23

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

24

Simplicity 84003268

PLATE, Support

$33.99

$

Usually ships in 2-12 days

0

25

Simplicity 5102621YP

FLAP, STRIPER, 72 DECK

$113.99

$

In Stock, only 1 left!

0

26

Simplicity 5025498YP

NUT, Push On, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 11

0

27

Simplicity 5025055X10YP

BOLT, 5/16-18 x 1-1/4" TFL GD 5

$3.49

$

In Stock, only 2 left!

0
