5901984 - Simplicity Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton 61" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton

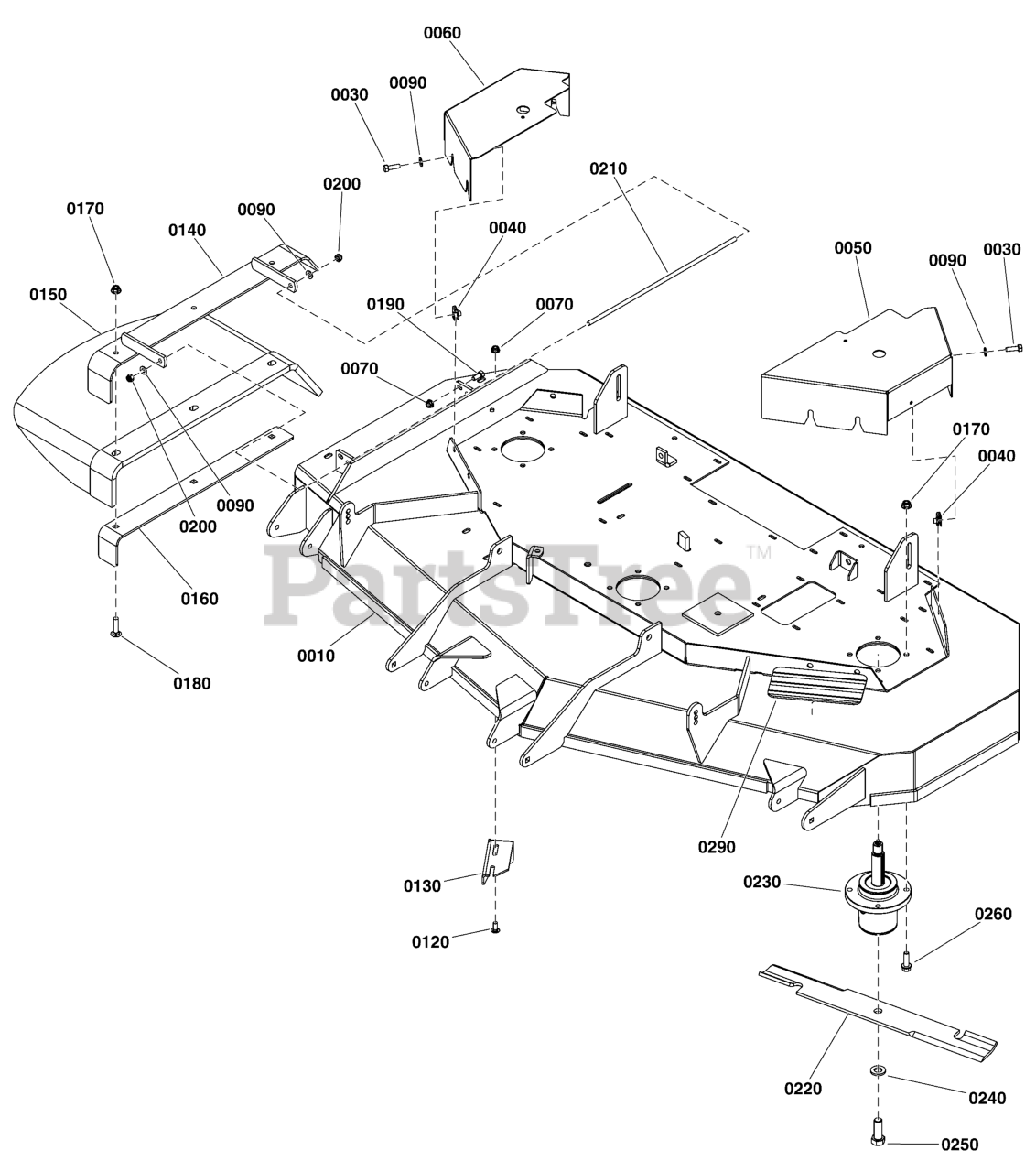

61" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0010

Simplicity 5601168

DECK SHELL W/ DECALS, CIT XT-61

$

$

Currently unavailable

0030

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

0040

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

0050

Simplicity 84003128

GUARD, Belt

Note: (Left)

$85.99

$

Usually ships in 2-12 days

0

0060

Simplicity 5415574CYP

GUARD, Belt

Note: (Right)

$72.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0090

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0120

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 5401344AYP

PLATE, Deflector

$28.99

$

Usually ships in 2-12 days

0

0140

Simplicity 84003246

FRAME, Chute

$89.99

$

Usually ships in 2-12 days

0

0150

Simplicity 5413499YP

CHUTE, RUBBER DISCHARGE (5104442)

$170.99

$

Usually ships in 2-12 days

0

0160

Simplicity 84003245

PLATE, Support

$29.99

$

In Stock, Qty 5

0

0170

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0180

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

0200

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 15

0

0210

Simplicity 5061300SM

MOUNT, Chute

$14.99

$

In Stock, only 2 left!

0

0220

Simplicity 5101755BMYP

BLADE 21 X .25 X 2.5

$27.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5061096SM

ASSM, SPINDLE, LONG SHAFT

$257.99

$

In Stock, only 2 left!

0

0240

Simplicity 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

0250

Simplicity 770136

BOLT, 5/8-11 X 1 3/4, GR 8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0290

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.99

$

In Stock, only 1 left!

0
