5901984 - Simplicity Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton Fuel Tank & Mount Group (5303233) Parts Diagram

Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton

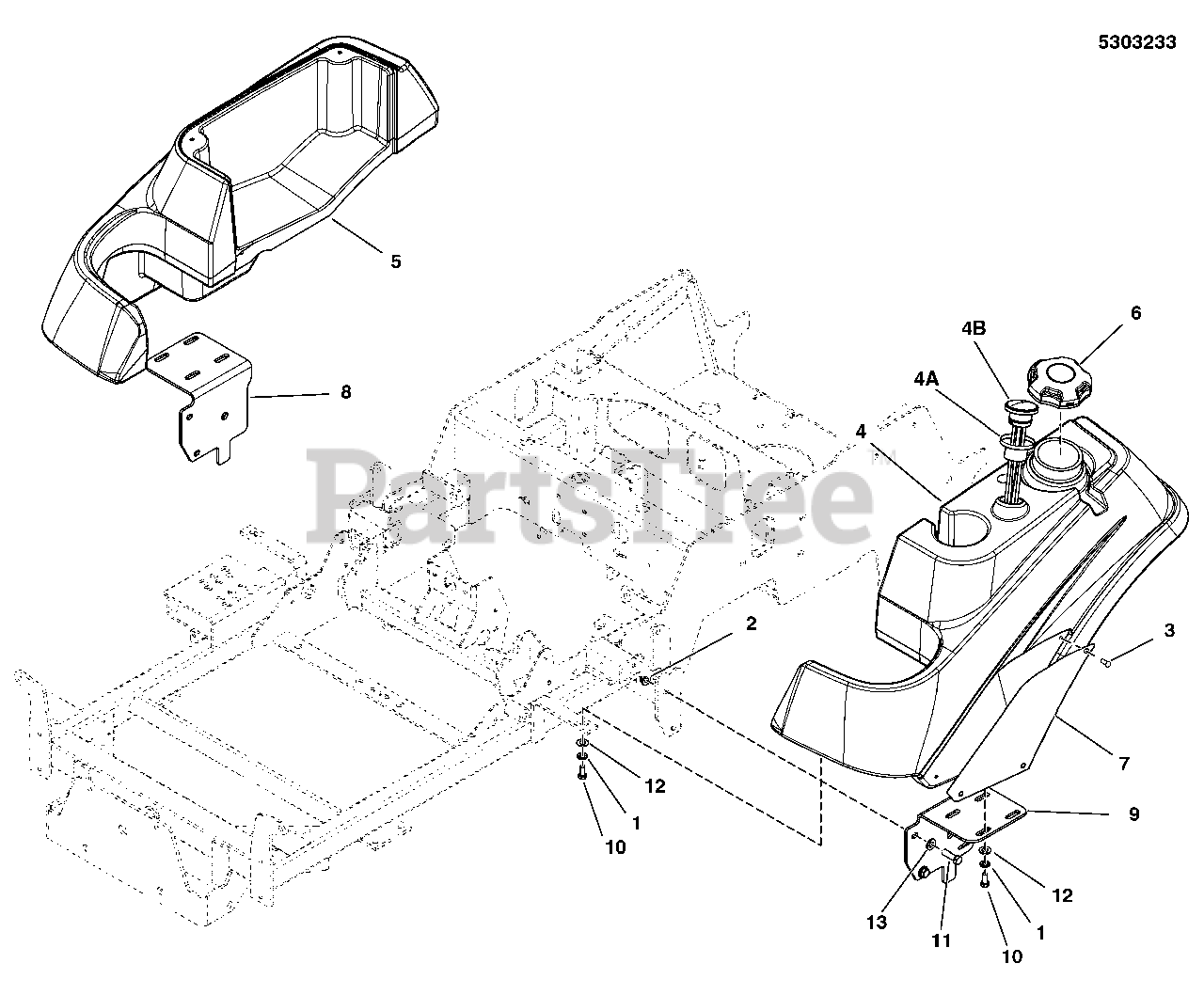

Fuel Tank & Mount Group (5303233) Parts Diagram

  • Title

1

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 5025386SM

SCREW, #10-24 X 3/8 ALLEN BHBZ

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 5103176YP

TANK, FUEL, IS500 & IS1500 - LH

$584.99

$

Usually ships in 2-12 days

0

4A

Simplicity 5022917X1SM

GROMMET, FUEL GAUGE

Note: (SV)

$7.49

$

In Stock, Qty 17

0

4B

Simplicity 5022917SM

GAUGE, FUEL

Note: (SV)

$53.99

$

In Stock, Qty 16

0

5

Simplicity 5049948SM

TANK, FENDER, 1500Z - RH

$326.99

$

In Stock, only 1 left!

0

6

Simplicity 5103005YP

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 1761224YP)

$49.99

$

In Stock, only 3 left!

0

7

Simplicity 5400250CSM

BADGE, IS1500Z, ORG

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 5409854AYP

WELD, TANK MOUNT, RH - BLK

$78.99

$

Usually ships in 2-12 days

0

9

Simplicity 5409856AYP

WELD, TANK MOUNT, LH - BLK

$70.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 5025292SM

WASHER, 5/16 F436 FLAT

$4.49

$

In Stock, Qty 11

0

13

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$4.49

$

In Stock, Qty 8

0
