5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Electrical Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

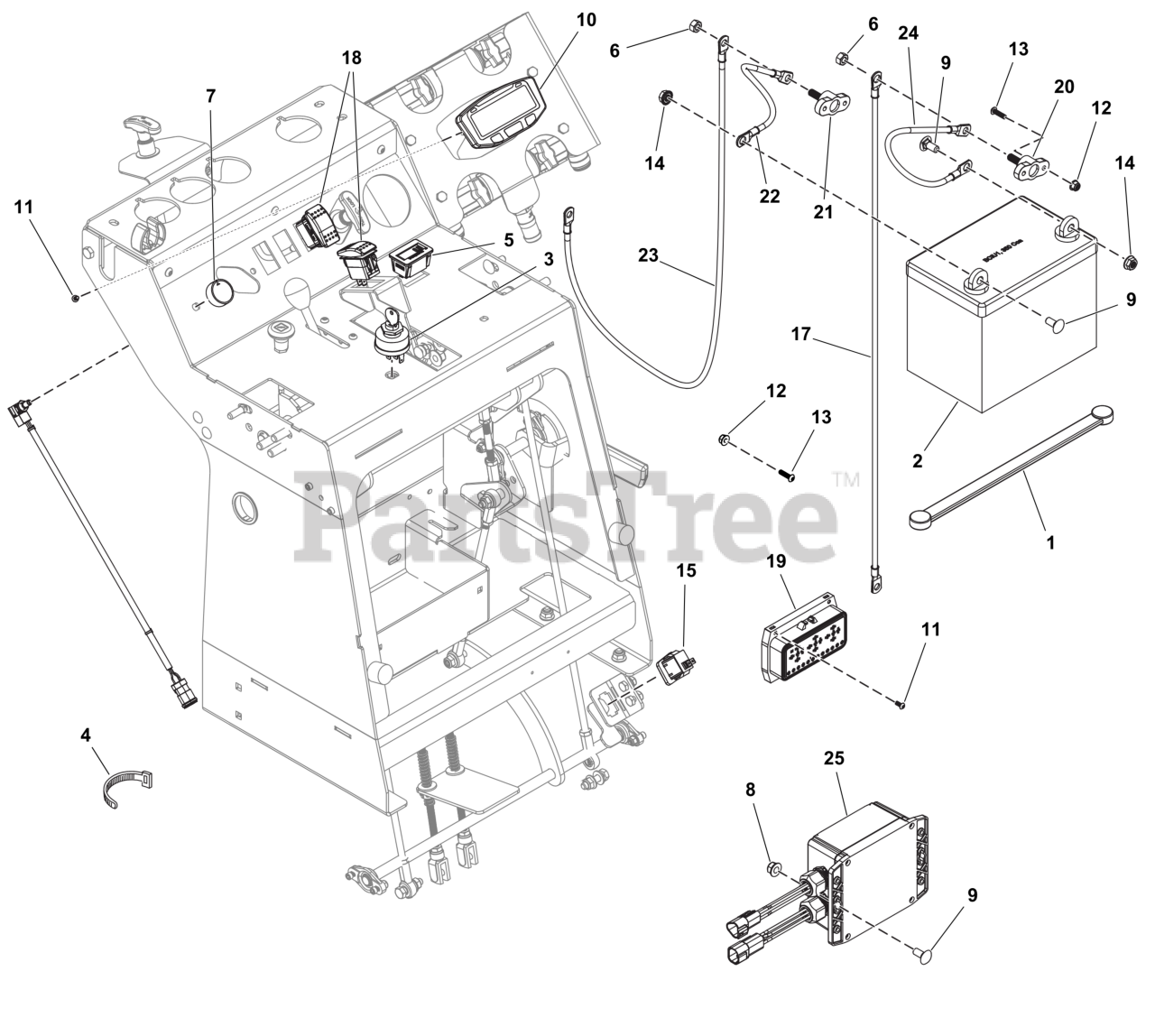

Electrical Group Parts Diagram

  • Title

1

Ferris 1722009SM

STRAP, Rubber, 13”

$10.99

$

In Stock, only 2 left!

0

2

BATTERY, 11U1L, 350 CCA

$

$

Not available

3

Ferris 5020927FS

SWITCH, IGNITION

$34.99

$

In Stock, Qty 20+

0

4

Ferris 5106297

CABLE TIE, .188" W X 7.50" LNG

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 1731185SM

METER-HOUR DIGITAL NO

$63.99

$

In Stock, only 1 left!

0

6

Ferris 84009879

NUT

$

$

Currently unavailable

7

Ferris 84009807

KNOB

$

$

Currently unavailable

8

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5107688

BLT-RDHDSQNK, .3125"-18 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 84009344

DISPLAY

$

$

Currently unavailable

11

Ferris 84010955

SCR-CAP, SBH M4-0.7 X 10MM SS188

$

$

Currently unavailable

12

Ferris 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

13

Ferris 5108503

SCR-CAP, SBH #10-24 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 84010977

NUT

$

$

Currently unavailable

15

Ferris 84006599

SWITCH

$13.99

$

In Stock, only 2 left!

0

16

Ferris 84013097

POTENTIOMETER, Speed Control

$

$

Currently unavailable

17

CABLE, Battery, Black

Note: (Includes items #6, #9, #12, #13, #14, #20 and #24.)

$

$

Not available

18

Ferris 84013098

SWITCH, On/Off

$

$

Currently unavailable

19

Ferris 84013096

HARNESS, Wiring

Note: (Refer to Note: *)Note: *Only Fuse/Relay Holder shown. See Electrical Wiring Harness for rest of harness display.

$

$

Currently unavailable

20

Ferris 84013179

STUD (Black)

Note: (Includes items #6, #12, and #13.)

$

$

Currently unavailable

21

Ferris 84013180

STUD (Red)

Note: (Includes items #6, #12, and #13.)

$

$

Currently unavailable

22

Ferris 84013197

CABLE, Battery, Red

Note: (Includes items #6, #9, #12, #13, #14, #21, and #23.)

$

$

Currently unavailable

23

CABLE, BATTERY 38" RED 5/16-5/16

$

$

Not available

24

CABLE, BATTERY 13" BLACK 5/16-5/16

$

$

Not available

25

Ferris 84013198

CONTROL, Motor

Note: (Includes items #8 and #9.)

$

$

Currently unavailable
