5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Engine Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

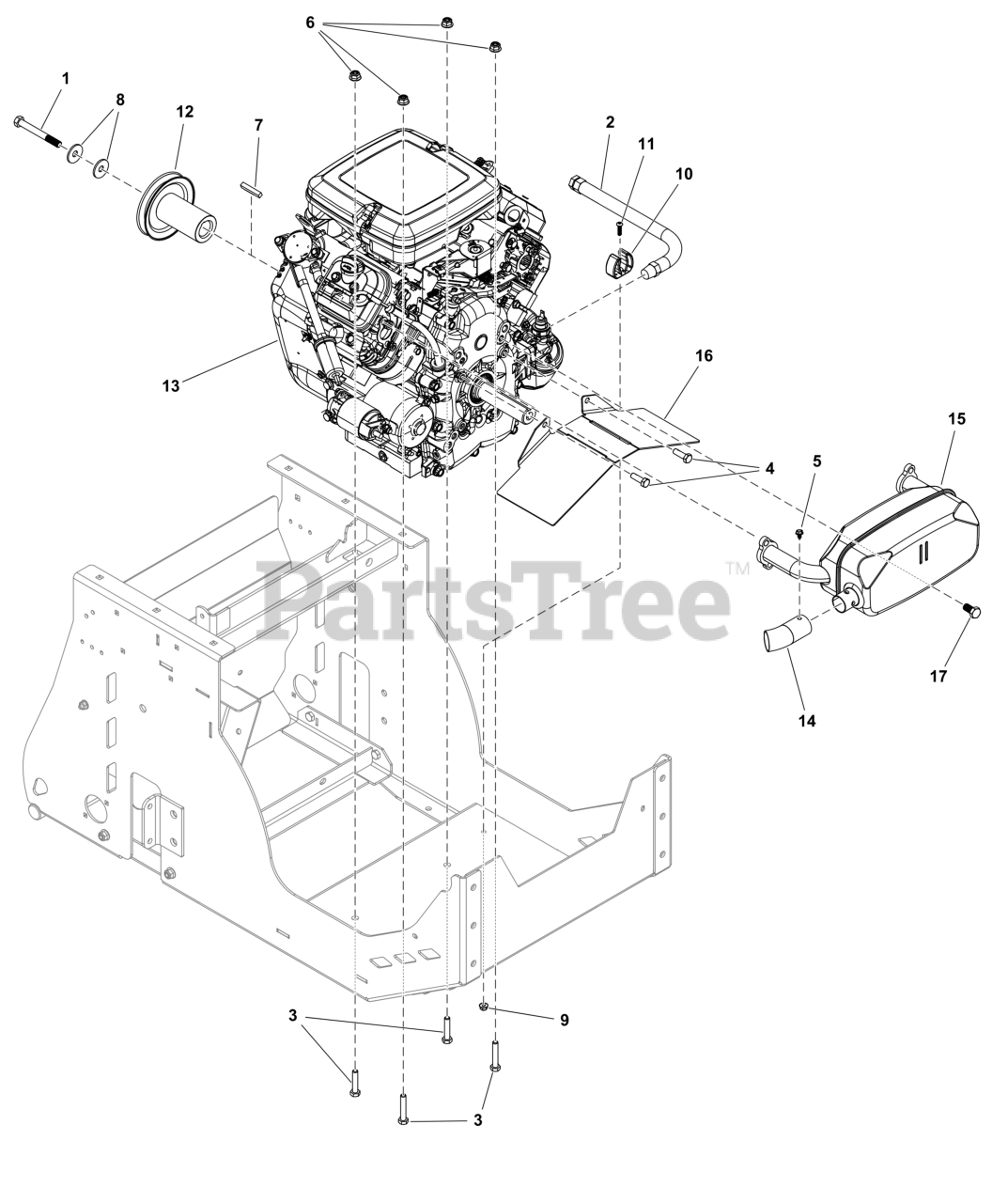

Engine Group Parts Diagram

  • Title

1

Ferris 01X144MA

BOLT, 3/8-24 NF x 3-1/4" Hex Head, GR 8

$

$

Currently unavailable

2

Ferris 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, only 2 left!

0

3

Ferris 84013187

KIT, Hardware (Engine Mounting)

Note: (Includes item #3 - Qty (4) and #6 - Qty (4).)

$

$

Currently unavailable

4

Ferris 8042026

SCR-CAP, HEX .3125''-24X.750'' EP42

$

$

Currently unavailable

5

Ferris 8123087

SCREW SELFTAP #10-24 X 3/8" HMS ZP

$

$

Currently unavailable

6

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 84013184

KEY

$

$

Currently unavailable

8

Ferris 84013181

WASHER, Beveled

$

$

Currently unavailable

9

Ferris 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 84013186

CLIP

Note: (Includes items #9 and #11.)

$

$

Currently unavailable

11

Ferris 5108503

SCR-CAP, SBH #10-24 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

12

Ferris 84013192

PULLEY

Note: (Includes items #1, #7, and #8.)

$

$

Currently unavailable

13

ENGINE, 18HP, HORIZ. W/ STUB, 50/20

$

$

Not available

14

Ferris 84013185

PIPE, Exhaust

Note: (Includes ref #5.)

$

$

Currently unavailable

15

690931

MUFFLER

$

$

Not available

16

Ferris 84013182

GUARD

Note: (Includes item #4.)

$

$

Currently unavailable

17

Ferris 8041048

SCREWCAP 3/8-16 X 3/4" HCS ZP

$

$

Currently unavailable
