5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Front Axle Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

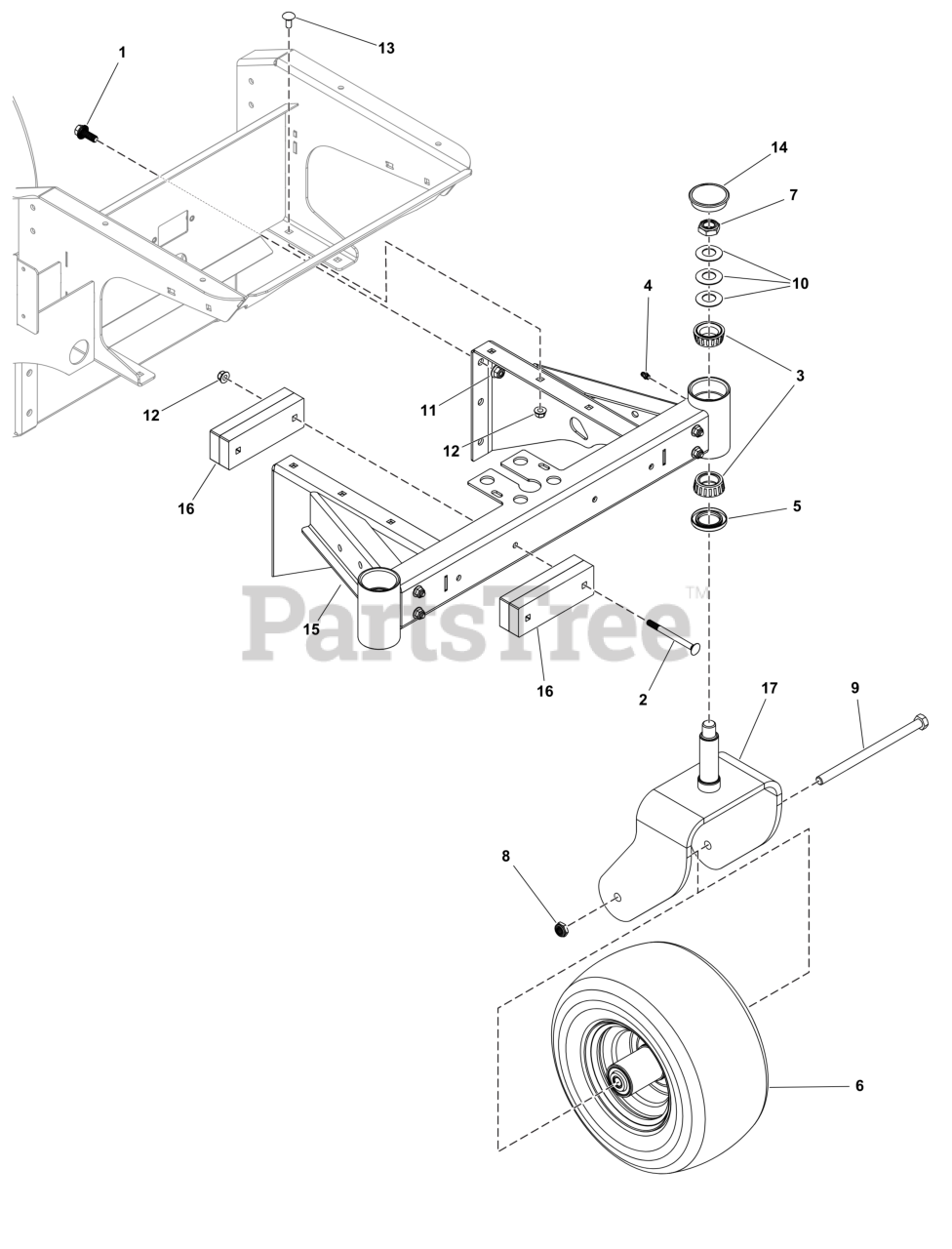

Front Axle Group Parts Diagram

  • Title

1

SCR-CAP, HSWH .375"-16 X 1.000" SS188

$

$

Not available

2

BLT-RDHDSQNK, .3125"-18 X 3.75" SS188

$

$

Not available

3

Ferris 84008990

BEARING

$

$

Currently unavailable

4

Ferris 84009476

ZERK, GREASE FITTING

$

$

Currently unavailable

5

Ferris 84010165

SEAL

$

$

Currently unavailable

6

Ferris 84010752

WHEEL, CASTER

$

$

Currently unavailable

6-1

Ferris 84009669

KIT, BEARING

Note: (Includes 2 each of bearing, spacer, and seal to service 5106150 tire)

$

$

Currently unavailable

7

Ferris 5106184FS

NUT

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 84009871

NUT

$

$

Currently unavailable

9

Ferris 84010137

CAPSCREW

$

$

Currently unavailable

10

Ferris 84010821

WASHER

$

$

Currently unavailable

11

Ferris 84009876

NUT

$

$

Currently unavailable

12

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5107688

BLT-RDHDSQNK, .3125"-18 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 5109845FS

CAP

$8.49

$

In Stock, Qty 20+

0

15

KIT, Front End, Caster

Note: (Includes items #1, 2, 4, 11, 12 and 16.)

$

$

Not available

16

WELD, WEIGHT PLATE, 5 X 2 X 1.5, 5 LBS

$

$

Not available

17

Ferris 84013061

YOKE, Caster

Note: (Includes items #8 and 9.)

$

$

Currently unavailable
