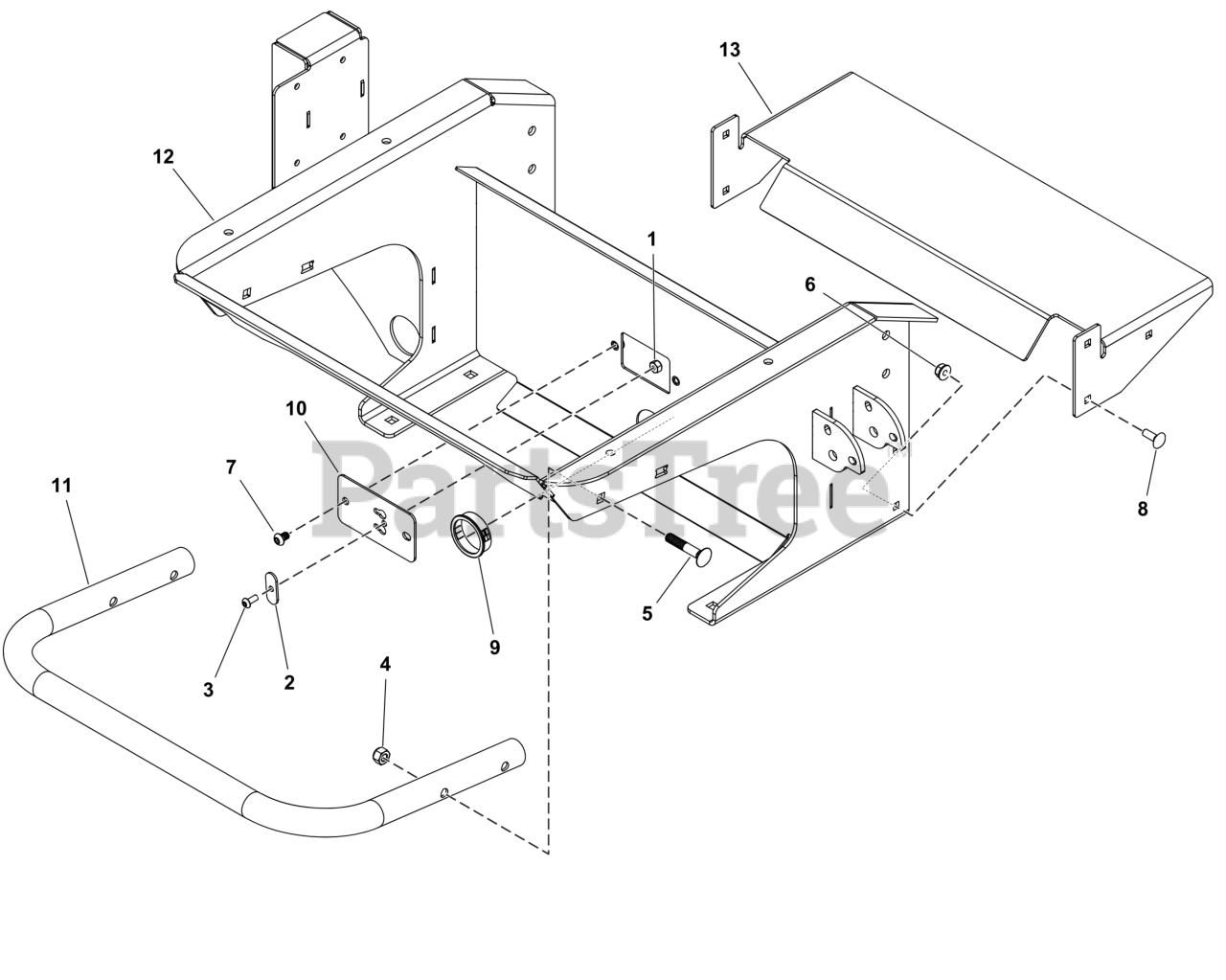

5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Hopper Support Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

Hopper Support Group Parts Diagram

  • Title

1

Ferris 5105963FS

NUT

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 84009927

PLATE

$

$

Currently unavailable

3

Ferris 84009048

BOLT

$

$

Currently unavailable

4

Ferris 5105992FS

NUT

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 84010972

BOLT

$

$

Currently unavailable

6

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 84010141

CAPSCREW

$

$

Currently unavailable

8

Ferris 5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

9

Ferris 84013012

BUSHING, Snap

$

$

Currently unavailable

10

Ferris 84011032

PLATE

$

$

Currently unavailable

11

BUMPER, Tube

Note: (Includes items # 4 & 5.)

$

$

Not available

12

SUPPORT ASSEMBLY

Note: (Includes items # 4, 5, 6, and 8.)

$

$

Not available

13

Ferris 84013031

SHIELD, Heat

Note: (Includes items # 6 and 8.)

$

$

Currently unavailable
