5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Main Frame Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

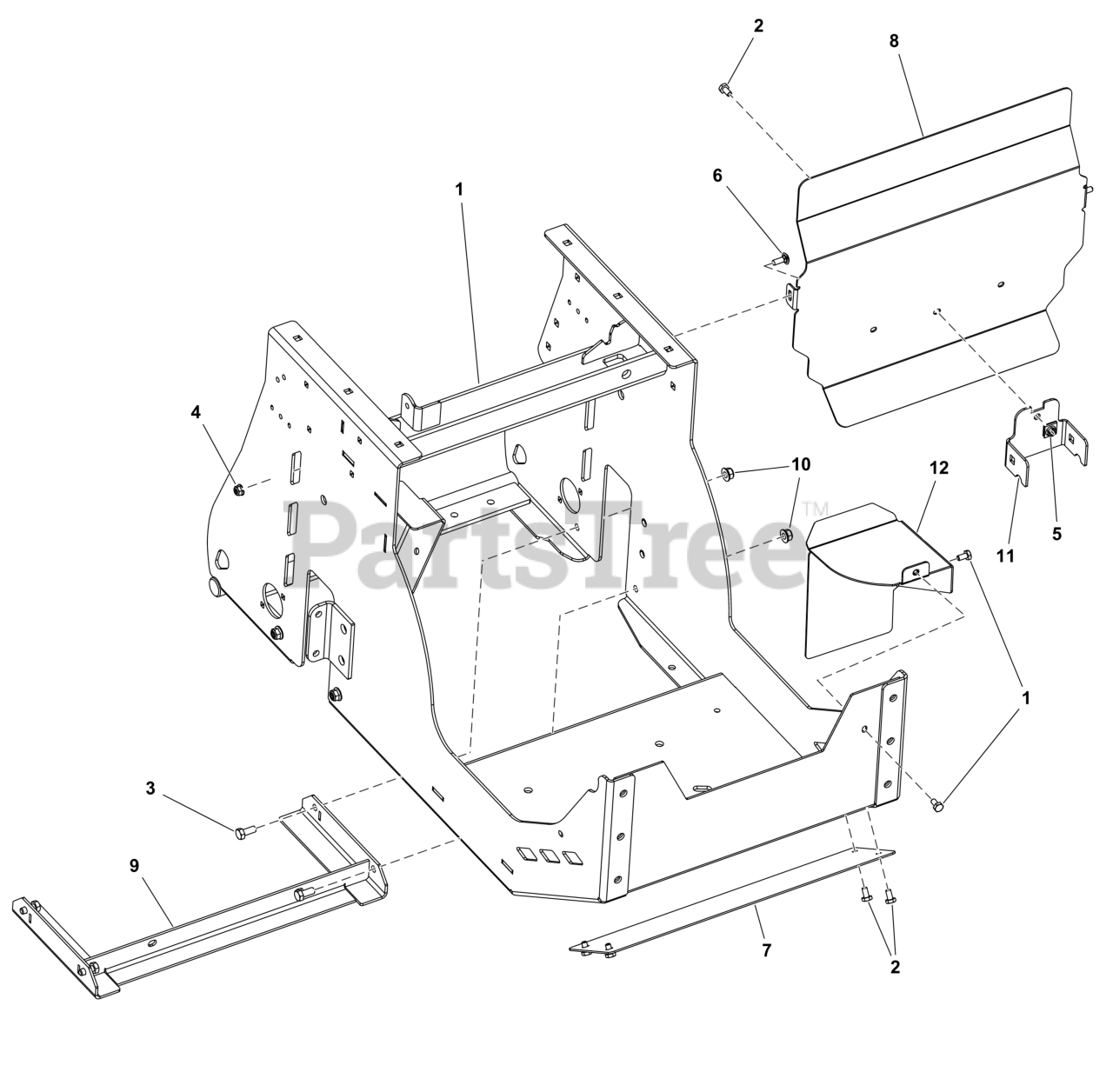

Main Frame Group Parts Diagram

  • Title

1

Ferris 84013017

FRAME

Note: (Includes item #2, #3, #4, #6, and #10.)

$

$

Currently unavailable

2

Ferris 84009055

BOLT

$

$

Currently unavailable

3

Ferris 84009062

BOLT

$

$

Currently unavailable

4

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

5

NUT-CLIP, .25"-20 X .5 EDGE DISTANCE

$

$

Not available

6

Ferris 5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 84013014

PAN, Bottom

Note: (Includes item #2 - qty (4).

$

$

Currently unavailable

8

Ferris 84013018

SHIELD, Heat

Note: (Includes item #2, #4, #5, and #6.)

$

$

Currently unavailable

9

Ferris 84013013

SUPPORT, Transaxle

Note: (Includes item #3 and 10.)

$

$

Currently unavailable

10

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 84013015

SUPPORT, Heat Shield

Note: (Includes item #2 and #5.)

$

$

Currently unavailable

12

Ferris 84013209

DIVERTER

Note: (Includes item #2 - qty (2).

$

$

Currently unavailable
