5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Operator Platform Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

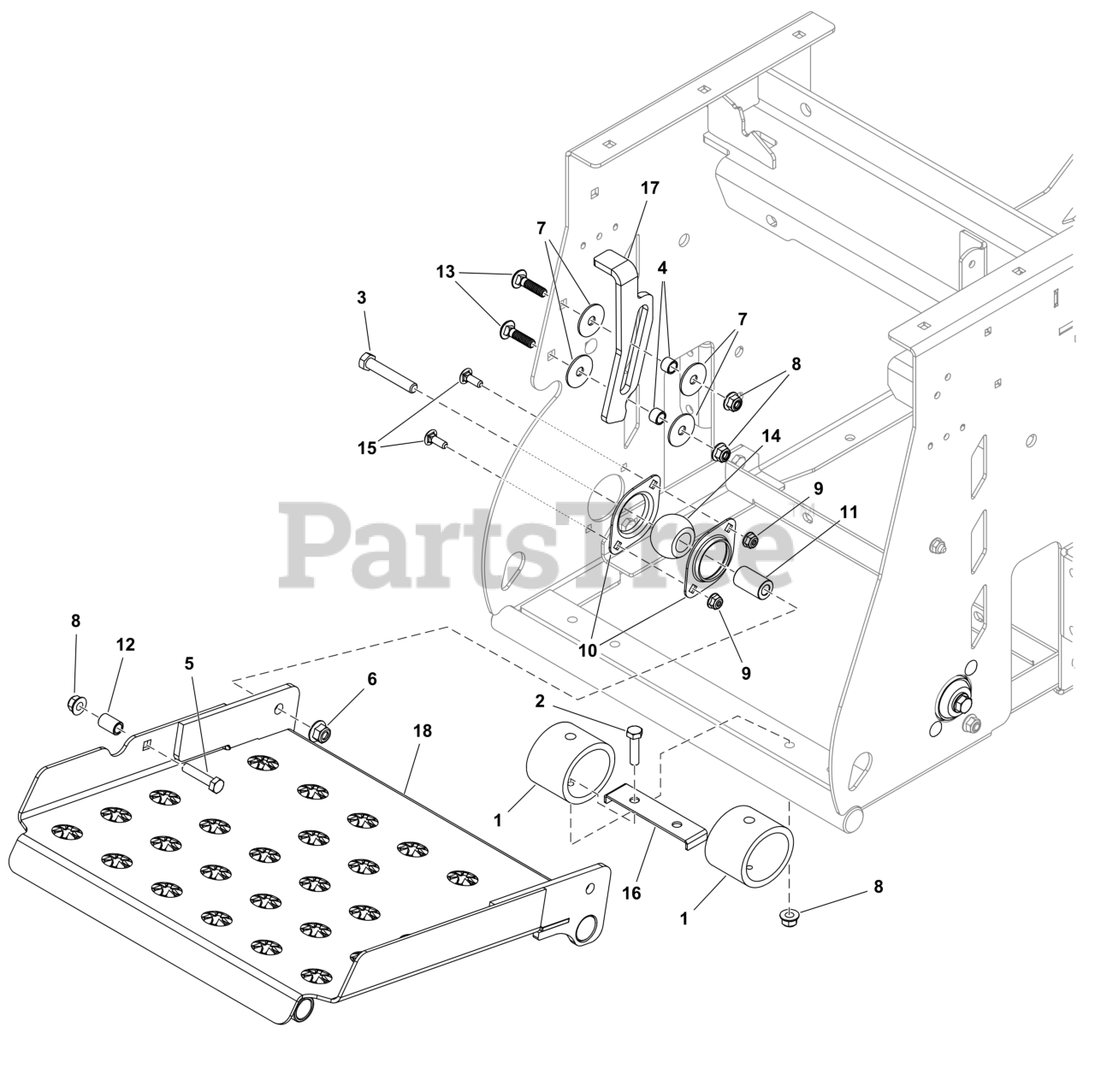

Operator Platform Group Parts Diagram

  • Title

1

Ferris 5105128FS

BUMPER

$28.99

$

Usually ships in 2-12 days

0

2

Ferris 84009386

FASTENER

$

$

Currently unavailable

3

Ferris 5106581

SCR-CAP, HEX .375"-16 X 2.250" SS188

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5106687

SPCR-SS, 304 0.375" X 0.500" X .357"

$52.99

$

Usually ships in 2-12 days

0

5

Ferris 84010134

CAPSCREW

$

$

Currently unavailable

6

Ferris 84009876

NUT

$

$

Currently unavailable

7

Ferris 5107652

WSHR-SS, FLT .348"X1.250"X.065" FEN

$2.49

$

Usually ships in 2-12 days

0

8

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5107663

40M-2-SS TWO-BOLT FLANGE

$10.99

$

Usually ships in 2-12 days

0

11

Ferris 5107665

SPCR-SS, 304 .375" X .750" X 1.250"

$32.99

$

Usually ships in 2-12 days

0

12

Ferris 5107671

SPCR-SS, 303 .343" X .500" X .779"

$32.99

$

Usually ships in 2-12 days

0

13

Ferris 5108084

BLT-RDHDSQNK, .3125"-18 X 1.250" SS188

$2.49

$

Usually ships in 2-12 days

0

14

KIT, Bearing

Note: (Includes items #3, #6, #9, #10, #11, and #15.)

$

$

Not available

15

Ferris 5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

16

BRACKET

Note: (Includes items #1, #2, and #8.)

$

$

Not available

17

Ferris 84013193

KIT, Latch

Note: (Includes items #4, #7, #8, and #13.)

$

$

Currently unavailable

18

PLATFORM

Note: (Includes items #3, #5, #6, #8 and #12.)

$

$

Not available
