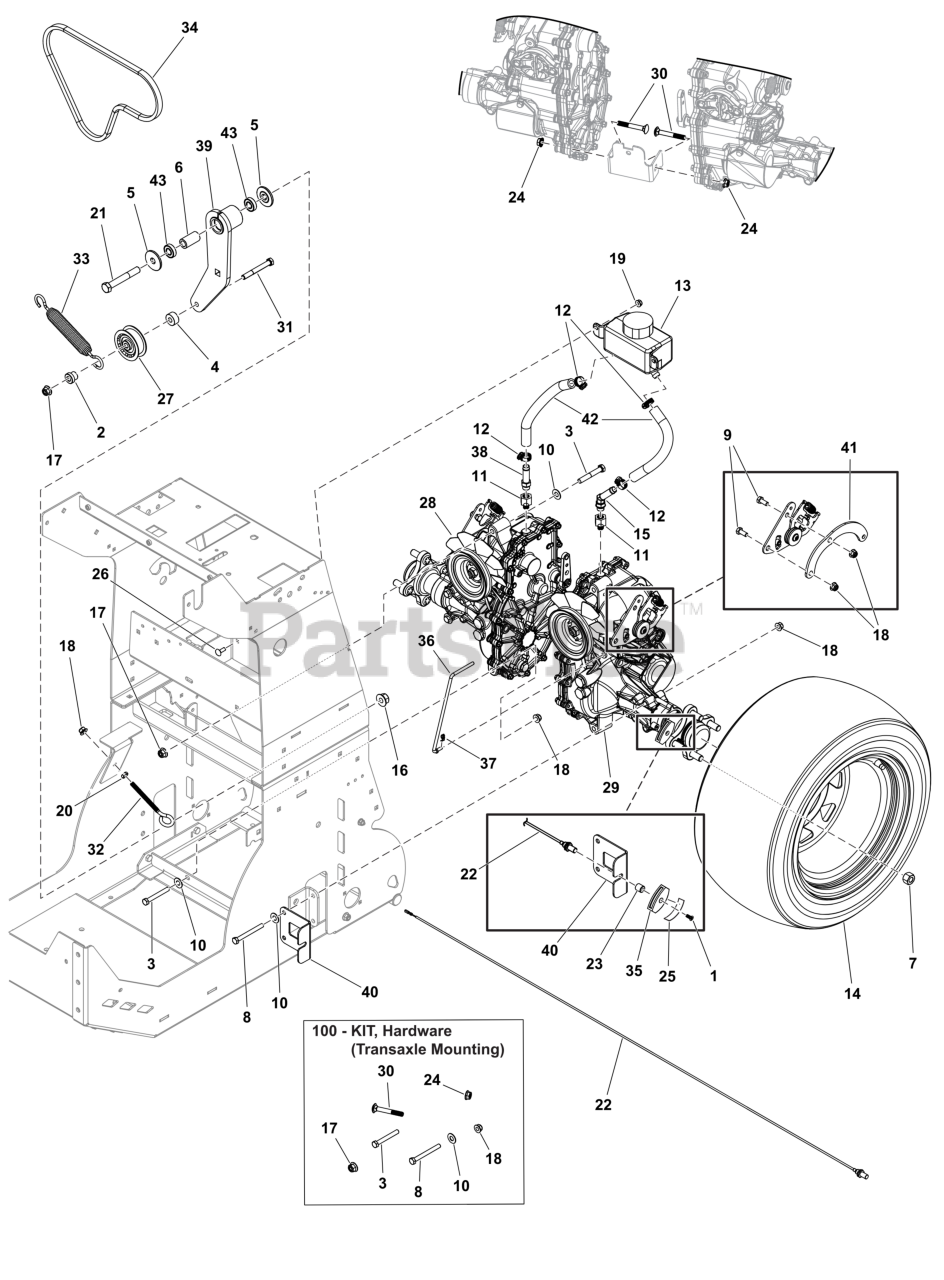

5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Power Transmission Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

Power Transmission Group Parts Diagram

  • Title

1

Ferris 5025748

SCREW, 10-24 X .375, FH #2 SS 316

$

$

Currently unavailable

2

Ferris 5023257YP

BUSHING, .38 X .88 X

$12.99

$

Usually ships in 2-12 days

0

3

SCR-CAP, HEX .3125"-18 X 2.500" SS188

$

$

Not available

4

Ferris 5046860SM

SPACER

$6.99

$

In Stock, only 2 left!

0

5

Ferris 5103262YP

SPACER, IDLER ARM

$8.49

$

In Stock, Qty 11

0

6

Ferris 5103812YP

SPACER, .52 X .84 X 1

$8.49

$

In Stock, only 4 left!

0

7

Ferris 84009878

NUT

$

$

Currently unavailable

8

Ferris 84009061

BOLT

$

$

Currently unavailable

9

Ferris 84009062

BOLT

$

$

Currently unavailable

10

Ferris 84010427

WASHER

$

$

Currently unavailable

11

FITTING (Adapter)

$

$

Not available

12

Ferris 84009147

CLAMP

$

$

Currently unavailable

13

Ferris 84013228

TANK, Oil

Note: (Includes ref #19 and #26.)

$

$

Currently unavailable

14

Ferris 84008876

WHEEL ASSEMBLY

$

$

Currently unavailable

15

Ferris 84013230

FITTING (45 Degree)

$

$

Currently unavailable

16

Ferris 5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 84009876

NUT

$

$

Currently unavailable

18

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

20

Ferris 5107673

NUT-HEX, JAM .3125"-24 LH SS188

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5107686

SCR-CAP, HEX .500"-13 X 3.500" SS188

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 84010180

SENSOR

$

$

Currently unavailable

23

Ferris 84009825

MAGNET

$

$

Currently unavailable

24

Ferris 84010977

NUT

$

$

Currently unavailable

25

SCR-CAP, HEX .375"-16 X 2.500" SS188

$

$

Not available

25

Ferris 5111755

TAPE, ACRYLIC FOAM, .5" X 2.0"

$

$

Currently unavailable

26

Ferris 5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

27

Ferris 84010019

PULLEY, IDLER

$

$

Currently unavailable

28

Ferris 84006968

TRANSAXLE

$1206.99

$

Usually ships in 2-12 days

0

29

Ferris 84006969

TRANSAXLE

$1206.99

$

Usually ships in 2-12 days

0

30

Ferris 5109263

BLT-RDHDSQNK, .3125"-18 X 2.250" SS188

$

$

Not available

31

SCR-CAP, HEX .375"-16 X 3.00" SS188

$

$

Not available

32

Ferris 84013218

EYE BOLT ANCHOR

Note: (Includes ref #18 and #20.)

$

$

Currently unavailable

33

Ferris 84008048

SPRING, Extension

$1.99

$

Usually ships in 2-12 days

0

34

Ferris 84013214

BELT, Drive

$

$

Currently unavailable

35

MOUNT, SPEED SENSOR 3D, LZ200

$

$

Not available

36

Ferris 84013215

ROD, Bypass

Note: (Includes ref #37.)

$

$

Currently unavailable

37

PIN, 1/4" RUE RING

$

$

Not available

38

Ferris 84013231

FITTING (Straight)

$

$

Currently unavailable

39

ARM, Idler

Note: (Includes ref #5, #6, #16, #17, #21, #31, and #43.)

$

$

Not available

40

Ferris 84013217

SENSOR, Speed

Note: (Includes ref #1, #8, #10, #18, #22, #23, #25, and #35.)

$

$

Currently unavailable

41

Ferris 84013216

ARM, Control

Note: (Includes ref #9 and #18.)

$

$

Currently unavailable

42

HOSE, PUSH-LOK 1/2 I.D. X 8"

$

$

Not available

43

Ferris 7078243YP

BEARING, BALL, AXLE

$10.99

$

In Stock, Qty 20+

0

100

KIT, Hardware (Transaxle Mounting)

Note: (Includes ref #3, #8, #10, #17, #18, #24, and #30.)

$

$

Not available
