5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Spray Tank Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

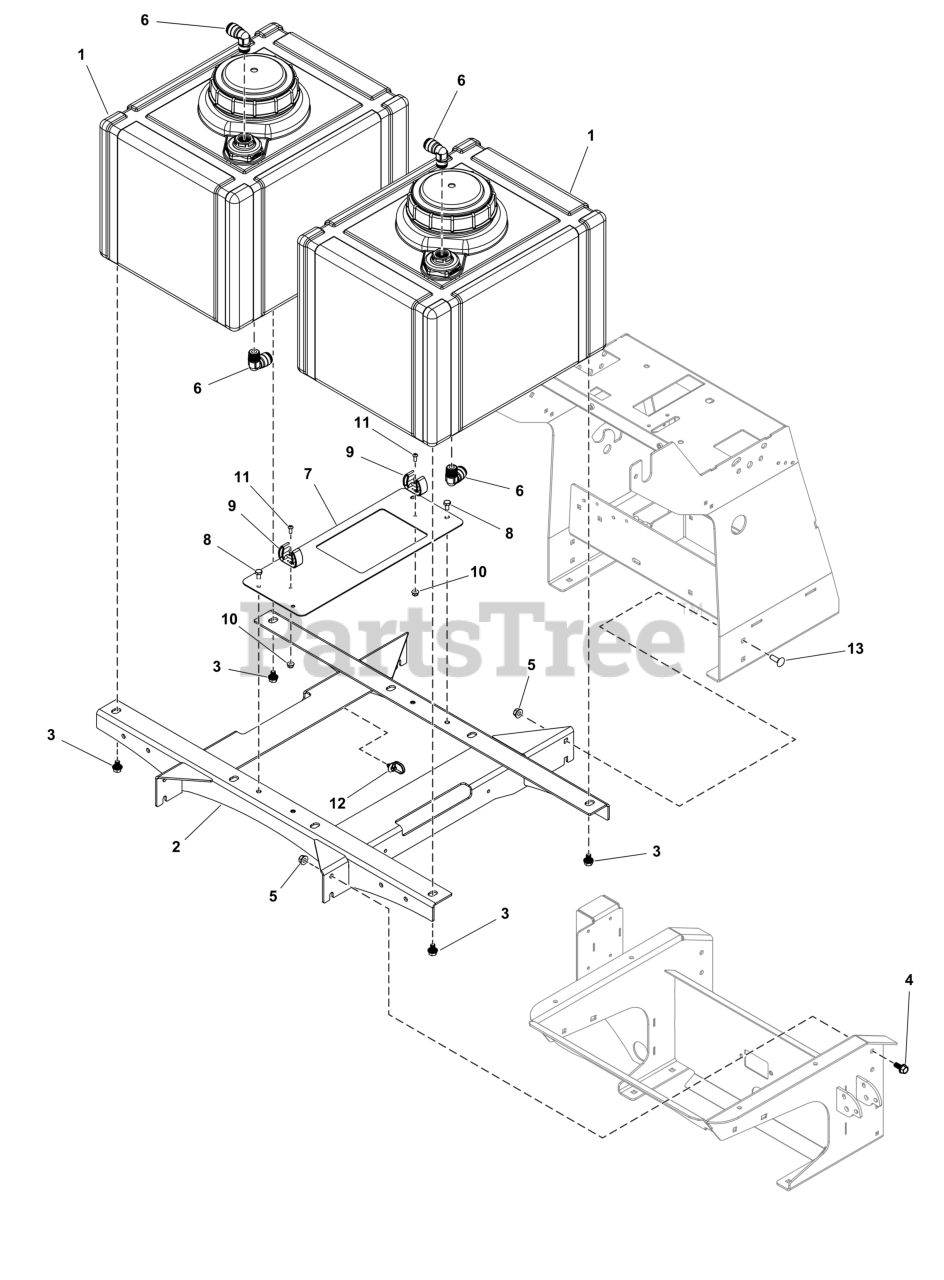

Spray Tank Group Parts Diagram

  • Title

1

Ferris 84013233

TANK (12 Gallon)

Note: (Includes ref #3 and #6.)

$

$

Currently unavailable

2

Ferris 84013236

MOUNT, Tank

Note: (Includes ref #4, #5, #8, and #13.)

$

$

Currently unavailable

3

Ferris 5108654

SCR-CAP, HSWH .3125"-18 X .500" SS188

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5108284

SCR-CAP, HSWH .313"-18 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

5

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 84013234

FITTING (Elbow)

$

$

Currently unavailable

7

PLATE (Hose Catcher)

Note: (Includes ref #8, #9, #10, and #11.)

$

$

Not available

8

Ferris 84009055

BOLT

$

$

Currently unavailable

9

Ferris 84013235

CLIP (Set of 2)

Note: (Includes ref #10 and #11.)

$

$

Currently unavailable

10

Ferris 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 84009048

BOLT

$

$

Currently unavailable

12

Ferris 84010968

CABLE, TIE

$

$

Currently unavailable

13

Ferris 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0
