5902195 - Ferris Venture X Series Stand-On Spreader Sprayer Steering Group Parts Diagram

Venture X Series Stand-On Spreader Sprayer

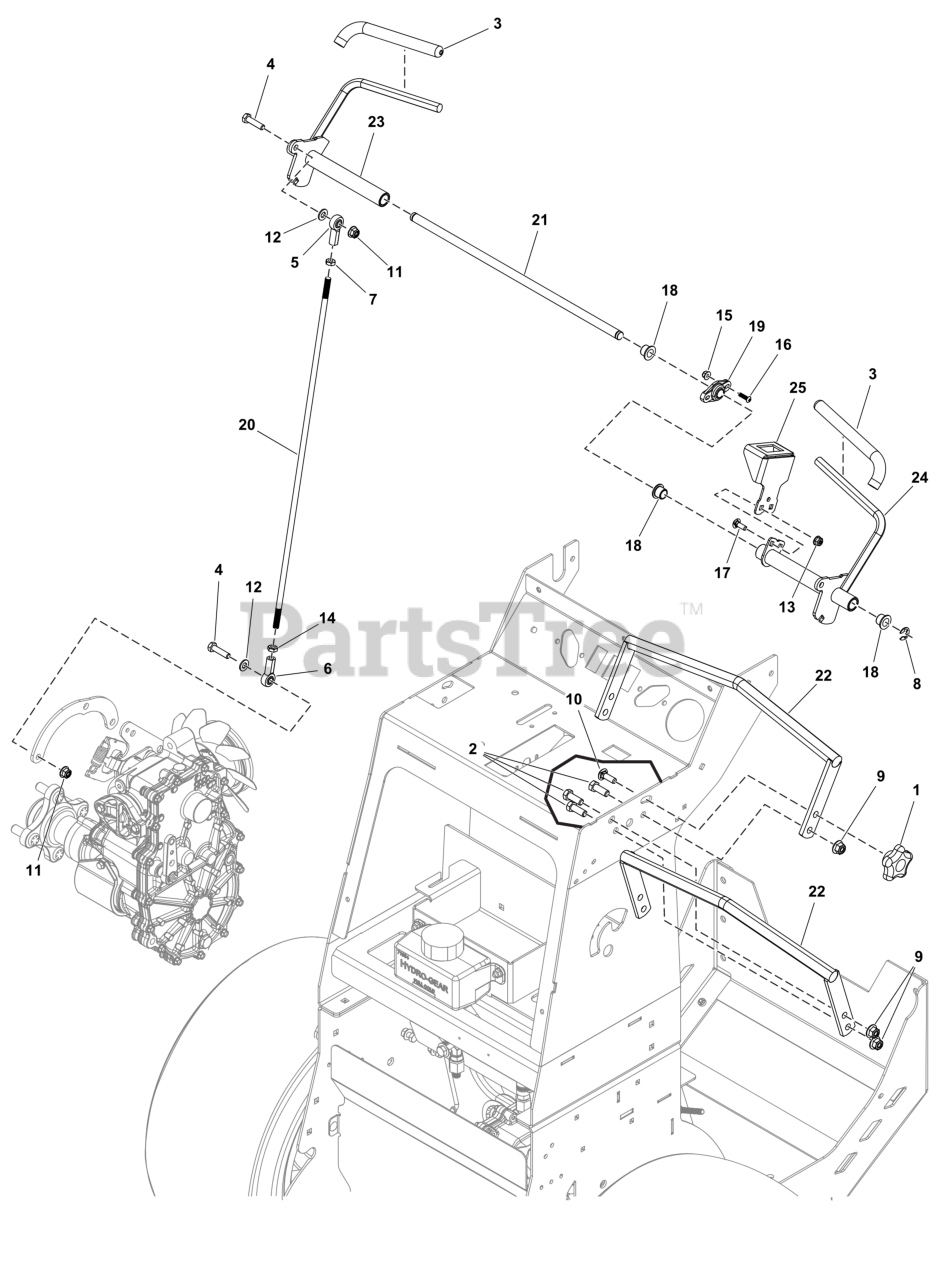

Steering Group Parts Diagram

  • Title

1

Ferris 84013092

KNOB

$

$

Currently unavailable

2

Ferris 84010135

CAPSCREW

$

$

Currently unavailable

3

Ferris 5100619FS

GRIP

$6.99

$

Usually ships in 2-12 days

0

4

Ferris 84009386

FASTENER

$

$

Currently unavailable

5

Ferris 5106244

ROD END, FEMALE 5/16-24 RH ZP PTFE RACE

$12.99

$

Usually ships in 2-12 days

0

6

Ferris 5106245

ROD END, FEMALE 5/16-24 LH ZP PTFE RACE

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5106688

NUT-HEX, JAM .3125"-24 SS188

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 84009358

E-RING

$

$

Currently unavailable

9

Ferris 84009876

NUT

$

$

Currently unavailable

10

Ferris 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5107654

WSHR-SS, FLT .344"X.688"X.065" SAE

$2.49

$

Usually ships in 2-12 days

0

13

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 5107673

NUT-HEX, JAM .3125"-24 LH SS188

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

16

Ferris 5108503

SCR-CAP, SBH #10-24 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

17

Ferris 5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

18

Ferris 84009101

BUSHING

$

$

Currently unavailable

19

Ferris 84013091

BEARING (w/ hardware)

Note: (Includes mounting hardware.)

$

$

Currently unavailable

20

Ferris 84013060

ROD, Control

Note: (Includes items #4, 5, 6, 7, 11, 12 and 14.)

$

$

Currently unavailable

21

SHAFT, STEERING LEVERS, 16.96

$

$

Not available

22

WELD, STOP BAR - BLACK

$

$

Not available

23

Ferris 84013177

KIT, Handle, Left

Note: (Includes items #3, 8, and 18.)

$

$

Currently unavailable

24

Ferris 84013178

KIT, Handle, Right

Note: (Includes items #3, 8, and 18.)

$

$

Currently unavailable

25

Ferris 84013090

MOUNT

Note: (Includes items # 13 and 17.)

$

$

Currently unavailable
