59027 - Toro 36" Snow Blade (SN: 008000001 - 008999999) (1969) 7 H.P. TRACTOR SNOW BLADE 36" (MODEL NO. 59027) Parts Diagram

36" Snow Blade

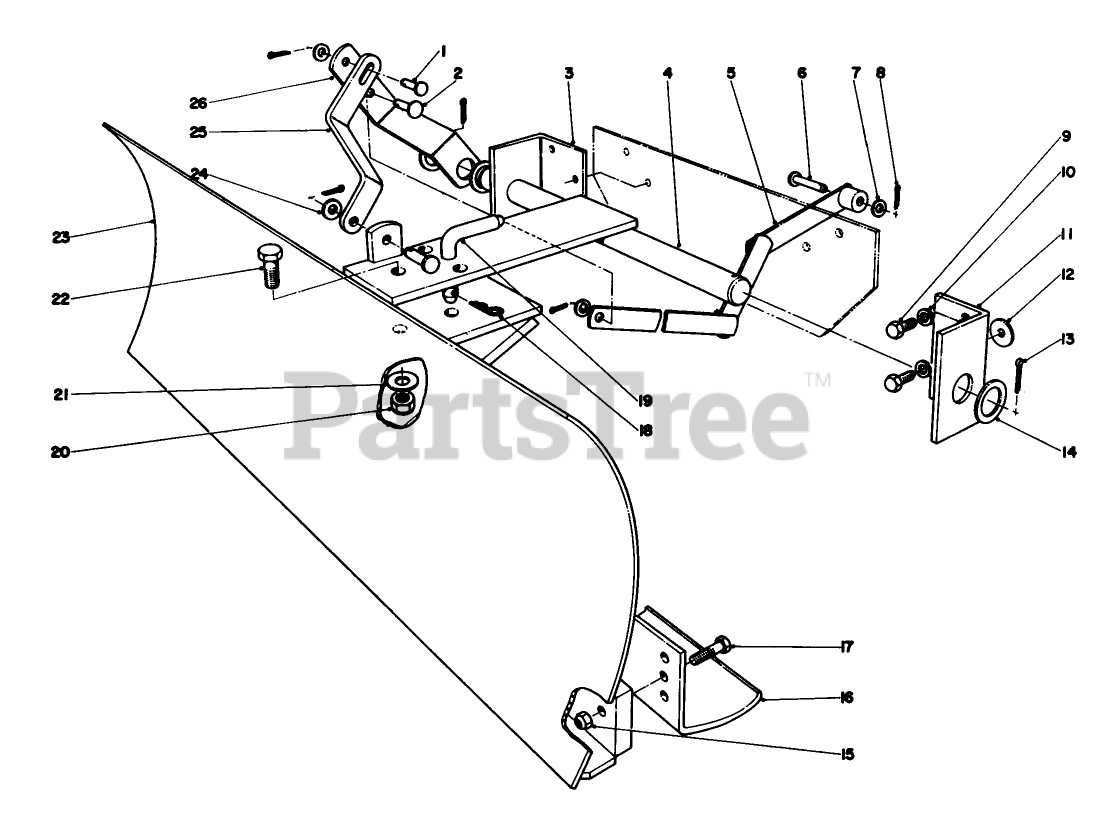

7 H.P. TRACTOR SNOW BLADE 36" (MODEL NO. 59027) Parts Diagram

  • Title

1

Toro 7-0511

Pin
(Superseded to 283-2)

$13.99

$

In Stock, only 3 left!

0

2

Toro 7-0860

Pin

$

$

Currently unavailable

3

Toro 7-1025

Blade Bracket

$

$

Currently unavailable

4

Toro 7-3615

Blade Hitch

$

$

Currently unavailable

5

Toro 7-3612

Snow Blade Control Arm Assy.

$

$

Currently unavailable

6

Toro 7-0106

Pin

$

$

Currently unavailable

7

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 7-1024

Blade Bracket

$

$

Currently unavailable

12

Toro 7-0532

Washer

$

$

Currently unavailable

13

Toro 3272-52(S

Cotter Pin

$

$

Currently unavailable

14

Toro 7-0481

Washer

$

$

Currently unavailable

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

16

Toro 7-1023

Skid

$

$

Not available

17

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

19

Toro 7-1022

Pivot Pin

$

$

Currently unavailable

20

32152-3(s

Nut

$

$

Not available

21

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

23

Toro 7-1020

Blade Assembly

Note: Bumper must be removed when installing snow blade.

$

$

Currently unavailable

24

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

25

Toro 7-3617

Arm-Left

$

$

Currently unavailable

26

Toro 7-3616

Brace

$

$

Currently unavailable
