59032 - Toro 32" Snow Thrower Attachment (SN: 000000001 - 000999999) (1970) MOUNTING FRAME ASSEMBLY Parts Diagram

32" Snow Thrower Attachment

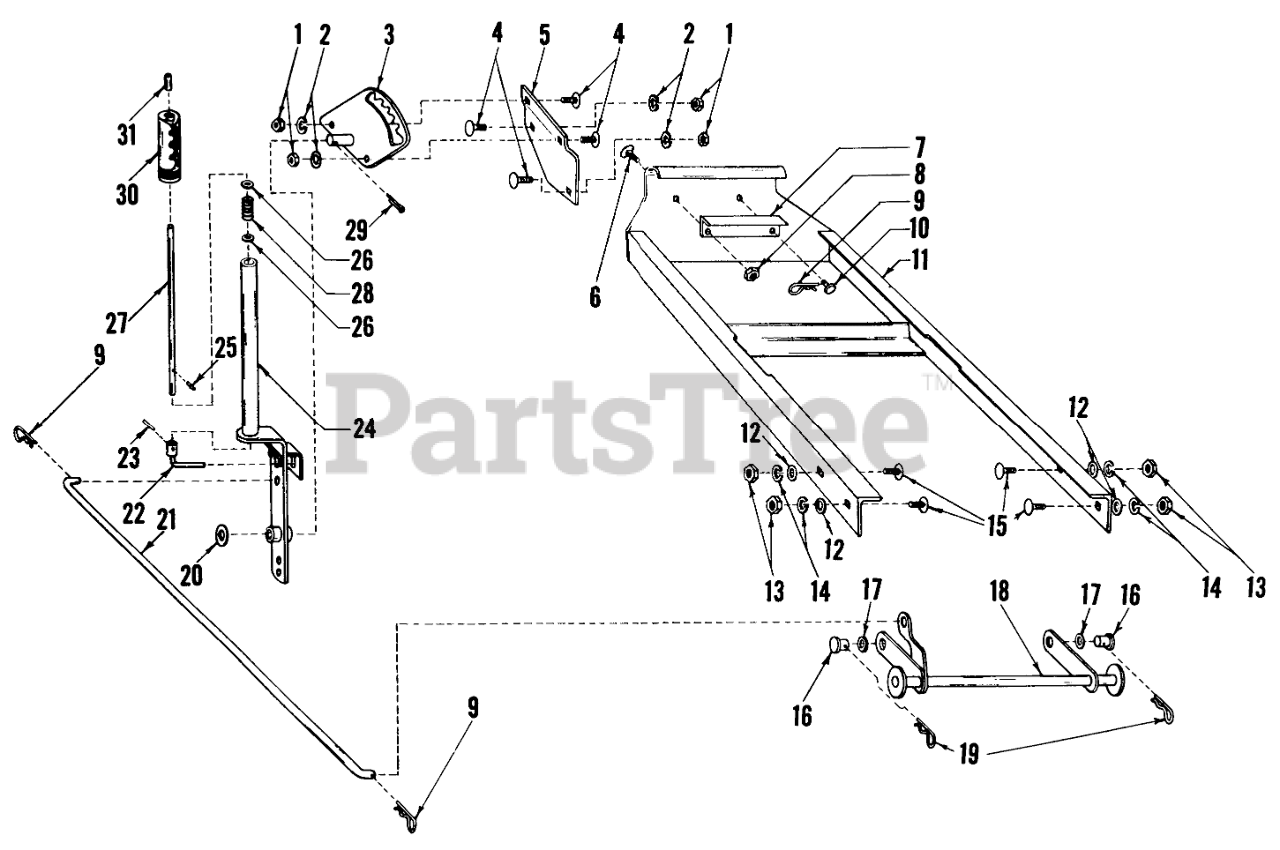

MOUNTING FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro T-1112-9

Nut

$

$

Currently unavailable

2

Toro T-1113-10

Washer

$

$

Currently unavailable

3

Toro 7-0512

Quadrant

Note: Obtain from your local Toro dealer.

$

$

Not available

4

Toro T-1111-233

Carriage Bolt

$

$

Currently unavailable

5

Toro T-4629

Lift Assembly Mounting Plate

$

$

Currently unavailable

6

Toro T-1111-159

Carriage Bolt

$

$

Currently unavailable

7

Toro T-4253

Latch

$

$

Currently unavailable

8

Toro T-1112-42

Nut

$

$

Currently unavailable

9

Toro T-2124-2

Hair Pin

$

$

Currently unavailable

10

Toro T-4202

Pin

$

$

Currently unavailable

11

Toro T-4247

Mounting Bracket

$

$

Currently unavailable

12

Toro T-1113-7

Washer

$

$

Currently unavailable

13

Toro T-1112-7

Nut

$

$

Currently unavailable

14

Toro T-1113-8

Washer

$

$

Currently unavailable

15

Toro T-1111-72

Carriage Bolt

$

$

Currently unavailable

16

Toro 7-4110

Pin

Note: Obtain from your local Toro dealer.

$

$

Not available

17

Toro T-1113-4

Washer

$

$

Currently unavailable

18

Toro T-4248

Lift Assembly

$

$

Currently unavailable

19

Toro 3290-250

PIN-COTTER

Note: Obtain from your local Toro dealer.

$6.49

$

Usually ships in 3-6 days

0

20

Toro 7-0131

Washer
(Superseded to 3256-27)

Note: Obtain from your local Toro dealer.

$2.99

$

In Stock, only 2 left!

0

21

Toro T-4628

Lift Rod

$

$

Currently unavailable

22

Toro 7-0516

Lift Lock

Note: Obtain from your local Toro dealer.

$

$

Currently unavailable

23

Toro 32121-50

PIN-SPRING

Note: Obtain from your local Toro dealer.

$3.49

$

In Stock, only 3 left!

0

24

Toro 7-0513

Lower Handle

Note: Obtain from your local Toro dealer.

$

$

Currently unavailable

25

Toro 32121-73

PIN-ROLL

Note: Obtain from your local Toro dealer.

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 7-0515

Lift Rod

Note: Obtain from your local Toro dealer.

$

$

Currently unavailable

28

Toro 7-0514

Spring

Note: Obtain from your local Toro dealer.

$

$

Not available

29

Toro 3272-11

PIN-COTTER

Note: Obtain from your local Toro dealer.

$1.49

$

In Stock, Qty 10

0

30

Toro 7-0510

Handle Grip

Note: Obtain from your local Toro dealer.

$

$

Currently unavailable

31

Toro 7-0508

Cap

Note: Obtain from your local Toro dealer.

$

$

Currently unavailable
