59032 - Toro 32" Snow Thrower Attachment (SN: 008000001 - 008999999) (1968) SNOW CHUTE AND DRIVE SHAFT ASSEMBLY Parts Diagram

32" Snow Thrower Attachment

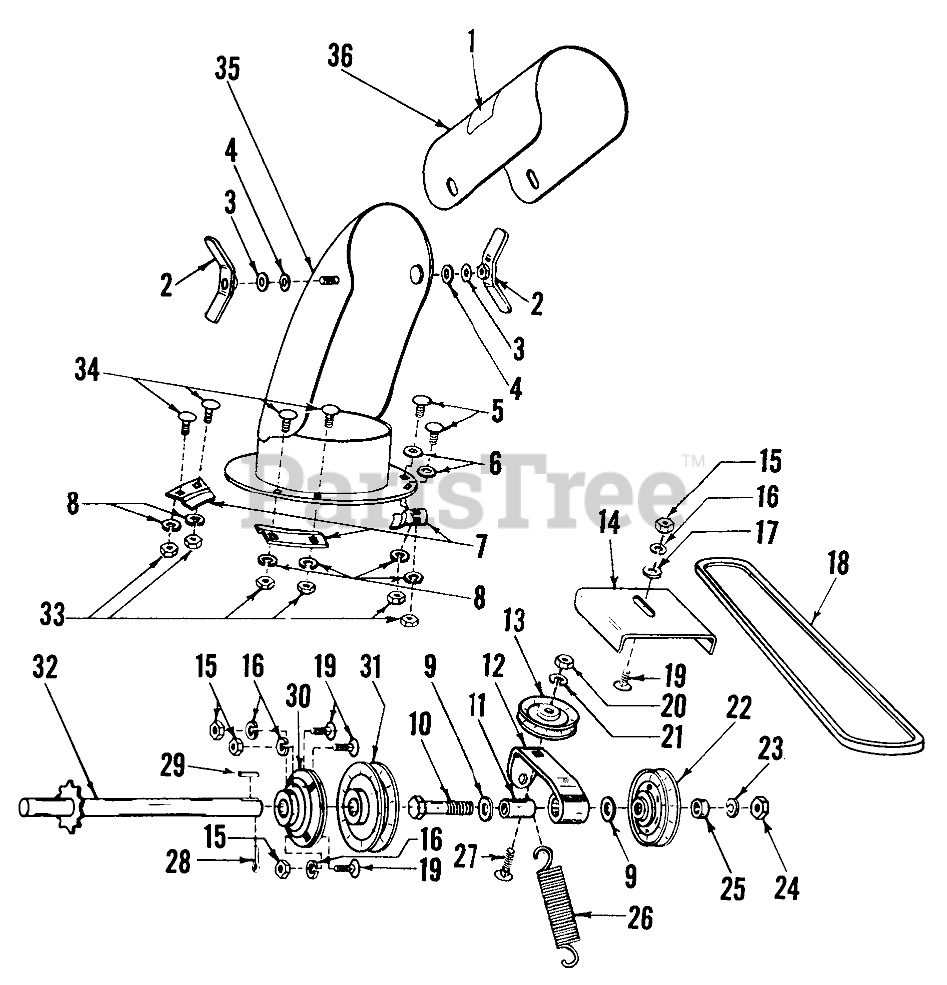

SNOW CHUTE AND DRIVE SHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro 5-4580

Decal Caution

$

$

Currently unavailable

2

Toro T-4133

Wing Nut

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Toro T-1111-173

Carriage Bolt

$

$

Currently unavailable

6

Toro T-1113-7

Washer

$

$

Currently unavailable

7

Toro T-4002

Retainer Clip

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro T-1113-1

Washer

$

$

Currently unavailable

10

Toro T-1111-137

Capscrew

$

$

Currently unavailable

11

Toro T-4251

Spacer Bushing

$

$

Currently unavailable

12

Toro T-4249

Idler Arm, Welded Assembly

$

$

Currently unavailable

13

Toro T-2426-8

Idler Pulley

$

$

Currently unavailable

14

Toro T-4256

Belt Idler Guard

$

$

Currently unavailable

15

$

$

Currently unavailable

16

$

$

Currently unavailable

17

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Toro T-1111-159

Carriage Bolt

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Toro T-1113-8

Washer

$

$

Currently unavailable

22

Toro T-2426-9

Idler Pulley

$

$

Currently unavailable

23

Toro T-1113-2

Lockwasher

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Toro T-4252

Spacer

$

$

Currently unavailable

26

Toro T-3018

Spring Belt Tension

$

$

Currently unavailable

27

Toro T-1111-202

Carriage Bolt

$

$

Currently unavailable

28

Toro T-1124-8

Cotter Pin

$

$

Currently unavailable

$

$

Currently unavailable

30

Toro T-1181-14

Bearing w/Setscrew

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Toro T-4250

Chain Drive Shaft

$

$

Currently unavailable

$

$

Currently unavailable

34

Toro T-1111-163

Carriage Bolt

$

$

Currently unavailable

35

Toro T-4224

Snow Chute

$

$

Currently unavailable
