59050 - Toro Side Bag Kit for Front Engine Rider (SN: 001000001 - 001999999) (1971) FRONT ENGINE RIDER GRASS CATCHER Parts Diagram

Side Bag Kit for Front Engine Rider

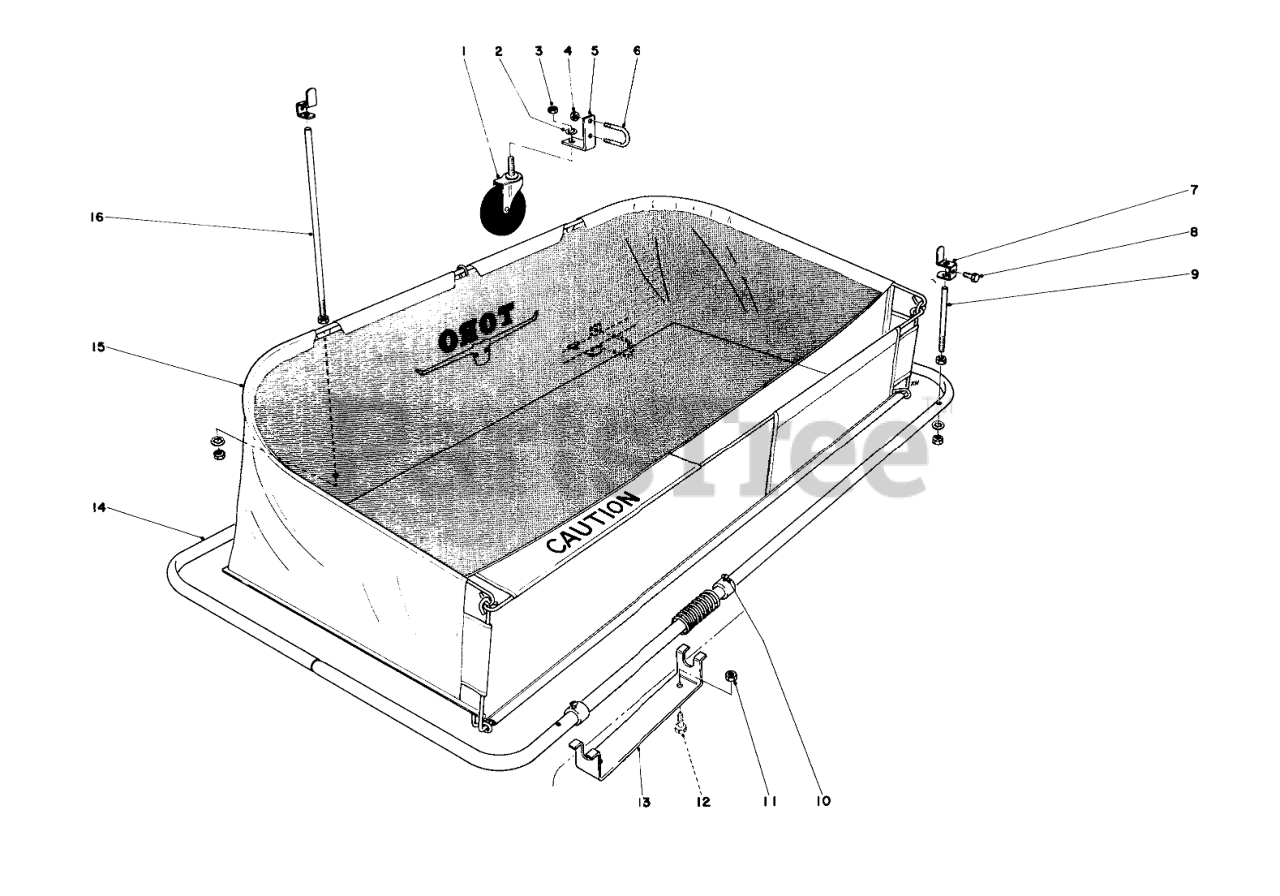

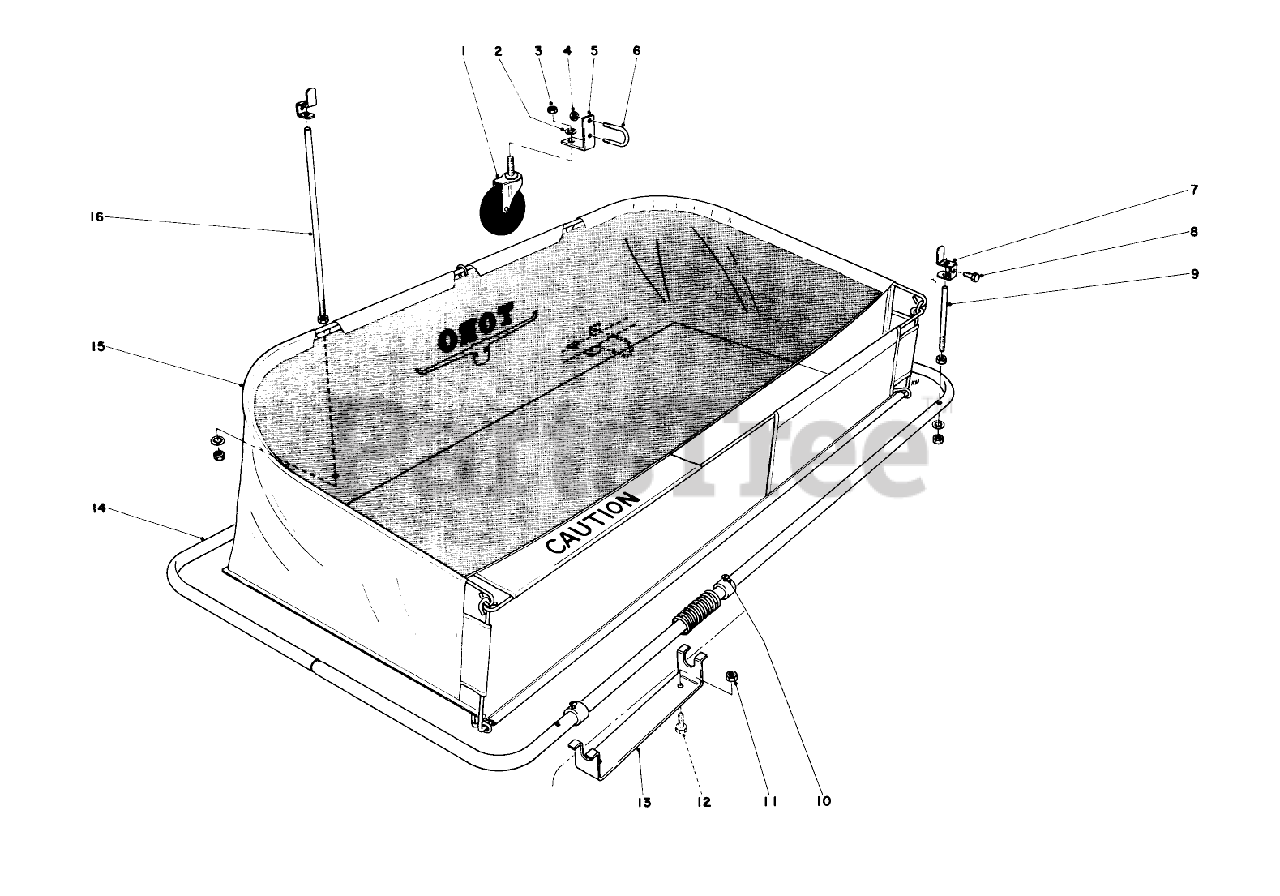

FRONT ENGINE RIDER GRASS CATCHER Parts Diagram

  • Title

1

Toro 11-9810

Caster

$

$

Currently unavailable

2

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

3

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

4

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

5

Toro 11-7570

Bracket, Caster

$

$

Currently unavailable

6

Toro 298-12

U Bolt

$

$

Currently unavailable

7

Toro 11-7560

Hook

$

$

Currently unavailable

8

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

9

Toro 11-7540

Stud, Short

$

$

Currently unavailable

10

Toro 3251-6

Screw, Machine

$

$

Currently unavailable

11

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 11-7580

Bracket, Deck Mounting

$

$

Currently unavailable

14

Toro 11-7530

Frame

$

$

Currently unavailable

15

Toro 11-7510

Basket

$

$

Currently unavailable

16

Toro 11-7550

Stud, Long

$

$

Currently unavailable
