Parts Home > Toro > Accessories & Attachments > 59065 - Toro 26" Trailer Sweeper (SN: 002000001 - 002999999) (1972) > HAMPER ASSEMBLY

59065 - Toro 26" Trailer Sweeper (SN: 002000001 - 002999999) (1972)

26" Trailer Sweeper

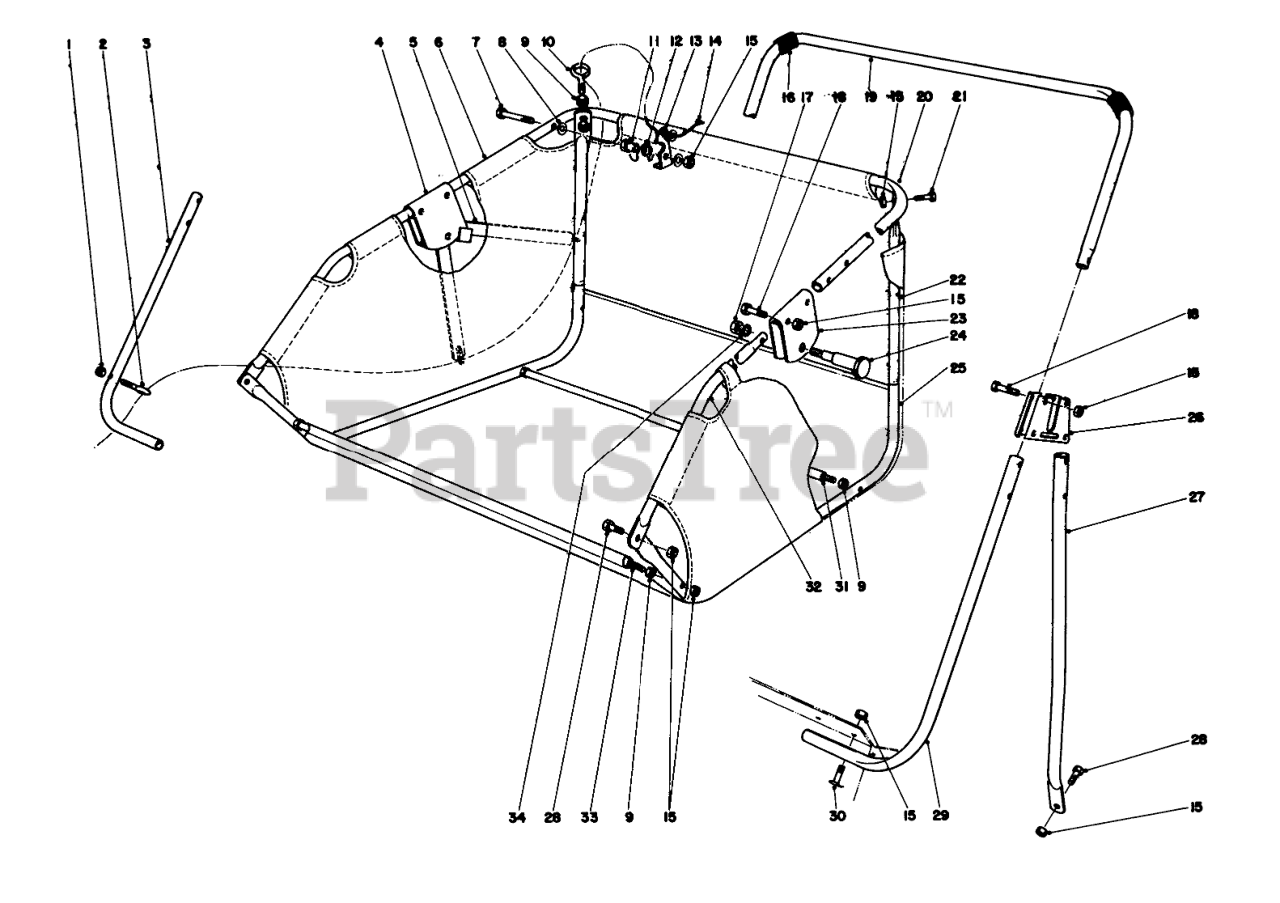

59065 - Toro 26" Trailer Sweeper (SN: 002000001 - 002999999) (1972) > Parts Diagrams (2) > HAMPER ASSEMBLY

  • Title
32127-12

1

Locknut

Part# 32127-12 (Superseded to 3296-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.40

17-2560

2

Eye bolt

Part# 17-2560

OEM Warranty Repair Part for Toro

Currently unavailable

17-2980

3

Support tube, R. H.

Part# 17-2980

OEM Warranty Repair Part for Toro

Currently unavailable

17-3190

4

Handle bracket

Part# 17-3190

OEM Warranty Repair Part for Toro

Currently unavailable

17-3200

5

Dump lever

Part# 17-3200

OEM Warranty Repair Part for Toro

Currently unavailable

17-3280

6

Hamper

Part# 17-3280

OEM Warranty Repair Part for Toro

Currently unavailable

322-7

7

SCREW-HH

Part# 322-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

3256-2

8

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.44

3217-6

9

NUT-HEX

Part# 3217-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

17-2570

10

Eye bolt

Part# 17-2570

OEM Warranty Repair Part for Toro

Currently unavailable

17-2540

11

Pilot nut

Part# 17-2540

OEM Warranty Repair Part for Toro

Currently unavailable

17-3320

12

Spring

Part# 17-3320

OEM Warranty Repair Part for Toro

Currently unavailable

17-3310

13

Latch

Part# 17-3310

OEM Warranty Repair Part for Toro

Currently unavailable

17-2920

14

Dump rope

Part# 17-2920

OEM Warranty Repair Part for Toro

Currently unavailable

32146-5

15

Nut

Part# 32146-5 (Superseded to 32153-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.99

17-3330

16

Rubber protector

Part# 17-3330

OEM Warranty Repair Part for Toro

Currently unavailable

3219-3

17

NUT-HEX

Part# 3219-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.28

322-6

18

SCREW-HH

Part# 322-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.00

17-2800

19

Top tube

Part# 17-2800

OEM Warranty Repair Part for Toro

Currently unavailable

17-3000

20

Top Hamper tube

Part# 17-3000

OEM Warranty Repair Part for Toro

Currently unavailable

322-5

21

SCREW-HH

Part# 322-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.40

17-3040

22

Corner support tube

Part# 17-3040

OEM Warranty Repair Part for Toro

Currently unavailable

17-2770

23

Pivot bracket

Part# 17-2770

OEM Warranty Repair Part for Toro

Currently unavailable

17-2780

24

Pivot pin

Part# 17-2780

OEM Warranty Repair Part for Toro

Currently unavailable

17-3050

25

Bottom tube

Part# 17-3050

OEM Warranty Repair Part for Toro

Currently unavailable

17-2760

26

Frame pivot bracket

Part# 17-2760

OEM Warranty Repair Part for Toro

Currently unavailable

17-3070

27

Support, L. H.

Part# 17-3070

OEM Warranty Repair Part for Toro

Currently unavailable

17-3060

Support, R. H.

Part# 17-3060

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable

322-1

28

SCREW-HH

Part# 322-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.54

17-2990

29

Support tube, L. H.

Part# 17-2990

OEM Warranty Repair Part for Toro

Currently unavailable

17-2600

30

Tube bolt

Part# 17-2600

OEM Warranty Repair Part for Toro

Currently unavailable

17-3110

31

Spreader rod

Part# 17-3110

OEM Warranty Repair Part for Toro

Currently unavailable

17-3030

32

Side tube

Part# 17-3030

OEM Warranty Repair Part for Toro

Currently unavailable

17-2830

33

Tie rod

Part# 17-2830

OEM Warranty Repair Part for Toro

Currently unavailable

3253-21

34

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17
