591 - Shindaiwa Chainsaw (SN: C69115001001 - C69115999999) RECOIL STARTER S/N C69115001001 - C69115002105 Parts Diagram

Chainsaw

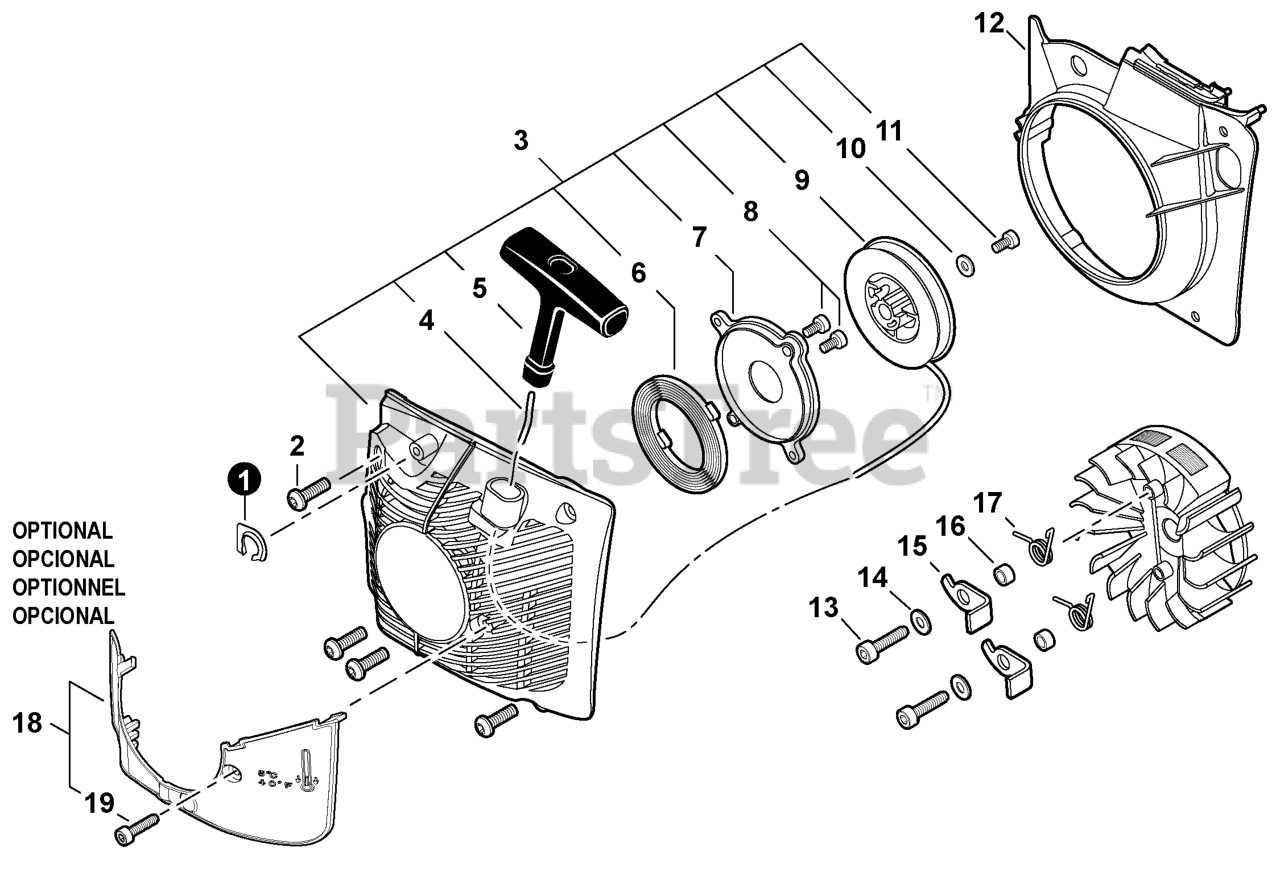

RECOIL STARTER S/N C69115001001 - C69115002105 Parts Diagram

  • Title

1

Echo V150003800

PLATE, EYE

$3.49

$

Usually ships in 2-4 days

0

2

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

3

Echo P021041842

STARTER ASSY, RECOIL
(Superseded to P200001020)

Note: Includes Items 4-11

$125.99

$

Usually ships in 2-4 days

0

4

Echo A509000460

ROPE, STARTER 4x950

$10.99

$

Usually ships in 2-4 days

0

5

Echo A511000072

GRIP, STARTER

$10.99

$

In Stock, only 2 left!

0

6

Echo 17722035430

SPRING, RECOIL

$15.99

$

In Stock, only 2 left!

0

7

Echo A503000032

PLATE, STARTER

$7.49

$

In Stock, only 1 left!

0

8

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

9

Echo A506000112

REEL, ROPE

$14.99

$

In Stock, only 2 left!

0

10

Echo 17721402830

WASHER 5.2x16x1.0

$0.99

$

In Stock, only 2 left!

0

11

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

12

Echo A172000842

COVER, FAN
(Superseded to P200001010)

$112.99

$

In Stock, only 2 left!

0

13

Echo V835000000

BOLT, TORX 5x16

$1.99

$

In Stock, Qty 19

0

14

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 17721819830

PAWL, STARTER

$5.49

$

In Stock, only 4 left!

0

16

Echo 17724704630

SPACER 5.2x8x2.1

$2.49

$

In Stock, only 4 left!

0

17

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 4 left!

0

18

Echo P021045730

SHIELD KIT - SNOW

Note: Includes Item 19

$14.99

$

Usually ships in 2-4 days

0

19

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0
