59147 - Toro 38" Side-Discharge Mower Deck for Model 59365 Tractor (SN: 006000001 - 006999999) (1986) PEERLESS TRANSAXLE MODEL 801E Parts Diagram

38" Side-Discharge Mower Deck for Model 59365 Tractor

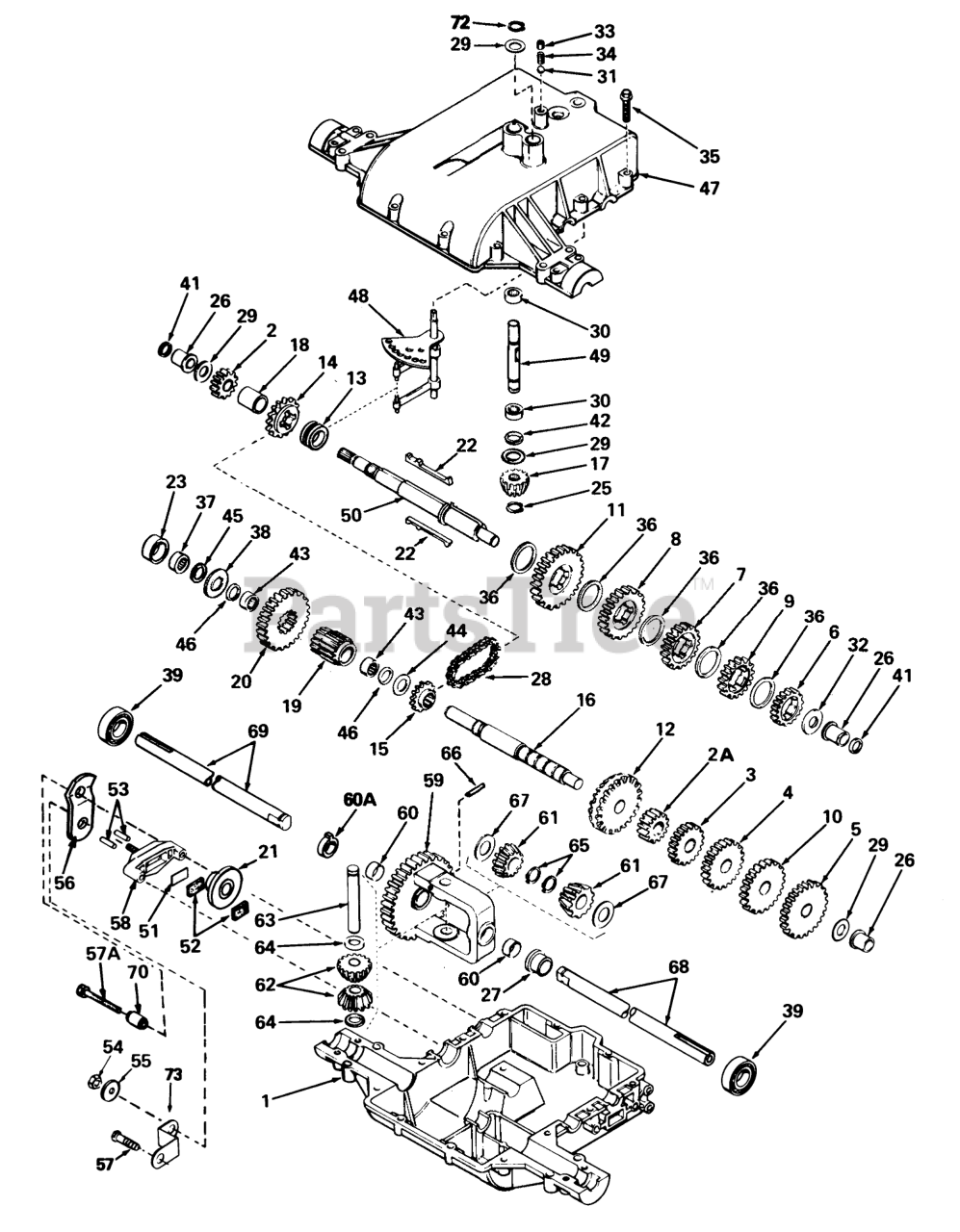

PEERLESS TRANSAXLE MODEL 801E Parts Diagram

  • Title
1

Toro 770071A

Case-transaxle

$

$

Currently unavailable

2

Toro 778136

Gear-Spur 15 Teeth

$

$

Currently unavailable

2A

Toro 778145

Gear-Spur, 12 Teeth

$

$

Currently unavailable

3

Toro 778126A

Gear-Spur, 20 Teeth

$

$

Currently unavailable

4

Toro 778127A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

5

Toro 778129A

Gear-Spur (30 teeth)

$

$

Currently unavailable

6

Toro 778121A

Gear-Spur 20 teeth

$

$

Currently unavailable

7

Toro 778123A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

8

Toro 778124A

Gear-Spur, 30 Teeth

$

$

Currently unavailable

9

Toro 778122A

Gear-Spur (22 teeth)

$

$

Currently unavailable

10

Toro 778128A

Gear-Spur (28 teeth)

$

$

Currently unavailable

11

Toro 778146A

Gear-Spur, 37 Teeth

$

$

Currently unavailable

12

Toro 778137A

Gear-Bevel (42Teeth)

$

$

Currently unavailable

13

Toro 784266

Collar-Shift

$

$

Currently unavailable

14

Toro 786083

Sprocket-18 Teeth

$

$

Currently unavailable

15

Toro 786082

Sprocket-9 Teeth

$

$

Currently unavailable

16

Toro 776181

Shaft-Counter

$

$

Currently unavailable

17

Toro 778113A

Bevel Pinion-Input

$

$

Currently unavailable

18

Toro 786074

Spacer

$

$

Currently unavailable

19

Toro 778138

Pinion-Output

$

$

Currently unavailable

20

Toro 778139

Gear-Output

$

$

Currently unavailable

21

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Toro 786075

Spacer

$

$

Currently unavailable

25

Toro 788040

Ring-Retainer

$

$

Currently unavailable

26

Toro 780105A

Bushing-Flange

$

$

Currently unavailable

27

Toro 780118A

Bushing-Flanged

$

$

Currently unavailable

28

Toro 786081

Chain-Roller #41

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

30

Toro 780086

Bearing-Needle

$

$

Currently unavailable

31

Toro 792077

Ball-Steel

$

$

Currently unavailable

32

Toro 780109

Washer

$

$

Currently unavailable

33

Toro 792078

Screw-Set

$

$

Currently unavailable

34

Toro 792079

Spring

$

$

Currently unavailable

35

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

36

Toro 780108

Washer

$

$

Currently unavailable

37

Toro 780111

Bearing-Needle

$

$

Currently unavailable

38

Toro 780113

Washer-Flat

$

$

Currently unavailable

39

Toro 780119

Bearing-Ball

$

$

Currently unavailable

41

Toro 788051

Ring-Square Cut

$

$

Currently unavailable

42

Toro 792001

O Ring

$

$

Currently unavailable

43

Toro 780112

Bearing-Needle

$

$

Currently unavailable

44

Toro 780114

Washer-Flat

$

$

Currently unavailable

45

Toro 788052

Ring-Square Cut

$

$

Currently unavailable

46

Toro 788053

Ring-Square Cut

$

$

Currently unavailable

47

Toro 772078A

Cover-Transaxle

$

$

Currently unavailable

48

Toro 784290

Rod & Fork Assembly

$

$

Currently unavailable

49

Toro 776182A

Shaft-Input

$

$

Currently unavailable

50

Toro 776183A

Shaft-Brake

$

$

Currently unavailable

51

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

52

Toro 790006

Brake Pad

$

$

Currently unavailable

53

Toro 786026

Dowel Pin

$

$

Currently unavailable

54

Toro 792075

Locknut

$

$

Currently unavailable

55

Toro 792076

Washer

$

$

Currently unavailable

56

Toro 790022

Lever-Brake

$

$

Currently unavailable

57

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

57A

Toro 792085

Screw-Hex. Flange

$

$

Currently unavailable

58

Toro 790020

Holder-Brake Pad

$

$

Currently unavailable

59

Toro 778053A

Gear Assy., Differential (Incl. 2 of Ref. #60)

$

$

Currently unavailable

60

Toro 780064

Bushing

$

$

Currently unavailable

60A

Toro 780120

Bushing

$

$

Currently unavailable

61

Toro 778067

Bevel Gear

$

$

Currently unavailable

62

Toro 778068

Gear Pinion

$

$

Currently unavailable

63

Toro 786034

Drive Pin

$

$

Currently unavailable

64

Toro 780065

Thrust Washer

$

$

Currently unavailable

65

Toro 792018

Ring-Snap

$

$

Currently unavailable

66

Toro 792040

Pin-Roll

$

$

Currently unavailable

67

Toro 780001

Washer

$

$

Currently unavailable

68

Toro 774592

Axle (14-7/8" long)

$

$

Currently unavailable

69

Toro 774591

Axle (13" long)

$

$

Currently unavailable

70

Toro 786067

Spacer

$

$

Currently unavailable

72

Toro 792035

Ring-Snap

$

$

Currently unavailable

73

Toro 786109

Bracket-Brake Lever

$

$

Currently unavailable
