59176 - Toro 32" Easy Empty Bagger (1990) EASY EMPTY GRASS CATCHER VEHICLE IDENTIFICATION NUMBER 59176 Parts Diagram

32" Easy Empty Bagger

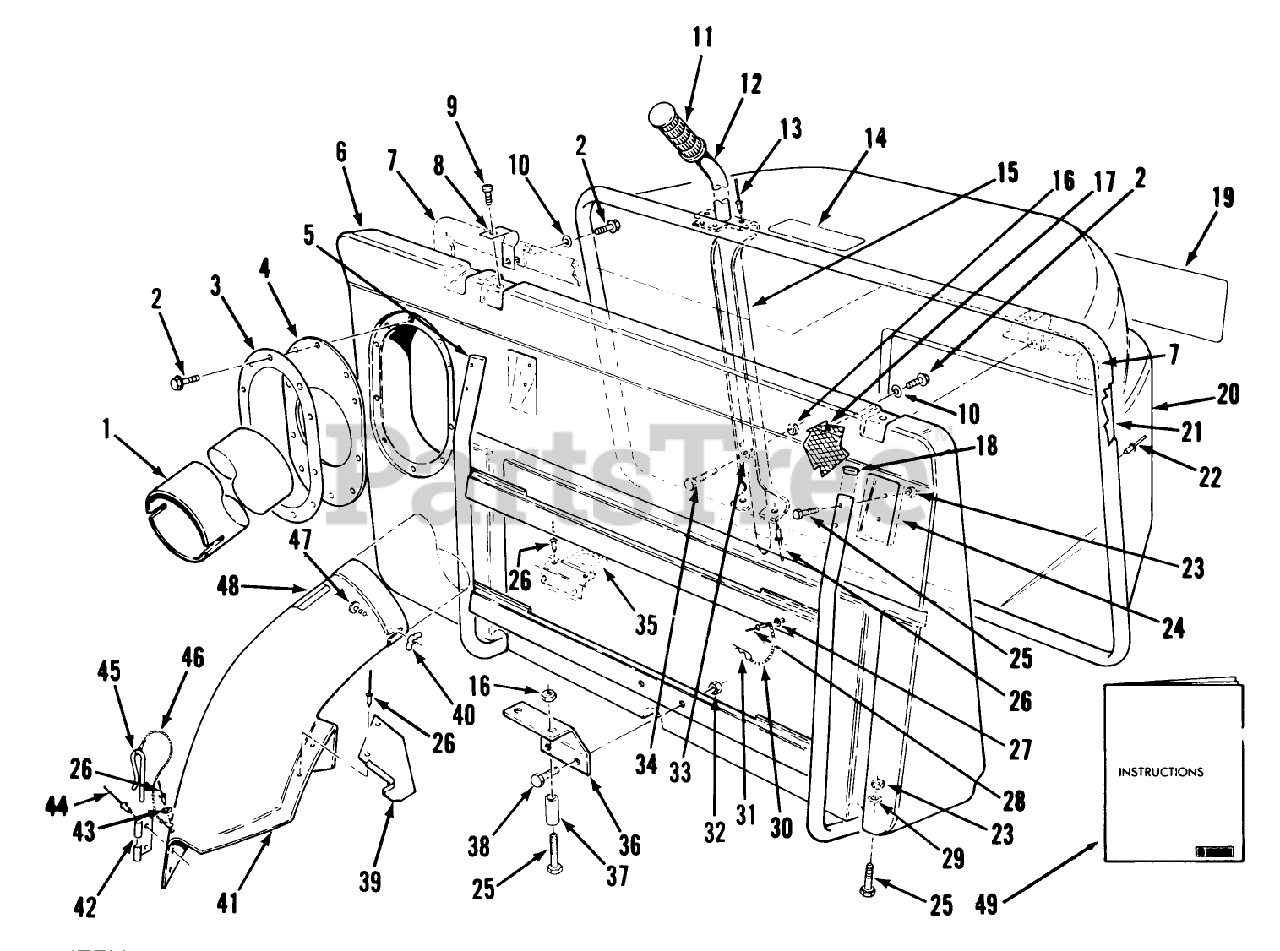

EASY EMPTY GRASS CATCHER VEHICLE IDENTIFICATION NUMBER 59176 Parts Diagram

  • Title

1

Toro 47-7210

TUBE(ROUND&LONG)

$

$

Not available

2

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 16

0

3

Toro 28-7760

RING-RETAINING

$37.99

$

Usually ships in 3-6 days

0

4

Toro 28-7770

RING-RETAINER, RUBBER

$134.99

$

Usually ships in 3-6 days

0

5

Toro 74-3320

Frame
(Superseded to 74-3320-03)

$434.99

$

Usually ships in 3-6 days

0

6

Toro 72-2510

BAG-FRONT

$

$

Not available

7

Toro 72-2640

SEAL-BAG

$

$

Not available

8

Toro 72-2540

Bracket-Hinge
(Superseded to 72-2540-03)

$

$

Not available

9

Toro 3274-68

SCREW-HSBH
(Superseded to 3274-31)

$1.49

$

In Stock, only 3 left!

0

10

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 3 left!

0

11

Toro 235-21

GRIP-HANDLE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 72-2660

HANDLE-DUMP

$

$

Not available

13

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

14

Toro 55-7270

Decal Warning
(Superseded to 46-2850)

$

$

Not available

15

Toro 72-2630

Channel-Dump Handle
(Superseded to 72-2630-03)

$87.99

$

Usually ships in 3-6 days

0

16

Toro 329642

Nut

$

$

Currently unavailable

17

Toro 28-7840

Screen Bag
(Superseded to 28-7840-03)

$225.99

$

Usually ships in 3-6 days

0

18

Toro 2410-70

PLUG

$2.99

$

Usually ships in 3-6 days

0

19

Toro 72-2690

DECAL - TORO

$

$

Not available

20

Toro 72-2520

BASKET-GRASS

$681.99

$

Usually ships in 3-6 days

0

21

Toro 72-2650

Frame-Grass Basket
(Superseded to 72-2650-03)

$136.99

$

Usually ships in 3-6 days

0

22

Toro 32964

Nut

$

$

Currently unavailable

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 72-2620

Plate-Backup
(Superseded to 72-2620-03)

$

$

Not available

25

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

27

Toro 5-1254

WASHER

$

$

Not available

28

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

29

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0

30

Toro 2830-10

10 LINK CHAIN W/O HOOK

$

$

Not available

31

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 72-2550

GUIDE-HANDLE, DUMP

$

$

Not available

34

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 72-2530

Latch
(Superseded to 72-2530-03)

$

$

Not available

36

Toro 72-2560

Bracket-Hitch
(Superseded to 72-2560-03)

$

$

Not available

37

Toro 63-7270

Spacer
(Superseded to 63-7270-03)

$

$

Not available

38

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 33-2090

CHUTE SUPT BRKT

$36.99

$

Usually ships in 3-6 days

0

40

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

41

Toro 28-8060

Chute Assembly (includes Reference #26, 39-48)

$

$

Not available

42

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$24.99

$

Usually ships in 3-6 days

0

43

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

44

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, Qty 6

0

45

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

In Stock, only 2 left!

0

46

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

47

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

48

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

49

Toro 3313-792

59176/78 EASY-EMPTY

$3.23

$

Usually ships in 3-6 days

0
