59183 - Toro Recycler II Update Kit Recycler Assembly Parts Diagram

Recycler II Update Kit

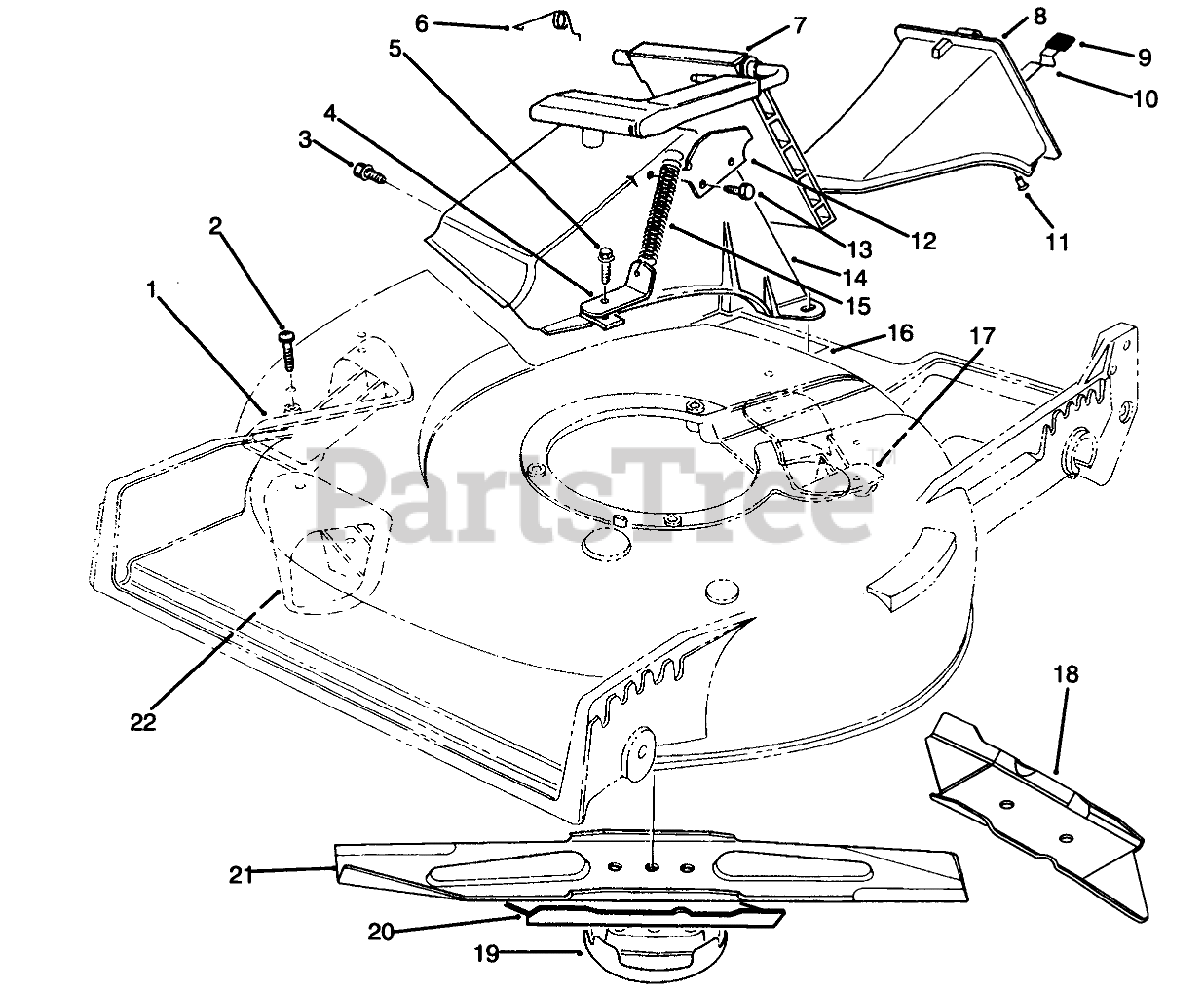

Recycler Assembly Parts Diagram

  • Title

1

Toro 92-1730

KICKER-RH

$25.99

$

Usually ships in 3-6 days

0

2

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 12

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 2 left!

0

4

Toro 71-9350

BRACKET-SPRING

$16.99

$

Usually ships in 3-6 days

0

5

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

6

Toro 80-3770

RETAINER-DOOR

$7.99

$

In Stock, only 2 left!

0

7

Toro 77-0200

DISCONTINUED

$

$

Not available

8

Toro 77-0500

DISCHARGE PLUG ASM

$81.99

$

Usually ships in 3-6 days

0

9

Toro 76-4650

GRIP-LATCH

$6.49

$

Usually ships in 3-6 days

0

10

Toro 76-4640

LATCH-PLUG, DISCHARGE

$

$

Not available

11

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

15

Toro 76-4660

SPRING-DOOR

$12.99

$

In Stock, only 2 left!

0

16

Toro 92-8076

DISCONTINUED

$

$

Not available

17

Toro 92-1750

KICKER-REAR

$24.99

$

In Stock, only 2 left!

0

Toro 92-1660

KICKER-REAR

Note: Not illustrated

$

$

Not available

18

Toro 92-1599

See Supercession: 92-1599-03
(Superseded to 92-1599-03)

$94.99

$

Usually ships in 3-6 days

0

19

Toro 80-2770

CUP-SCALP, ANTI

$18.99

$

In Stock, only 2 left!

0

20

Toro 91-2255

See Supercession: 91-2255-03
(Superseded to 91-2255-03)

$94.99

$

In Stock, only 4 left!

0

21

Toro 14-9419

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 3 left!

0

22

Toro 92-1720

KICKER-FRONT

$25.99

$

Usually ships in 3-6 days

0
