59189 - Toro Side-Discharge Kit for Recycler Mower DISCHARGE TUNNEL & CHUTE ASSEMBLY Parts Diagram

Side-Discharge Kit for Recycler Mower

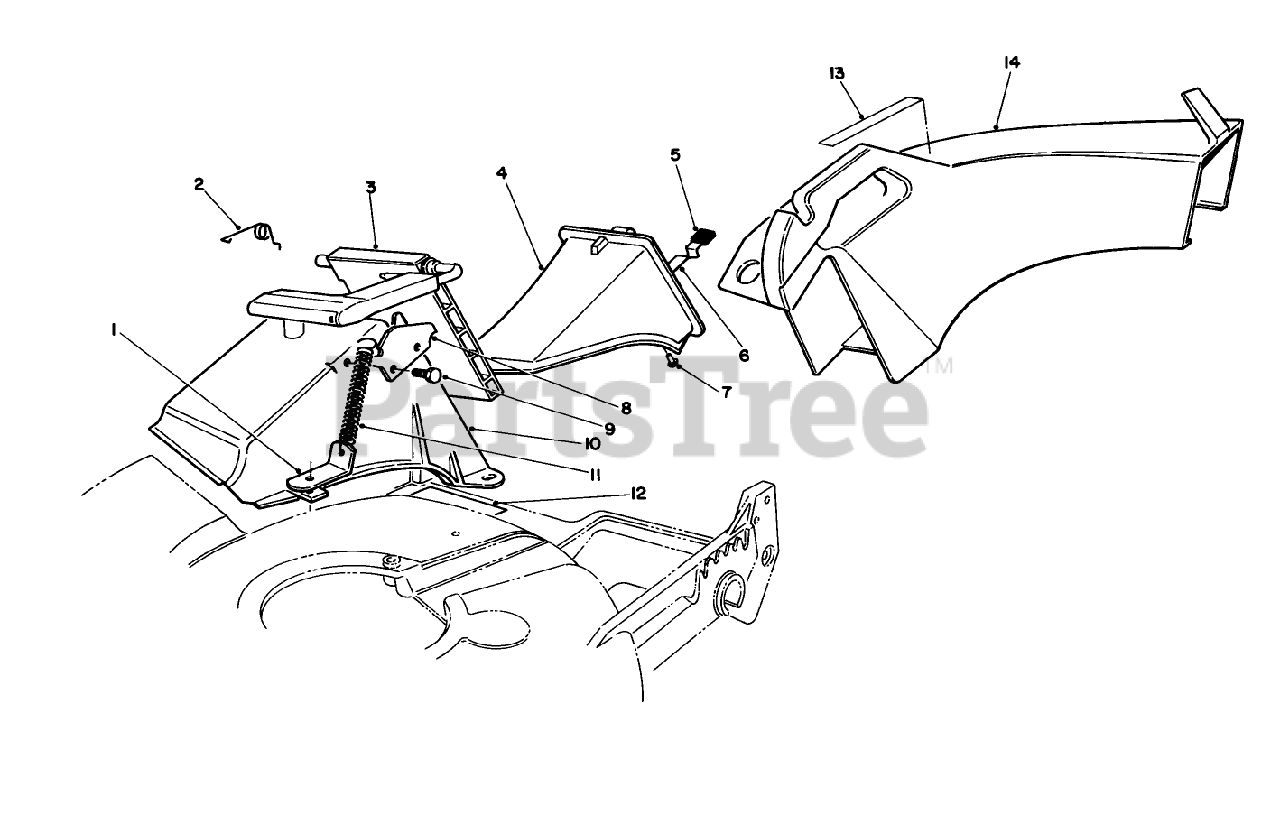

DISCHARGE TUNNEL & CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

2

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 1 left!

0

3

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

4

Toro 77-0500

Plug Assembly (Incl. Ref. #5-7)

$68.99

$

In Stock, only 1 left!

0

5

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

6

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

9

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

10

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

11

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 6

0

12

Toro 85-7250

DECAL - CAUTION

$

$

Not available

13

Toro 88-3320

DECAL - WARNING

$11.99

$

Usually ships in 3-6 days

0

14

Toro 59168

Chute-Discharge

$

$

Currently unavailable
