592060 - Briggs & Stratton Short Block Assembly 592060 Parts Diagram

Short Block Assembly

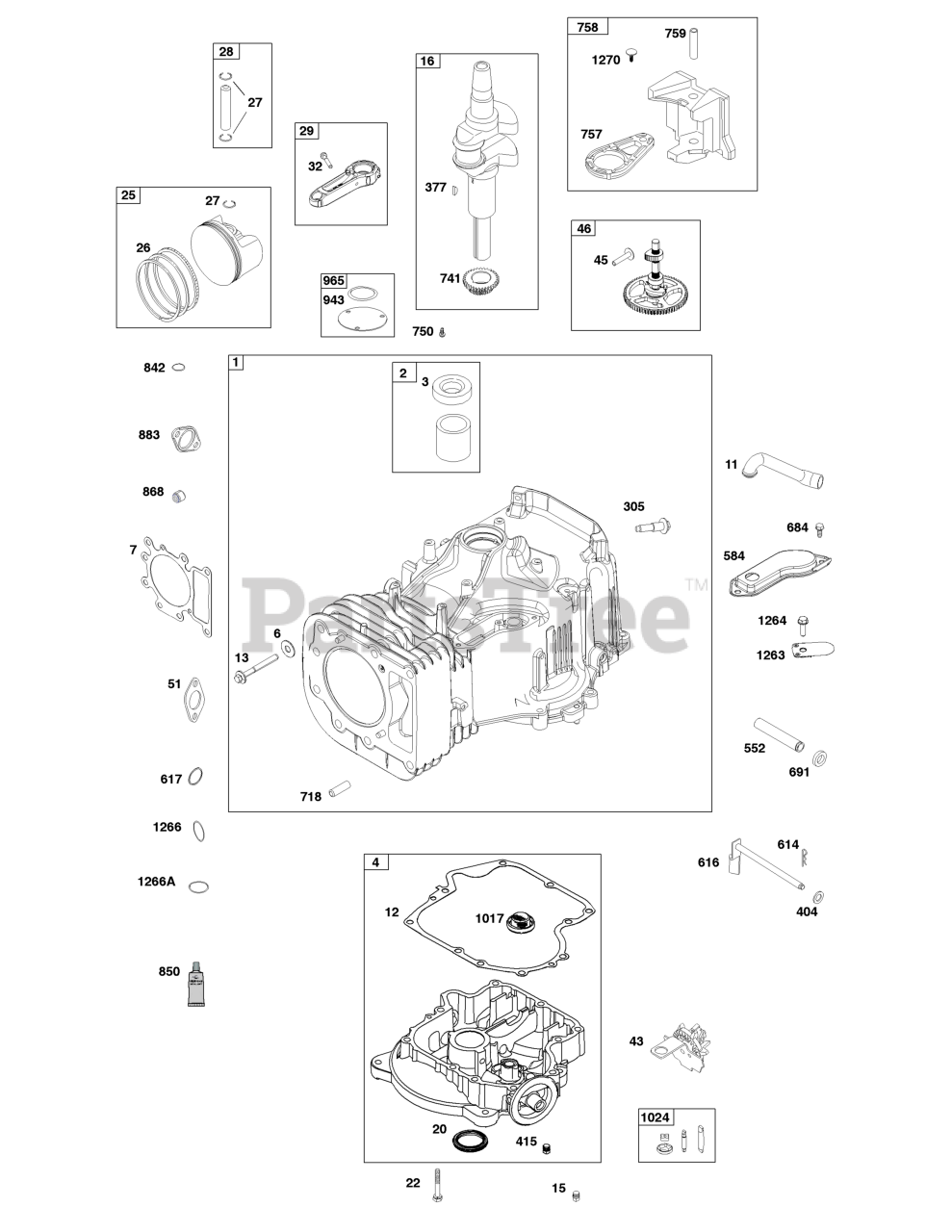

592060 Parts Diagram

  • Title

1

Briggs & Stratton 796010

CYLINDER ASSEMBLY

$524.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 592849

SUMP, Engine

$250.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 690310

Washer

Note: (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 796584

GASKET, Cylinder Head

$19.99

$

In Stock, Qty 16

0

11

Briggs & Stratton 794683

TUBE, Breather

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 13

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 17

0

16

Briggs & Stratton 596007

CRANKSHAFT

$451.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 594435

PISTON ASSEMBLY

$95.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 594436

PISTON ASSEMBLY

Note: (.020" Oversize)

$146.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 594437

RING SET

$52.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 594438

RING SET

Note: (.020" Oversize)

$64.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

LOCK, Piston Pin

$4.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 594439

PIN, Piston

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 794571

ROD, Connecting

$78.99

$

In Stock, only 4 left!

0

32

Briggs & Stratton 791118

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, Qty 10

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$37.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 597221

CAMSHAFT

$139.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

305

Briggs & Stratton 596718

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 17

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, only 3 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

In Stock, only 1 left!

0

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 794682

COVER, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 4 left!

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 12

0

684

Briggs & Stratton 697157

SCREW

Note: (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 11

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 697128

GEAR, Timing

$20.99

$

In Stock, Qty 6

0

750

Briggs & Stratton 790832

SCREW

Note: (Oil Pump Cover)

$4.49

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 793242

LINK, Counterweight

$20.99

$

In Stock, only 2 left!

0

758

Briggs & Stratton 594443

COUNTERWEIGHT

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

PIN, Counterweight

$5.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 12

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 6

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, only 3 left!

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$13.99

$

In Stock, only 1 left!

0

1017

Briggs & Stratton 796981

SCREEN, Oil Pump

$16.99

$

In Stock, only 1 left!

0

1024

Briggs & Stratton 794644

SHAFT, Pump

$35.99

$

In Stock, only 2 left!

0

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, only 1 left!

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, only 2 left!

0

1270

Briggs & Stratton 793243

PLUG, AVS Counterweight

$4.99

$

In Stock, Qty 11

0
