59260 - Toro Replacement Engine, 2-Cycle (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Replacement Engine, 2-Cycle

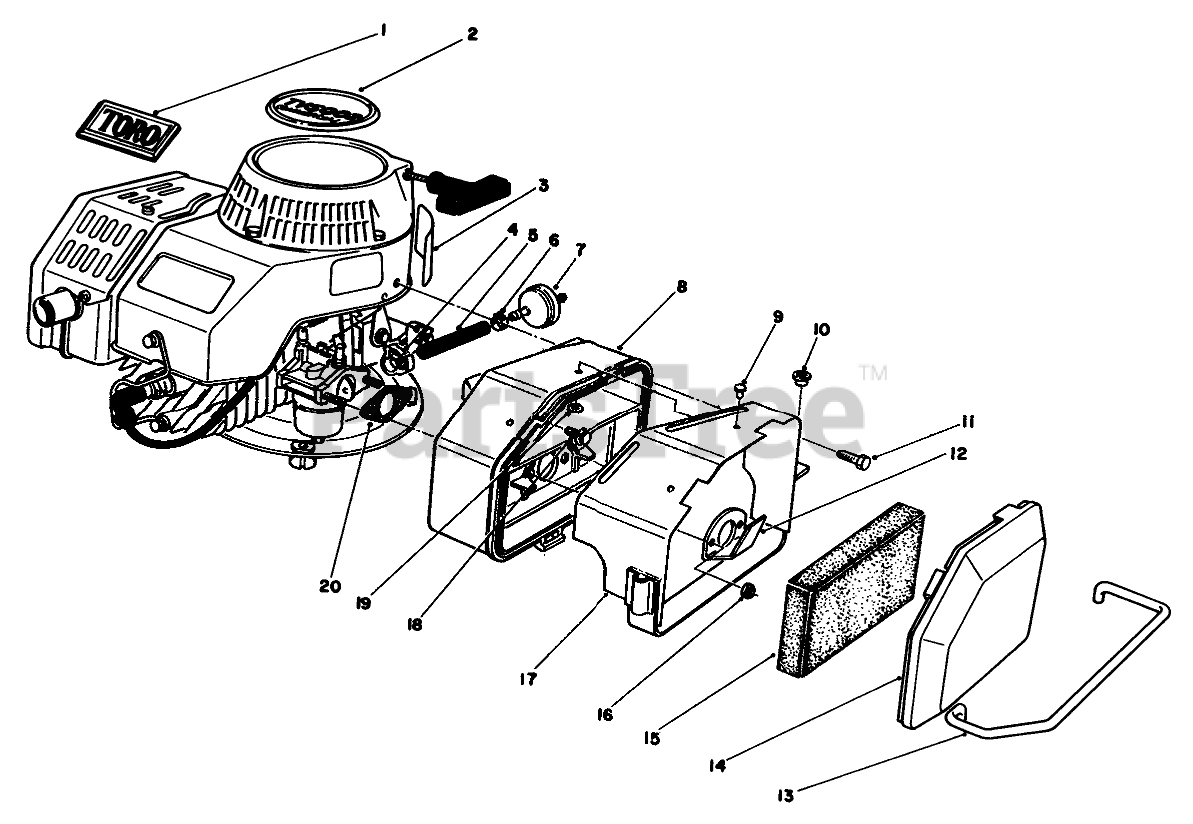

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8291

Plate-Logo
(Superseded to 71-1260)

$7.49

$

Usually ships in 3-6 days

0

2

Toro 49-9030

Plate-Engine Logo
(Superseded to 77-0040)

$11.99

$

Usually ships in 3-6 days

0

3

Toro 52-3420

FUEL MIX DECAL

$

$

Not available

4

Toro 51-3200

FUEL LINE CLAMP

$

$

Not available

5

Toro 51-3211

LINE-GAS

$6.49

$

In Stock, Qty 6

0

6

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

7

Toro 42-5240

Nut
(Superseded to 56-6360)

$6.99

$

In Stock, Qty 20+

0

8

Toro 52-2200

Air Cleaner Assembly (Incl. Ref. #9, 14 & 19)

$553.99

$

Usually ships in 3-6 days

0

9

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

10

Toro 237-127

5/16 ID BSHG

$

$

Not available

11

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

12

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

13

Toro 52-2240

AIR CLEANER GUARD

$

$

Not available

14

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

15

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

16

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 52-2250

AIR CLEANER COVER WA

$

$

Not available

18

Toro 51-3220

HEX FL HD M.6X1.0X25MM

$

$

Not available

19

Toro 3256-53

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0
