593230401 - Husqvarna Engine (2021-01) CRANKCASE & ELECTRICAL Parts Diagram

Engine

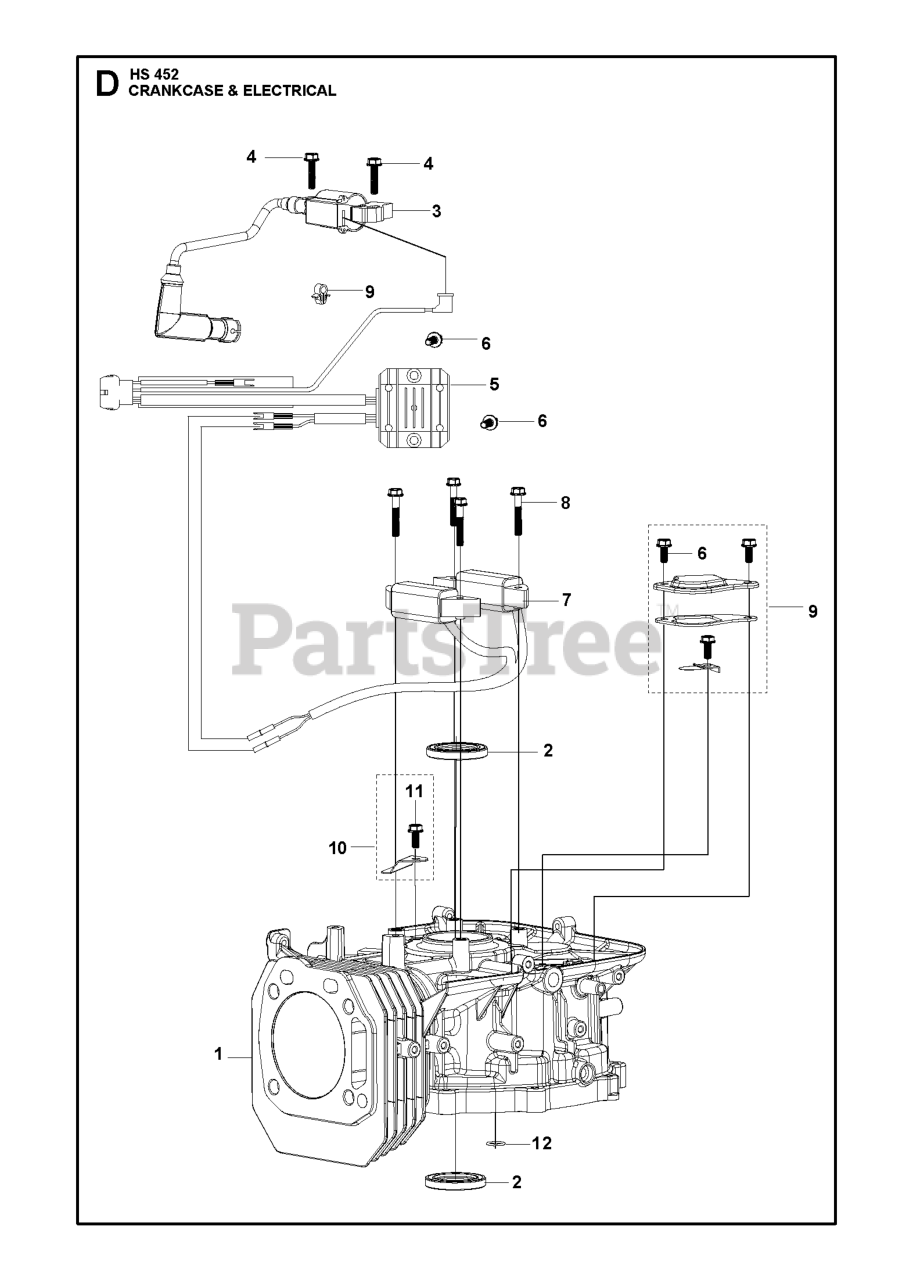

CRANKCASE & ELECTRICAL Parts Diagram

  • Title

4

Husqvarna 598684559

BOLT GB/T 5789: M6 L=25

Note: GB/T 5789: M6 L=25

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 599596801

SEAL OIL SEAL

Note: OIL SEAL

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 599349058

VARIATOR VOLTAGE RECTIFIER KIT

Note: VOLTAGE RECTIFIER KIT

$31.99

$

Usually ships in 3-10 days

0

1

Husqvarna 599349127

CRANKCASE

$193.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590973501

SERVICE KIT KIT.PRESSING PLATE

Note: OIL GROOVE PRESSING PLATE

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 590973601

SERVICE KIT KIT.CHARGING AMATU

Note: ARMATURE

$96.99

$

Usually ships in 3-10 days

0

9

Husqvarna 599349052

BREATHER BREATHER CHAMBER KIT

Note: BREATHER CHAMBER KIT

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 599595601

SEALING RING SEAL RING

Note: SEAL RING - MULTIPACK: 10

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna TBD

Note: GB/T 5789: M6 L=14

$

$

Not available

3

Husqvarna 599349185

IGNITION COIL

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 599349095

BOLT GB/T 5789: M6 L=30

Note: GB/T 5789: M6 L=30

$2.49

$

Usually ships in 3-10 days

0

6

Husqvarna 599349093

BOLT GB/T 5789: M6 L=12

Note: GB/T 5789: M6 L=12

$2.49

$

Usually ships in 3-10 days

0
