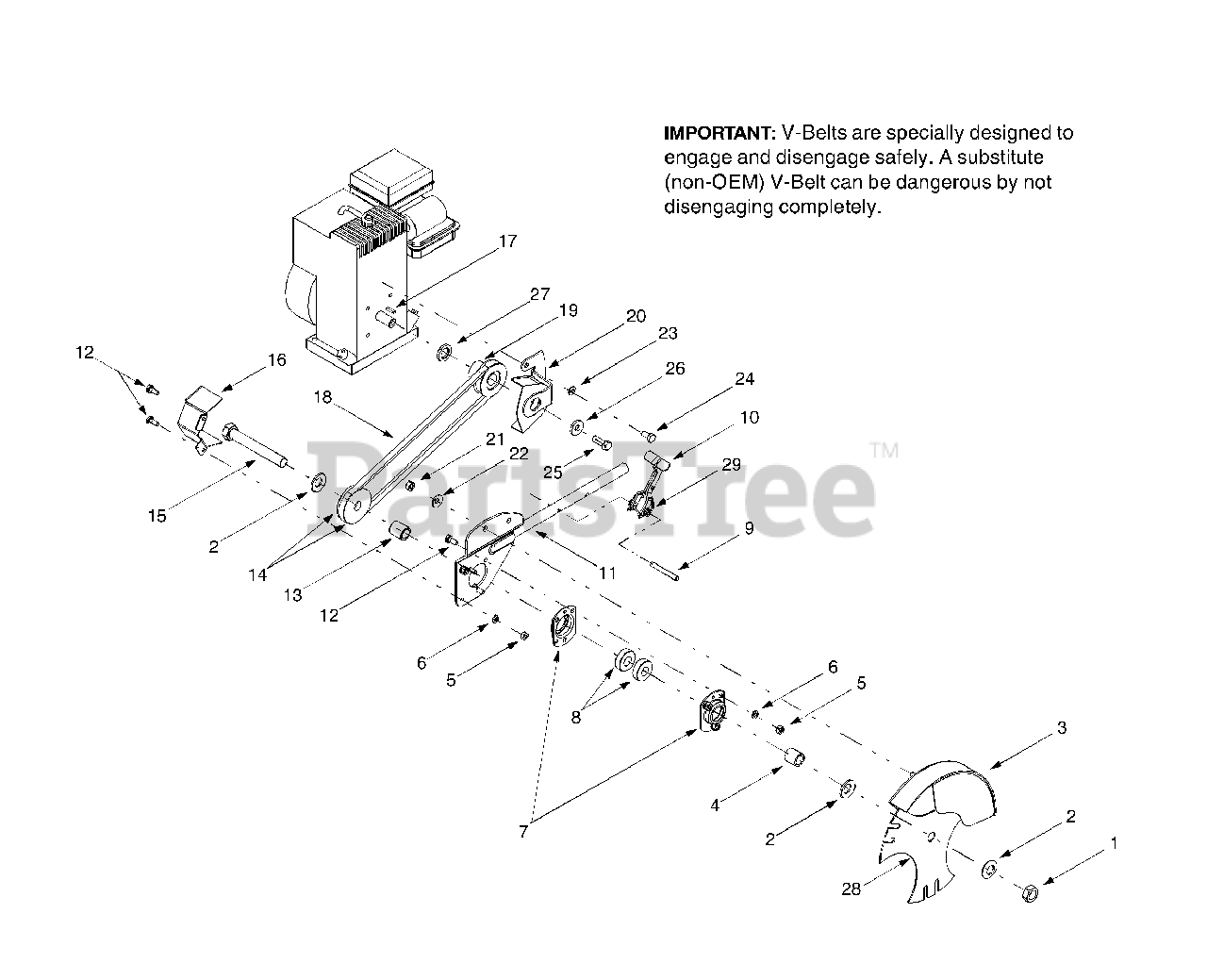

598 (25A-598A190) - White Outdoor Edger (2000) Drive & Blade Parts Diagram

Edger

Drive & Blade Parts Diagram

  • Title

1

MTD 912-0413

Hex Jam Nut, 5/8-18
(Superseded to 712-0413)

$

$

Not available

2

MTD 736-0317

Bell Washer, .64 x 1.25 x .18

$7.49

$

In Stock, Qty 20+

0

3

MTD 781-0076

Blade Guard

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0076-0637

No Longer Available GUARD ASM - POWDER BLACK (0637)

$

$

Not available

MTD 781-0076-0483

No Longer Available GUARDASSY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0076-0498

No Longer Available GUARDASSY - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0076-0638

No Longer Available GUARDASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0076-0650

No Longer Available GUARDASSY - RED METALLIC (0650)

$

$

Not available

MTD 781-0076-0662

No Longer Available GUARDASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0076-0665

No Longer Available GUARDASSY - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0076-0667

No Longer Available GUARDASSY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0076-0716

No Longer Available GUARDASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

MTD 950-0118

Sleeve, .632 x .875 x .90

$

$

Not available

5

MTD 912-0287

Hex Nut, 1/4-20

$4.49

$

In Stock, only 2 left!

0

6

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 12

0

7

MTD 05034A

Bearing Housing

$

$

Not available

8

MTD 941-0155

Ball Bearing, .62 x 1.38 x .44

$22.99

$

In Stock, Qty 20+

0

9

MTD 715-0121

Spirol Pin, 1/4 x 2.0

$6.49

$

In Stock, Qty 12

0

10

MTD 981-0093

Adjustment Lever Assembly

$45.99

$

Usually ships in 3-6 days

0

11

MTD 781-0078

Spindle Plate/Shaft Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0078-0637

PLATE-ASSY.SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

MTD 950-0229

Spacer, .635 x .88 x 1.03

$

$

Not available

14

MTD 956-0449

Sheave, .6255 x .6295

$13.99

$

In Stock, Qty 8

0

15

MTD 710-3151A

Hex Cap Screw, 5/8-18 x 4.5

$16.99

$

In Stock, only 1 left!

0

16

MTD 781-0427-0637

Spindle Belt Guard

$19.99

$

In Stock, Qty 16

0

17

MTD 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

18

MTD 954-0142

V-Belt, 3/8

$30.99

$

In Stock, Qty 17

0

19

MTD 756-0327B

Engine Pulley, 3/8 x .75 x 2.38

Note: NLA

$

$

Not available

20

MTD 687-0100

Engine Pulley Belt Guard

Note: NLA

Variations

MTD 687-0100-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 687-0100-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 687-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-0100-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-0100-0716

No Longer Available GUARD-BELT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 912-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0242

Belleville Washer, .340 x .872

$3.99

$

In Stock, Qty 20+

0

23

MTD 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0237

Hex Cap Screw, 5/16-24 x .625

$4.49

$

Usually ships in 3-6 days

0

25

MTD 710-1039

Hex Cap Screw, 3/8-24 x 1.0

$4.49

$

In Stock, Qty 11

0

26

MTD 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 1 left!

0

27

MTD 948-0160

Spacer, .753 x 1.25 x .175

$6.49

$

In Stock, Qty 9

0

28

MTD 781-0748

Triplex Edger Blade, 9.0

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 20+

0

$21.99

$

In Stock, Qty 20+

0

29

MTD 732-0188A

Double Torsion Spring

$11.99

$

In Stock, Qty 16

0
