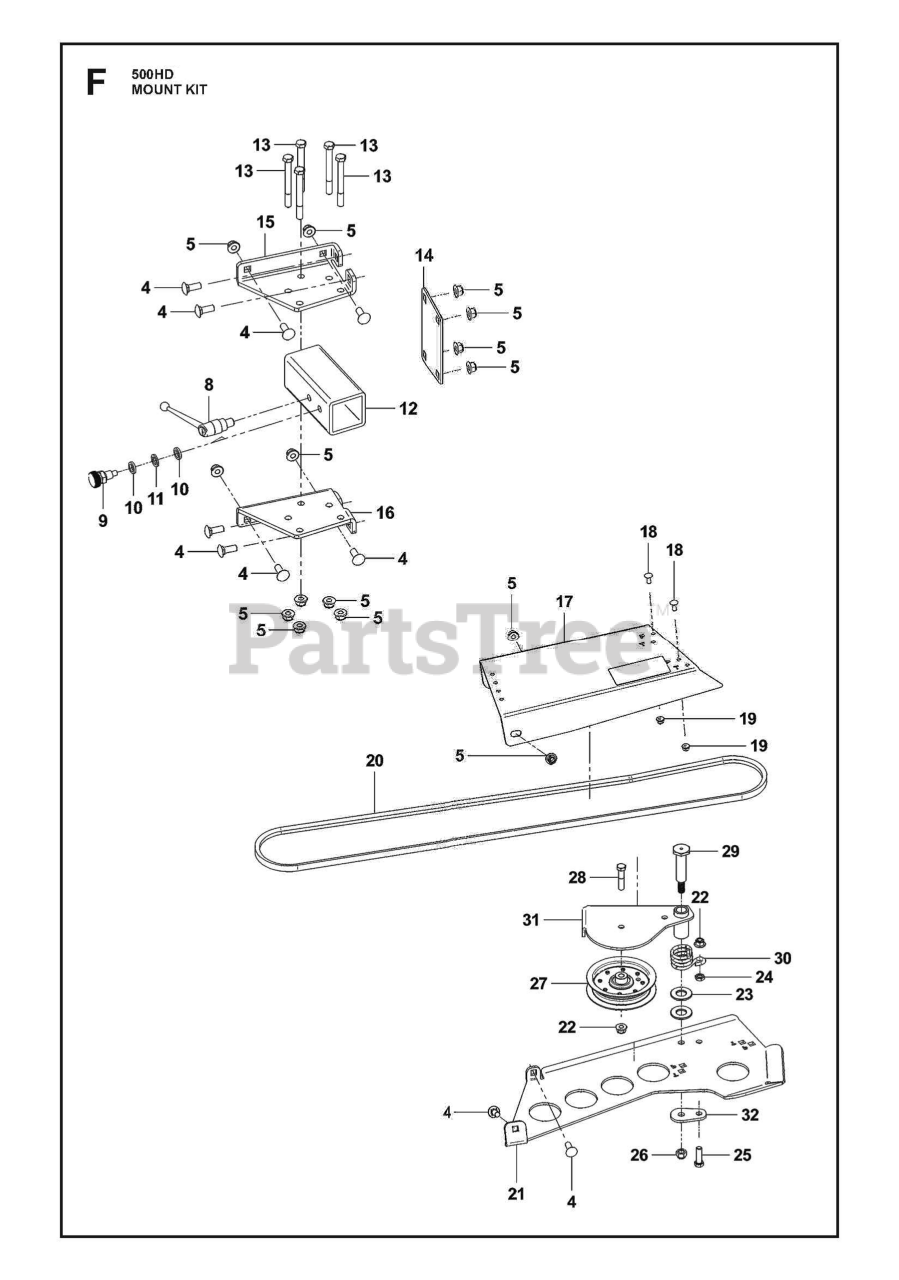

599888101 - Husqvarna Grass Catcher (2020-08) DRIVE Parts Diagram

Grass Catcher

DRIVE Parts Diagram

  • Title

16

Husqvarna 599348746

ARMS

Note: Mount Arm / Bottom

$335.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872140405

BOLT T

Note: "1/4""-20 X 5/8"" Carriage Bolt"

$3.99

$

In Stock, Qty 6

0

20

Husqvarna 599348810

BELTS

Note: AK78 Belt

$107.99

$

Usually ships in 3-10 days

0

11

Husqvarna 734117771

BUSHING

Note: "Flat Washer 1/2"" / .787 OD x .512 ID x .090 T"

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 521996502

GSPW Nuts

Note: 3/8-16 Ny-Flange Lock Nut

$3.49

$

In Stock, Qty 7

0

19

Husqvarna 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

Note: "1/4""-20 Ny-Flange Lock Nut"

$2.49

$

In Stock, Qty 20+

0

15

Husqvarna 599348745

ARMS

Note: Mount Arm / Top

$335.99

$

Usually ships in 3-10 days

0

14

Husqvarna 599348747

ARMS

Note: Mount Arm / Gusset

$89.99

$

Usually ships in 3-10 days

0

22

Husqvarna 521996502

GSPW Nuts

Note: 3/8-16 Ny-Flange Lock Nut

$3.49

$

In Stock, Qty 7

0

30

Husqvarna 599348782

SPRINGS

Note: Torsion Spring

$41.99

$

Usually ships in 3-10 days

0

17

Husqvarna 599348712

COVERS

Note: Belt Guard

$263.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

Note: "3/8""-16 X 3.5"" HHCS G5 Bolt"

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 539130628

HCS 3/8-16 X 1-1/4 GR 8 ZD

Note: "HHCS 3/8""-16x 1-1/4"" GR5"

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 599348725

PLATES

Note: Idler Mnt PI

$275.99

$

Usually ships in 3-10 days

0

8

Husqvarna 599348779

HANDLES

Note: "Adjustable Handle 1/2""-13 x .59 Male"

$107.99

$

Usually ships in 3-10 days

0

12

Husqvarna 599348720

ARMS

Note: Tube / Mount Arm

$143.99

$

Usually ships in 3-10 days

0

23

Husqvarna 599348802

WASHERS

Note: Flat Washer .720 ID x 1.500 OD x .250 T

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 595316801

Bolts

Note: "3/8""-16 X 1"" Carriage Bolt"

$4.99

$

In Stock, only 2 left!

0

Husqvarna 599348778

HARNESSES

Note: NOT SHOWN

$718.99

$

Usually ships in 3-10 days

0

31

Husqvarna 599348713

ARMS

Note: Idler Arm Assy

$215.99

$

Usually ships in 3-10 days

0

9

Husqvarna 599348781

PINS

Note: "Knob Plunger Pin 1/2""-13"

$101.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

Note: "Mylock Nut 7/16""-14 GR8"

$4.99

$

In Stock, Qty 18

0

10

Husqvarna 599348780

WASHERS

Note: "Nylon Flat Washer 1/2"" x .750"" OD Grade 6/6"

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 599348803

BOLTS

Note: "Shoulder Bolt 7/16""-14 / Idler"

$65.99

$

Usually ships in 3-10 days

0

24

Husqvarna 596219001

Nuts

Note: "Jam Nut 3/8""-16"

$2.49

$

Usually ships in 3-10 days

0

32

Husqvarna 599348726

PLATES

Note: Idler Base Plate

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna 599348808

PULLEYS

Note: Idler Pulley

$143.99

$

Usually ships in 3-10 days

0

28

Husqvarna 529358801

BOLTS

Note: "HHCS 3/8""-16x 1-3/4"" GR8"

$4.99

$

Usually ships in 3-10 days

0
