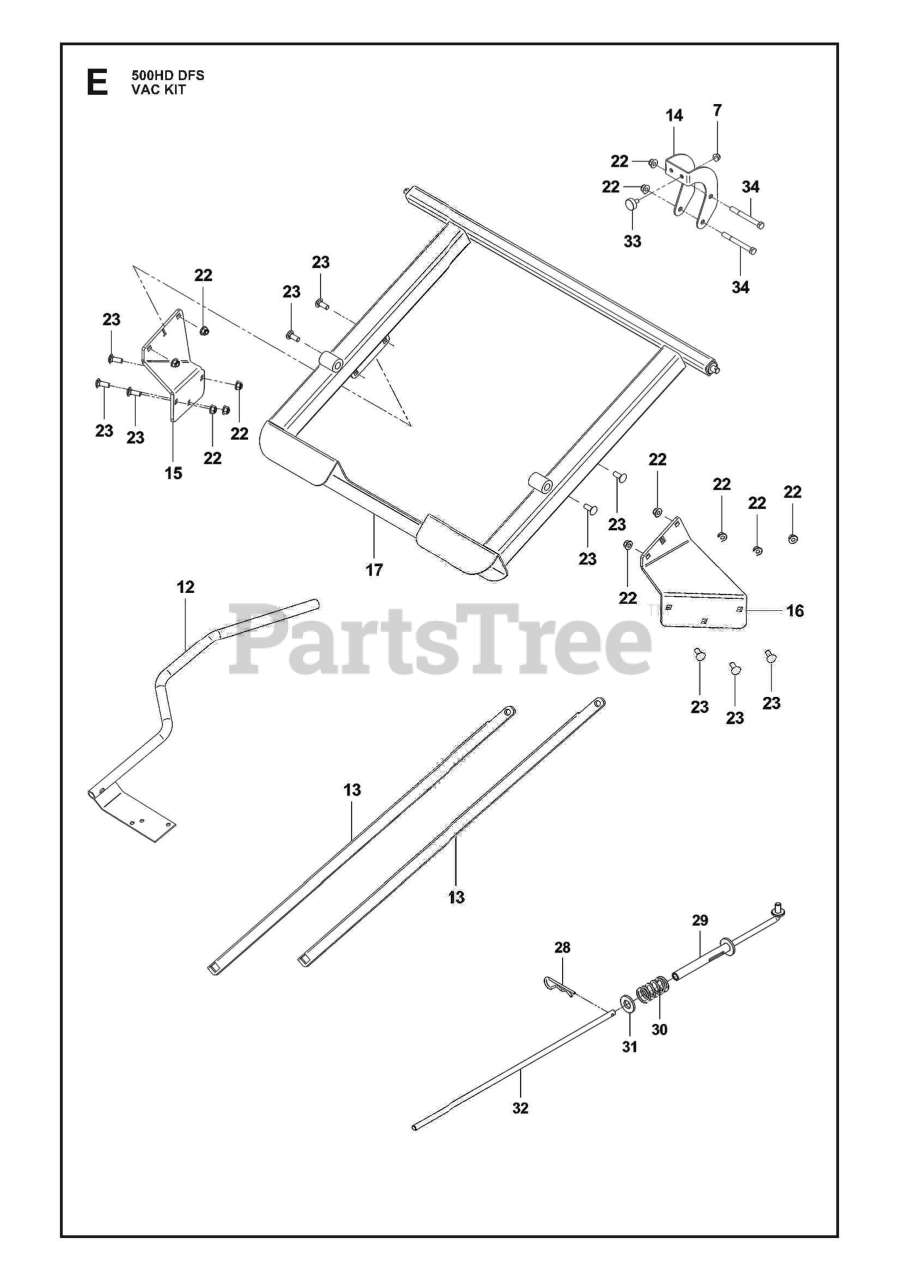

599888201 - Husqvarna Grass Catcher (2020-08) FRAME Parts Diagram

Grass Catcher

FRAME Parts Diagram

  • Title

28

Husqvarna 596273101

Pins

Note: Hair Pin Clip .125 ODx2.50

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 599348705

FRAMES

Note: Main Frame Assy.

$

$

Not available

22

Husqvarna 521996502

GSPW Nuts

Note: 3/8-16 Ny-Flange Lock Nut

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 595316801

Bolts

Note: "3/8""-16 X 1"" Carriage Bolt"

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 599348715

RODS

Note: Latch Rod Weldment

$

$

Not available

7

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: "5/16""-18 Ny-Flange Lock Nut"

$6.99

$

In Stock, Qty 20+

0

33

Husqvarna 599348805

ANTIVIBTAION ELE

Note: "Vibro-Insulator 1"" Dia. 3/8"" thick w 5/16-18 Stud"

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 599348743

FRAMES

Note: Left Frame Leg

$

$

Not available

34

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

Note: "3/8""-16 X 3.5"" HHCS G5 Bolt"

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 598684303

HANDLES

Note: Box Handle Assy.

$

$

Not available

31

Husqvarna 595086801

Washers

Note: "1/2"" Flat Washer 1.084 OD x .528 ID x .120 T"

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 599348729

LATCH

Note: Latch Rod / Hook Side

$

$

Not available

30

Husqvarna 599348786

SPRINGS

Note: Spring

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 599348744

FRAMES

Note: Right Frame Leg

$

$

Not available

13

Husqvarna 599348752

LINKS

Note: Door Linkage

$

$

Not available

14

Husqvarna 599348750

BRACKETS

Note: Elbow Bumper Bracket

$159.99

$

Usually ships in 3-10 days

0
