59A30003 (59A30003150) - Cub Cadet Power Assist Kit att3 Blower Assembly Parts Diagram

Power Assist Kit

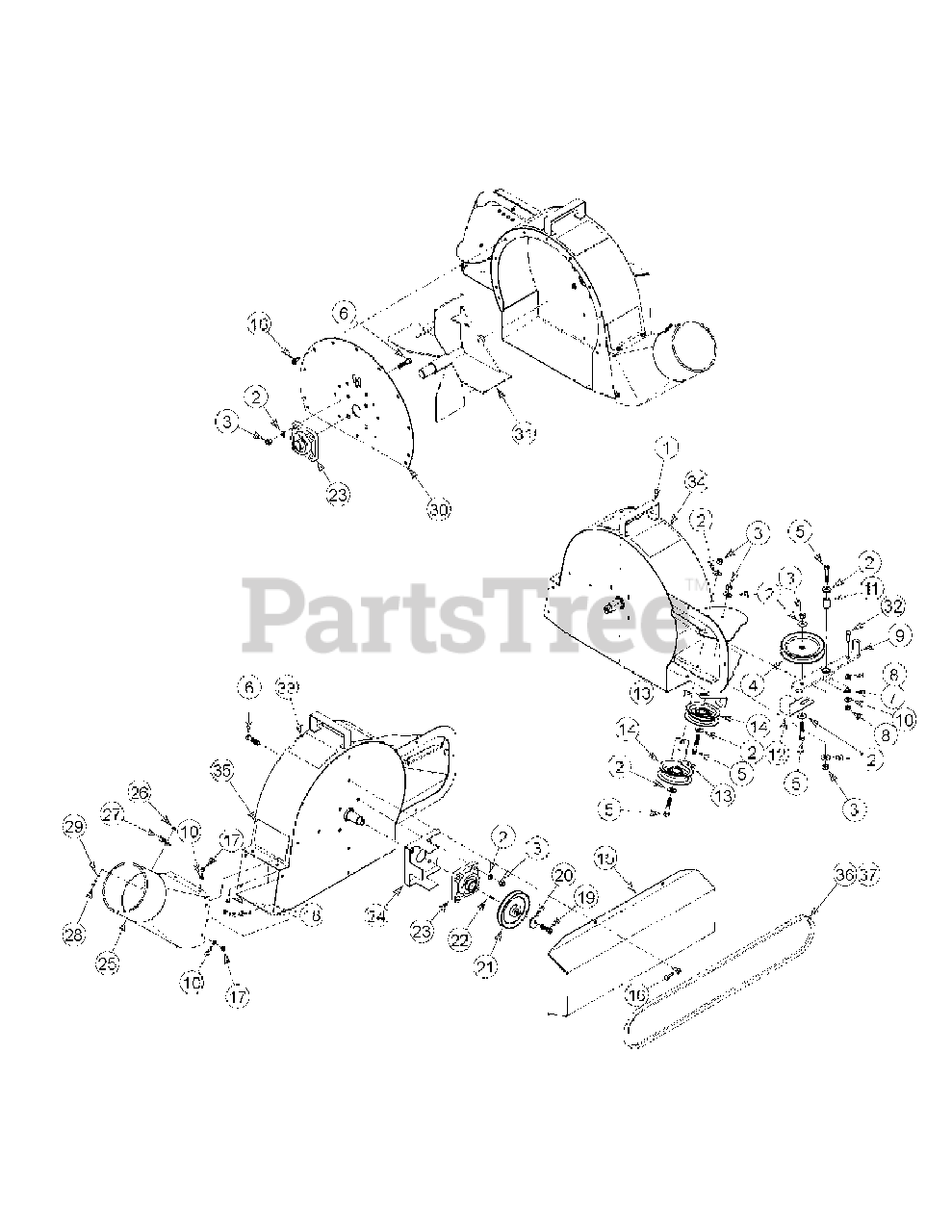

Blower Assembly Parts Diagram

  • Title

1

Cub Cadet FRA151006

BLOWER HOUSING

$

$

Not available

2

Cub Cadet FAS150812

FLAT WASHER 5/16"

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 912-3020

HEX NUT, NYLON INSERT 3/8"-16

$6.99

$

In Stock, Qty 9

0

4

Cub Cadet OTH150054

IDLER PULLEY

$119.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3144

CAP SCREW 3/8"-16 X 2" LONG

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0520

CAP SCREW 3/8"-16 X 1 1/2" LONG G5

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet FAS150881

SPRING

$

$

Not available

8

Cub Cadet 912-0429

HEX NUT, NYLON INSERT 5/16"-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet FRA151008

BELT TENSIONING ASSEMBLY

$131.99

$

Usually ships in 3-6 days

0

10

Cub Cadet FAS150827

FLAT WASHER 1/4" USS

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet FRA151009

BELT TENSIONING BUSHING

$

$

Not available

12

Cub Cadet FRA151003

BELT GUIDE, LARGE PULLEY

$

$

Not available

13

Cub Cadet FRA151004

BELT GUIDE SMALL PULLEY

$37.99

$

Usually ships in 3-6 days

0

14

Cub Cadet OTH150053

BACK SIDE BELT IDLER PULLEY

$90.99

$

In Stock, only 1 left!

0

15

Cub Cadet FRA151002

BELT COVER

$

$

Not available

16

Cub Cadet FAS150879

SELF THREADING SCREW UNSLOTTED 5/16"-18 X 5/8" LONG

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0324

HEX NUT, NYLON INSERT 1/4"-20

$3.99

$

In Stock, only 4 left!

0

18

Cub Cadet 710-3015

CAP SCREW 1/4"-20 X 3/4LONG

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet FAS150934

BOLT, SERRATED FLANGE 3/8"-16 X 1.25" LONG

$5.49

$

In Stock, only 1 left!

0

20

Cub Cadet FAS150933

FLAT WASHER HEAVY

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet OTH150041

DRIVE PULLEY

$

$

Not available

22

Cub Cadet FAS150854

KEY

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet OTH150055

BEARING

$112.99

$

Usually ships in 3-6 days

0

24

Cub Cadet FRA151001

BELT GUIDE

$

$

Not available

25

Cub Cadet OTH150056

TRANSITION CHUTE

$391.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-0161

HEX NUT, NYLON INSERT, #10-24

$4.99

$

In Stock, Qty 16

0

27

Cub Cadet FAS150875

SPRING CLIP

$8.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0473

MACHINE SCREW #10-24X 1/2" LONG

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet FAS150867

FLAT WASHER #10 FENDER

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet FRA151007

BLOWER COVER

$

$

Not available

31

Cub Cadet FRA151010

IMPELLER

$636.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0376

CAP SCREW 5/16"-18 X 1" LONG

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet LAB000008

LABEL, DANGER TURN OFF MOWER

$

$

Not available

34

Cub Cadet LAB000007

LABEL, DANGER ROTATING BLADES

$

$

Not available

35

Cub Cadet LAB000006

LABEL, DANGER THROWN OBJECT

$

$

Not available

36

Cub Cadet OTH150057

BELT 48" DECK

$178.99

$

Usually ships in 3-6 days

0

37

Cub Cadet OTH150012

BELT 54" DECK

$

$

Not available

37

Cub Cadet OTH150100

BELT 60" DECK

$117.99

$

Usually ships in 3-6 days

0
