59A30009 (59A30009150) - Cub Cadet 44" Mulch Kit 44 Inch Mulch Attachment Parts Diagram

44" Mulch Kit

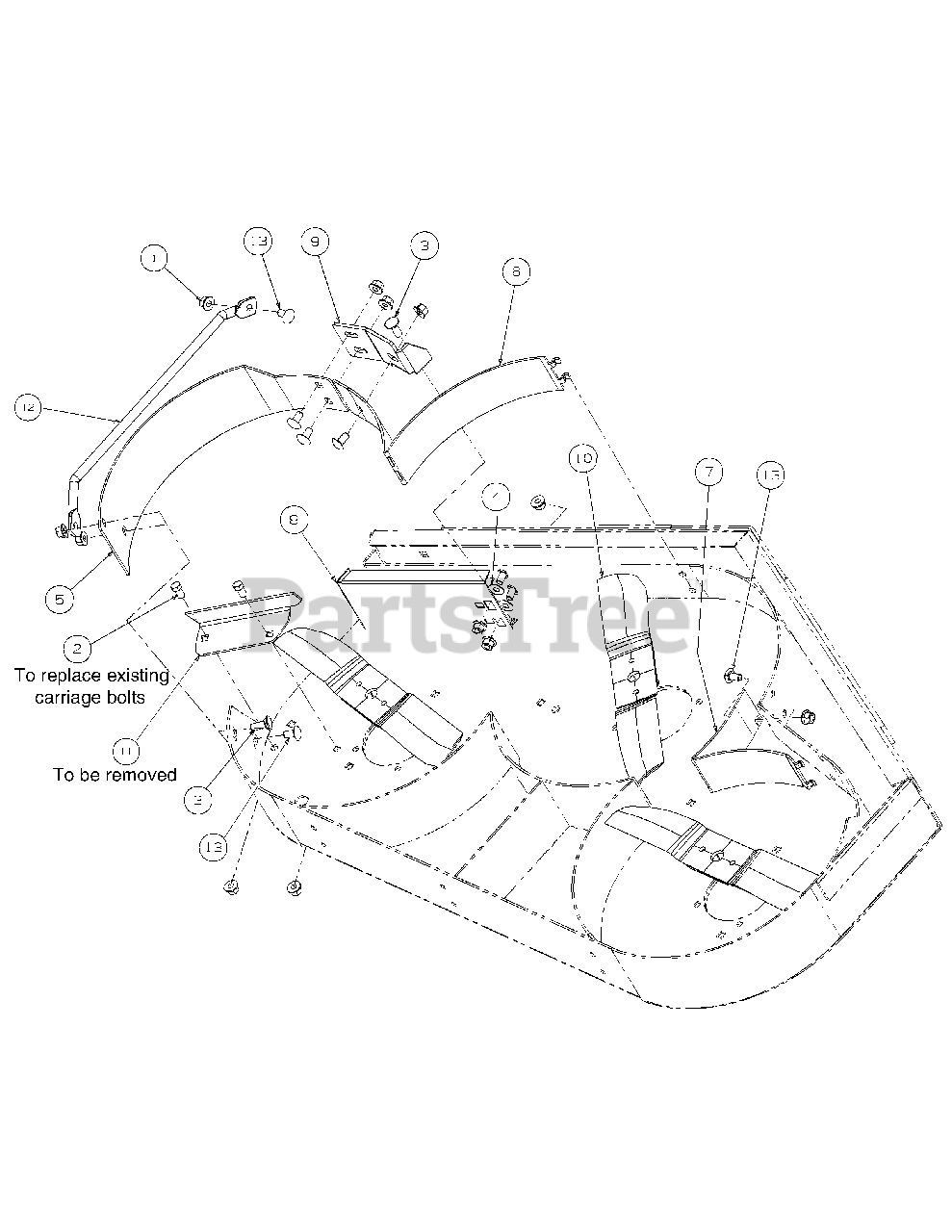

44 Inch Mulch Attachment Parts Diagram

  • Title
1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$3.41

$

In Stock, Qty 20+

0

2

Cub Cadet 01002601

HHCS, 3/8-16 x .75
(Superseded to 710-0216)

$3.59

$

In Stock, Qty 20+

0

3

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$4.40

$

In Stock, Qty 13

0

4

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$2.89

$

In Stock, Qty 20+

0

5

Cub Cadet 02003869

Mulch Baffle, Discharge

$

$

Not available

6

Cub Cadet 02003871

Mulch Baffle

$51.11

$

Usually ships in 5-10 days

0

7

Cub Cadet 02003873

Mulch Baffle, Small

$39.69

$

Usually ships in 5-10 days

0

8

Cub Cadet 02004015

Mulch Plug Bracket

$48.79

$

Usually ships in 5-10 days

0

9

Cub Cadet 02004054

Mulch Bracket

$

$

Not available

10

Cub Cadet 742-3036

Blade
(Superseded to 742P3036)

$

$

Not available

11

Cub Cadet 02001236

Fabricated Deck, Chute Bracket
(Superseded to 02001235-0637)

$25.32

$

Usually ships in 5-10 days

0

12

Cub Cadet 01008644

Fabricated Deck Finger Guard

$31.08

$

In Stock, Qty 8

0

13

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$3.59

$

In Stock, Qty 20+

0
