59A30014 (59A30014150) - Cub Cadet Commercial Catcher System Catcher Assembly Parts Diagram

Commercial Catcher System

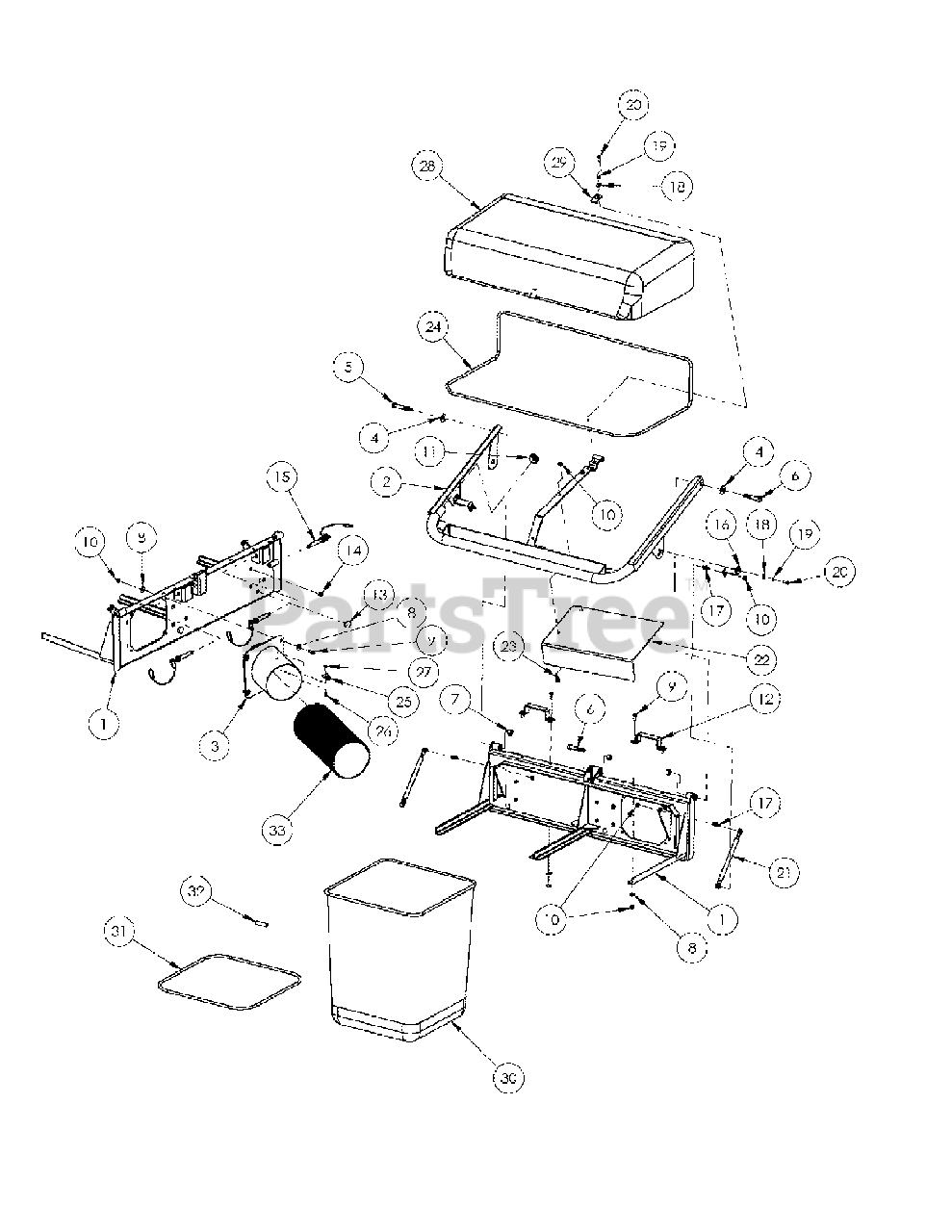

Catcher Assembly Parts Diagram

  • Title

1

Cub Cadet FRA150455

2 BAG CATCHER BAG SUPPORT MOUNT

$

$

Not available

2

Cub Cadet FRA150456

2 BAG CAP SUPPORT

$

$

Not available

3

Cub Cadet FRA150459

INLET TUBE ASSEMBLY

$

$

Not available

4

Cub Cadet FAS150825

FLAT WASHER-1/2

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0182

CAP SCREW-1/2"-13 X 3" LONG
(Superseded to 710-0182A)

$8.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3233

CAP SCREW-1/2"-13 X 2 1/2" LONG

$15.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3083

HEX NUT, NYLON INSERT-1/2"-13

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet FAS150812

FLAT WASHER-5/16"

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3008

CAP SCREW-5/16"-18 X 3/4" LONG

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-0429

HEX NUT, NYLON INSERT-5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet FAS150142

HOLE PLUG

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet FRA150101

BAG HANDLE

$17.99

$

Usually ships in 3-6 days

0

13

Cub Cadet FAS150818

RUBBER BUMPER

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet FAS150414

PLUG, HOLE 7/16

$

$

Not available

15

Cub Cadet FAS150817

DETENT PIN W/ LANYARD-1/2" X 2 1/2" LONG

$

$

Not available

16

Cub Cadet FRA150423

BRACKET-GAS CYLINDER MOUNT

$25.99

$

Usually ships in 3-6 days

0

17

Cub Cadet OTH150032

BALL JOINT

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet FAS150827

1/4" WASHER

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0329

LOCK WASHER-1/4"

$4.99

$

In Stock, Qty 16

0

20

Cub Cadet 710-3015

CAP SCREW-1/4-20 X 3/4" LONG

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet OTH150031

GAS CYLINDER

$108.99

$

Usually ships in 3-6 days

0

22

Cub Cadet FRA150416

2 BAG DEFLECTOR

Note: NLA

$

$

Currently unavailable

23

Cub Cadet 710-0323

PAN HEAD SCREW-5/16"-18 X 3/4" LONG

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet FRA150453

AIR DOME FRAME, 2 BAG-3/8" ROD ONE PIECE

$61.99

$

Usually ships in 3-6 days

0

25

Cub Cadet FAS150875

SPRING CLIP

$8.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0473

MACHINE SCREW-#10-24 X 1/2" LONG

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0161

HEX NUT, NYLON INSERT-#10-24

$4.99

$

In Stock, Qty 16

0

28

Cub Cadet 305 003 112

2-BAG FABRIC CAP WITH "J" STRIP-PLAIN

Note: NLA

$

$

Not available

29

Cub Cadet FRA150451

BRACKET-SINGLE HOLE MOUNT

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 305 003 121

CATCHER BAG, COMMERICAL

$103.99

$

Usually ships in 3-6 days

0

31

Cub Cadet FRA150408

GRASS BAG FRAME, COMMERCIAL

$49.99

$

Usually ships in 3-6 days

0

32

Cub Cadet FAS150920P

CONNECTOR TUBE

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet OTH150037

DISCHARGE HOSE

$287.99

$

Usually ships in 3-6 days

0
