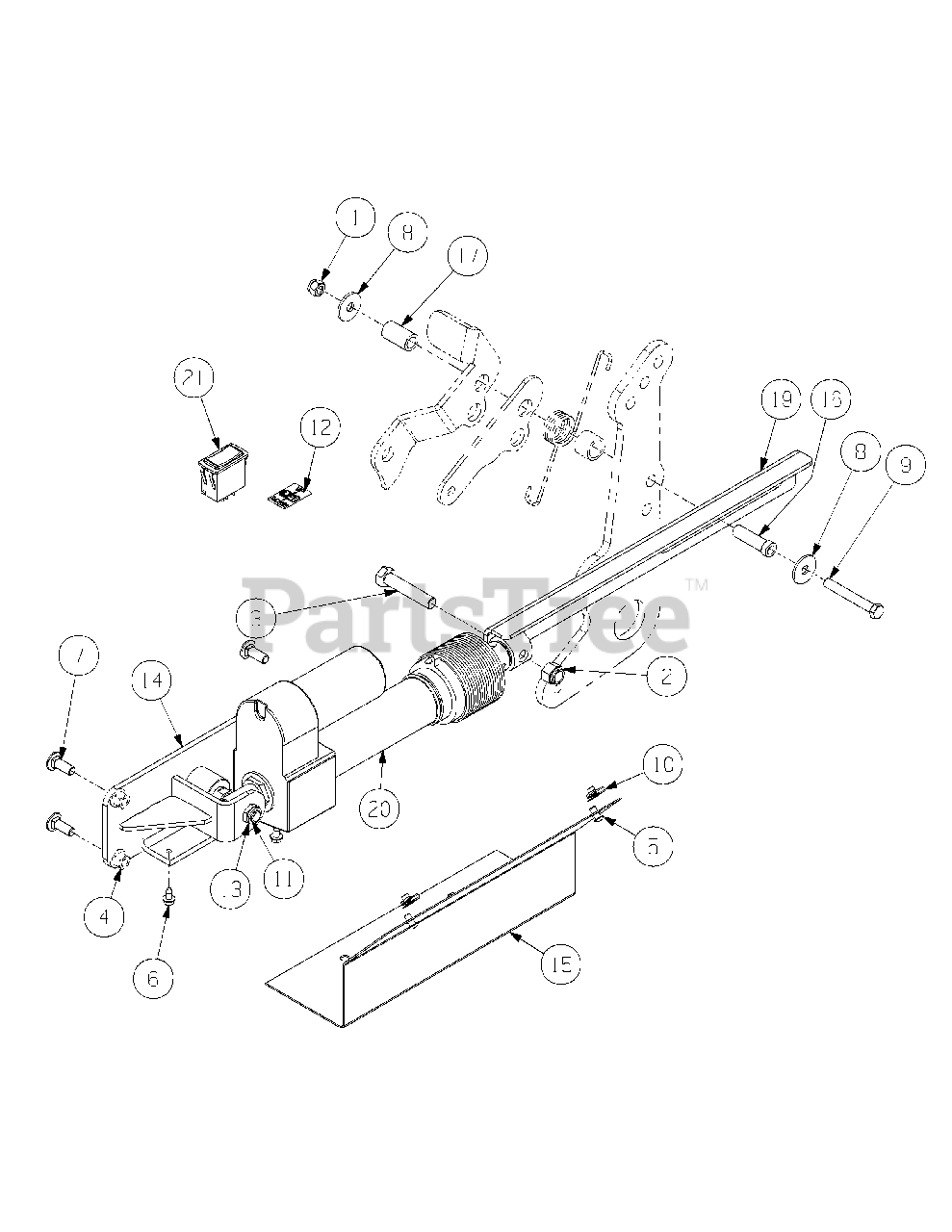

59A30016 (59A30016150) - Cub Cadet Electric Deck Lift att2 General Assembly Parts Diagram

Electric Deck Lift

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00012173

Nut, 3/8-16, Nylock
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012428

Nut, 1/2-13, nylock

$6.49

$

In Stock, Qty 8

0

3

Cub Cadet 00013894

HHCS, 1/2-20 x 2.50

$

$

Not available

4

Cub Cadet 00022560

Nut, 3/8-16, Flangelock
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 01000443

Capscrew, 1/4-20 x .500
(Superseded to 710-3256)

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01000628

Self Tapping Screw, 1/4-20 x .50
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 10

0

8

Cub Cadet 01000872

Washer, 1.25 x .411 x .100
(Superseded to 936-0133)

$

$

Not available

9

Cub Cadet 01001371

HHCS, 3/8-16 x 2.75
(Superseded to 710-3022)

$4.49

$

In Stock, Qty 10

0

10

Cub Cadet 01008539

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.49

$

In Stock, Qty 5

0

11

Cub Cadet 01009740

Pivot Pin

$

$

Not available

12

Cub Cadet 01009761

Label, Up/Down

$

$

Not available

13

Cub Cadet 01010114

Jam Nut, 1/2-13

$

$

Not available

14

Cub Cadet 02005416

Actuator Weldment

Variations

Cub Cadet 02005416-0637

PLATE ASSY - ACTUATE - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 02005611

Lower panel, RH

Variations

Cub Cadet 02005611-4021

PANEL - LOWER RH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

16

Cub Cadet 02005663

Spacer, .390 ID x .625 OD x 1.93

$

$

Not available

17

Cub Cadet 02005664

Spacer, .515 ID x .75 OD x 1.313

$

$

Not available

19

Cub Cadet 680-00015

Deck Lift Arm Assembly

Variations

Cub Cadet 680-00015-0637

ARM ASSY - DECK LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 725-04077

Actuator
(Superseded to 925-04077)

$997.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-04761

Switch
(Superseded to 925-04761)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 629-04165

Harness
(Superseded to 929-04165)

Note: Not Shown

$

$

Not available
