59A30017 (59A30017150) - Cub Cadet Tank Spreader Kit att Counter Weight Assembly Parts Diagram

Tank Spreader Kit

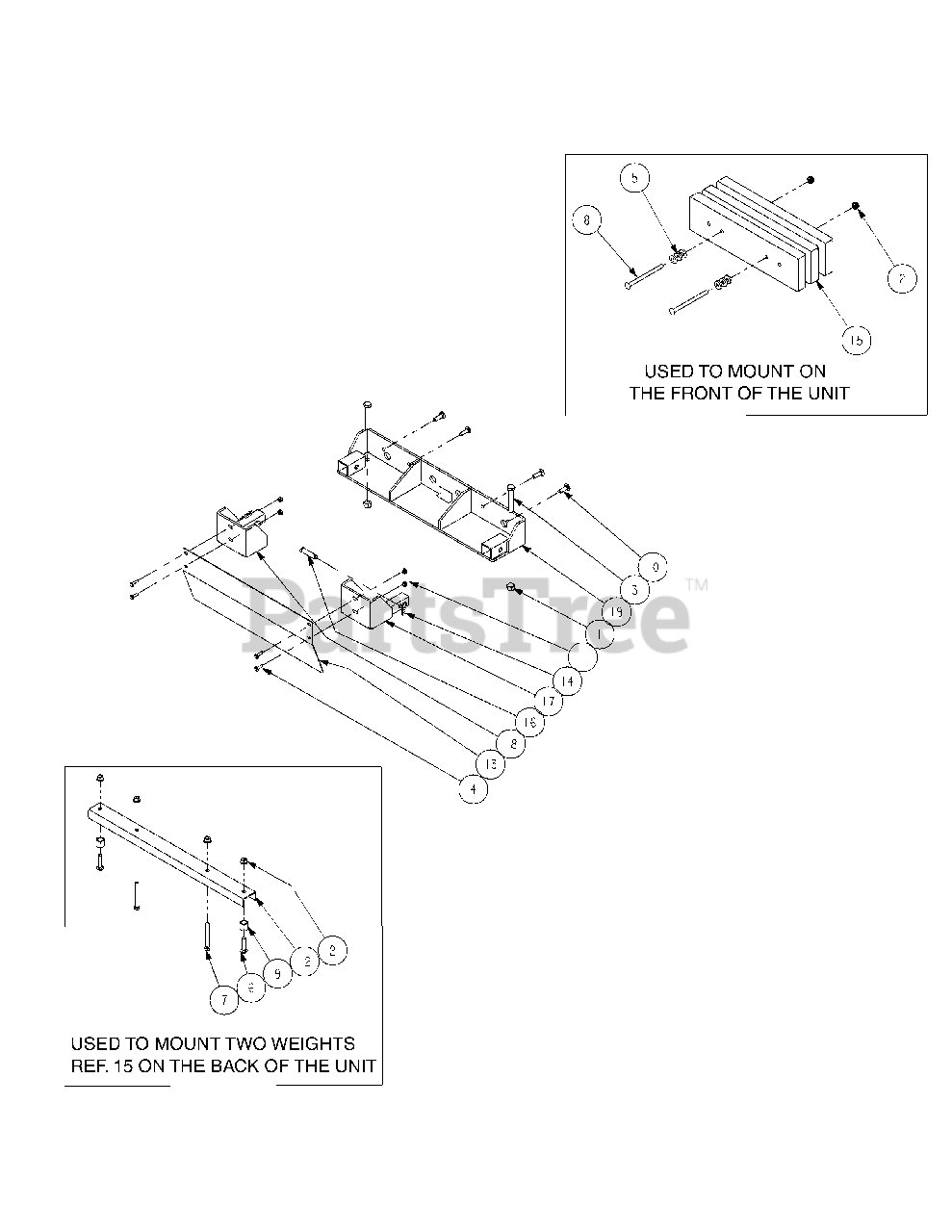

Counter Weight Assembly Parts Diagram

  • Title

1

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00022560

Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00030046

HHCS, 1/2-13 x 3.00

$

$

Not available

4

Cub Cadet 00031602

Carriage Bolt, 1/4-20 x 1.00

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00083192

Washer, .390 ID x 1.0 OD x .180
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01000364

Carriage Screw, 3/8-16 x 1.75
(Superseded to 710-0560)

$7.49

$

In Stock, Qty 14

0

7

Cub Cadet 01000371

HHCS, 3/8-16 x 3.25
(Superseded to 710-3130)

$10.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01000642

Carriage Bolt, 3/8-16 x 5.50

$18.99

$

In Stock, only 3 left!

0

9

Cub Cadet 01000917

Spacer, .635 ID x .86 Long
(Superseded to 750-3065)

$9.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01002010

Carriage Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 01002766

Nut, 1/4-20, Flange Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01003658

Cross Bar
(Superseded to 01003658-0637)

Variations

Cub Cadet 01003658-0637

BAR-BUMPER CROSS - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 01008983

Shield
(Superseded to 01008983-0637)

Variations

Cub Cadet 01008983-0637

SHIELD-BOOM SPRAY - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 02000673

Hair Pin, 1/8
(Superseded to 914-0209)

$3.99

$

In Stock, only 3 left!

0

15

Cub Cadet 02002426

Weight Bar, 25 lbs

$178.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002437

Clevis Pin, 1/2 x 2.00 Long

$

$

Not available

17

Cub Cadet 02004964

Support Weldment, Left
(Superseded to 02004964-0637)

Variations

Cub Cadet 02004964-0637

BRACKET - SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 02004965

Support Weldment, Right
(Superseded to 02004965-0637)

Variations

Cub Cadet 02004965-0637

BRACKET - SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 02005444

Weldment Bracket, FR/RR

Variations

Cub Cadet 02005444-0637

BRACKET- FR / RR - POWDER BLACK (0637)

$

$

Not available

$

$
