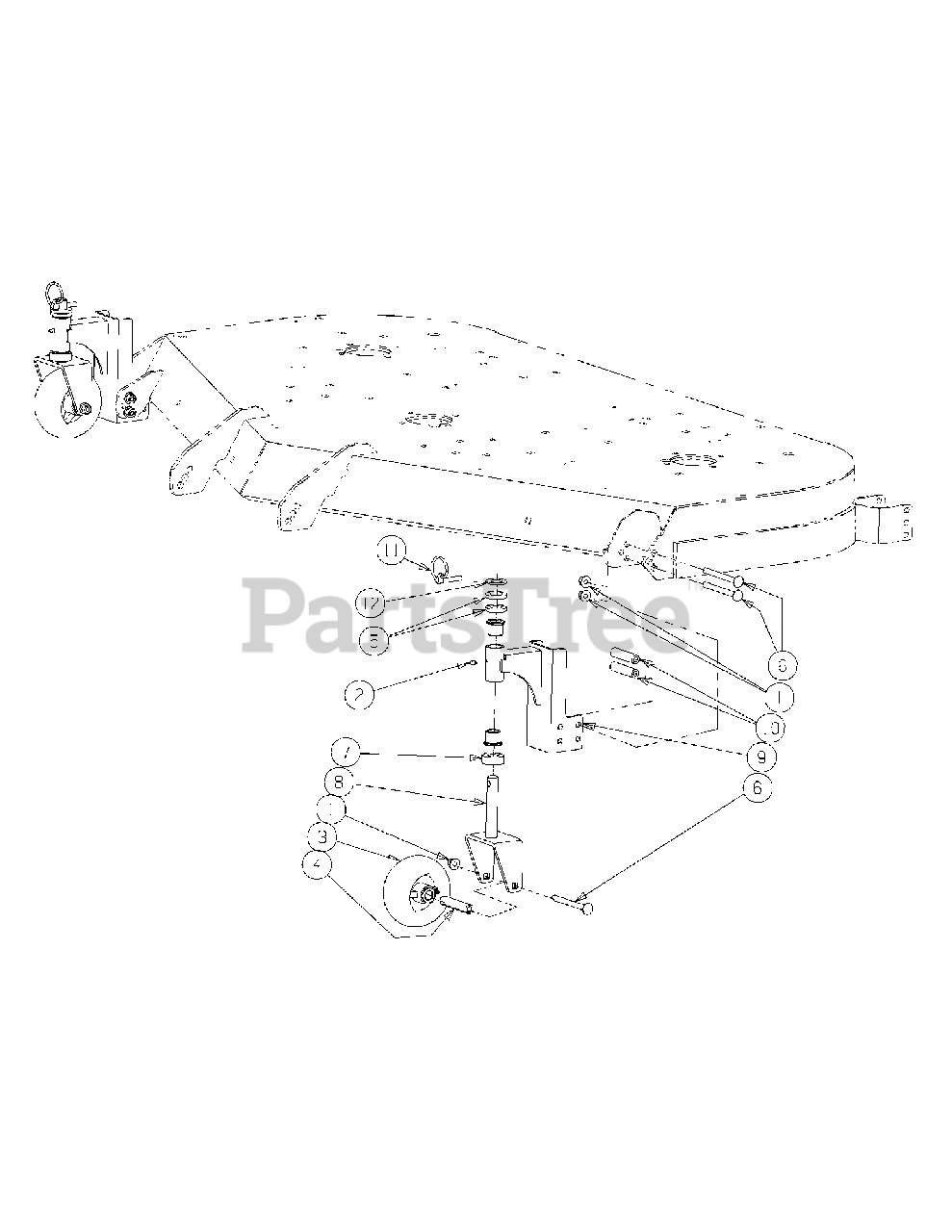

59A30018 (59A30018150) - Cub Cadet Caster Wheel Kit att General Assembly Parts Diagram

Caster Wheel Kit

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

3

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$36.99

$

In Stock, Qty 20+

0

4

Cub Cadet 750-3193

Wheel Spacer

$19.99

$

In Stock, Qty 20+

0

5

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$10.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01008456

Spacer, .760 x 1.50 x .50

$36.99

$

In Stock, only 1 left!

0

8

Cub Cadet 02005689-0637

Caster Yoke Assembly

$86.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02005692

Caster Bracket Assembly

Note: includes flange bearings

$181.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 941-0339

Flange Bearing

Note: Shown with reference 9, (2 used per caster bracket)

$13.99

$

In Stock, Qty 20+

0

10

Cub Cadet 02005698

Spacer, .390 x .630 x 2.60

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 02005699

Lynch Pin, 5/16 x 1.562

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0188

Washer, .76 x 1.49 x .06

$4.99

$

In Stock, Qty 20+

0
