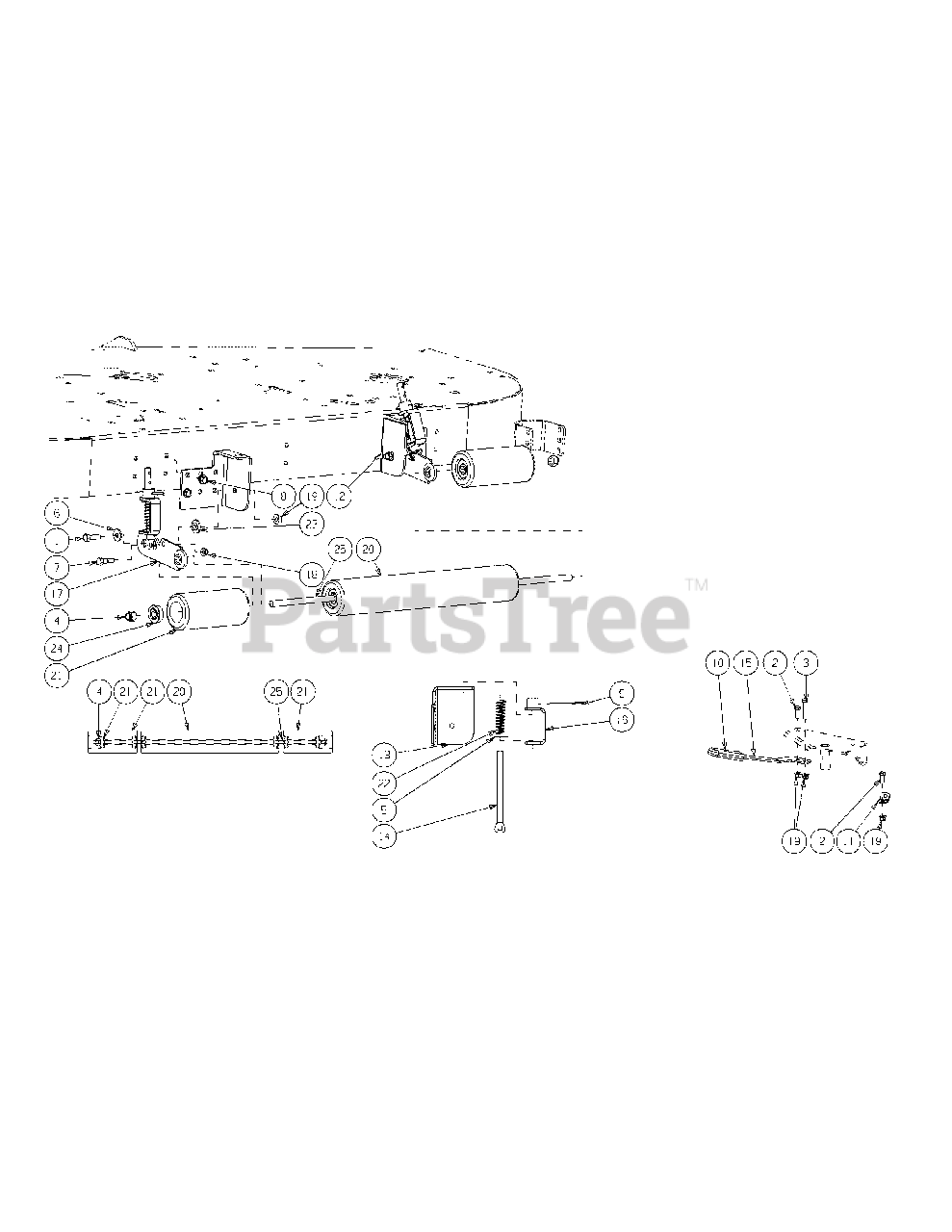

59A30019 (59A30019150) - Cub Cadet Striper Kit General Assembly Parts Diagram

Striper Kit

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00011444

HHCS, 3/8-16 x 1-1/4

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012171

HHCS, 3/8-16 x 1.00

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012172

HHCS, 3/8-16 x 2.00
(Superseded to 710-3096)

$8.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$7.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00012577

Washer, 1/2 Zinc

$5.49

$

In Stock, Qty 10

0

6

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01002988

Shoulder Bolt
(Superseded to 738-05006)

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16,.5
(Superseded to 710-0773)

$7.99

$

In Stock, Qty 20+

0

9

Cub Cadet 02003074

HitchPin, .120 Dia. x 3.0

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02003740

Grip

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 02004195

Spring Mounting Bracket, 45 degree

$33.99

$

In Stock, only 2 left!

0

12

Cub Cadet 02004887-0637

Striper Mounting Bracket, LH

$43.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 02004890

Striper Mounting Bracket, RH

Variations

Cub Cadet 02004890-0637

BRACKET-STRIPER RH - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 02004891

Striper Adjustment Rod

$

$

Not available

15

Cub Cadet 02005199-0637

Idler Tension Handle

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 680-00002-0637

Striper Adjustment Clip Assembly

$34.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 680-00005

Striper Arm Bracket Assembly

$113.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04063

Nylon Nut, 5/16-18, Flangelock

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nylon Nut, 3/8-16, Flangelock

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 731-06526

Roller, 18.20" w/ Insert

$92.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-06723

Roller, 6.5" w/ Insert

$80.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-04553

Compression Spring, .72 OD x 2.75

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 738-04372

Shoulder Spacer, .625 Dia. x .190

$8.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-04362

Roller Bearing, .5" ID

$32.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 747-04970

Striper Roller Rod

$29.99

$

Usually ships in 3-6 days

0
