59A30020 (59A30020150) - Cub Cadet 72" Snow Blade att3 General Assembly Parts Diagram

72" Snow Blade

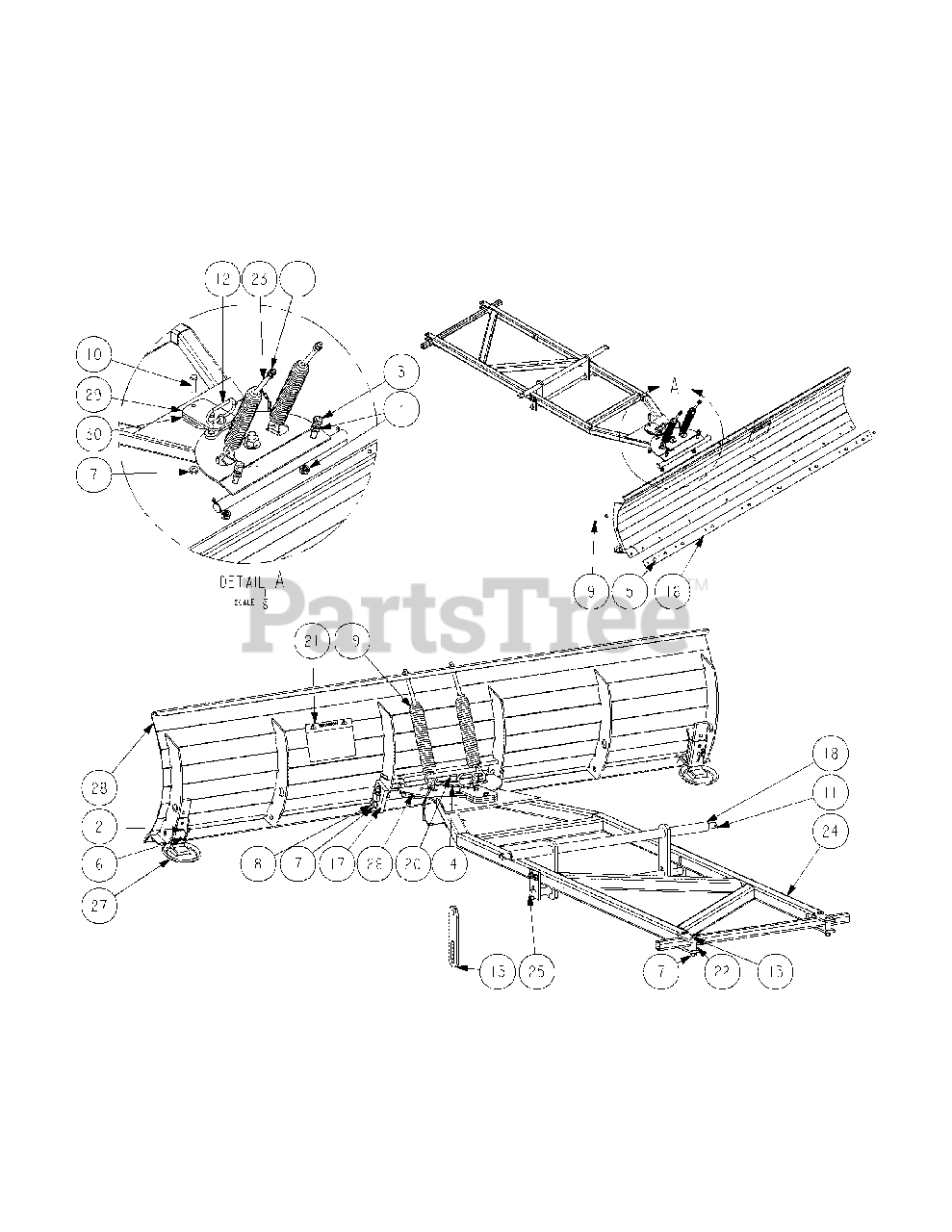

General Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00009678

Clevis Pin, 3/8 x 1-1/8 Zinc
(Superseded to 711-05735)

$13.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00010956

Hex Cap Screw:1/2-13 x 2.0

$

$

Not available

4

Cub Cadet 00010957

Hex Nut:1/2-13

$

$

Not available

5

Cub Cadet 00020508

Carriage Bolt:5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3005

Hex Cap Screw, 3/8 -16 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0520

Hex Cap Screw, 3/8-16 x 1-1/2

$4.99

$

In Stock, only 3 left!

0

11

Cub Cadet 714-0162

Cotter Pin, 5/32, 1.25

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01004659

Sulky Pin
(Superseded to 711-05731)

$

$

Not available

13

Cub Cadet 01005810

Hex Cap Screw:3/8-16 x 2.0

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02000402

Nut, 3/4-16, Hex Flange

$13.99

$

In Stock, only 2 left!

0

15

Cub Cadet 02000561-0637

Deck Lift Link

$

$

Not available

16

Cub Cadet 703-05971A-0637

Snow Blade

$183.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02001635

Rod Bearing Pivot Plate

$

$

Not available

18

Cub Cadet 02001659

Lift Rod Weldment
(Superseded to 02001659-0637)

Variations

02001659-0637

Cub Cadet 02001659-0637

ROD - LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 02001843

Spring, Blade Adjust

$

$

Not available

20

Cub Cadet 02001895

Hex Cap Screw, 3/4-16 x 3.00

$

$

Not available

21

Cub Cadet 02001912

Label, Warning

$

$

Not available

22

Cub Cadet 02001979

Rear Support Spacer

$

$

Not available

23

Cub Cadet 02002007

Bolt:3/8-16 x 4.50
(Superseded to 710-05456)

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005234

Snow Blade Frame Weldment
(Superseded to 02005234-0637)

Variations

02005234-0637

Cub Cadet 02005234-0637

FRAME WELDMENT - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 02005236

Lift Bar

$

$

Not available

26

Cub Cadet 02005305

Pivot Blade Weldment
(Superseded to 02005305-0637)

Variations

02005305-0637

Cub Cadet 02005305-0637

PIVOT BLADE WELDME - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 603-0810A-0637

Skid Shoe Assembly

$84.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 680-00026

Snow Blade Weldment
(Superseded to 680-00026-0637)

Variations

680-00026-0637

Cub Cadet 680-00026-0637

BLADE ASM - POWDER BLACK (0637)

$812.99

$

Usually ships in 3-6 days

0

$812.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 703-06856

Plow Bracket
(Superseded to 703-06856-0637)

Variations

703-06856-0637

Cub Cadet 703-06856-0637

BRACKET - PLOW - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 750-05139

Plow Spacer

$

$

Not available
