59A30042 (59A30042150) - Cub Cadet Power Assist Dump Hopper att A1933 Grass Container Parts Diagram

Power Assist Dump Hopper

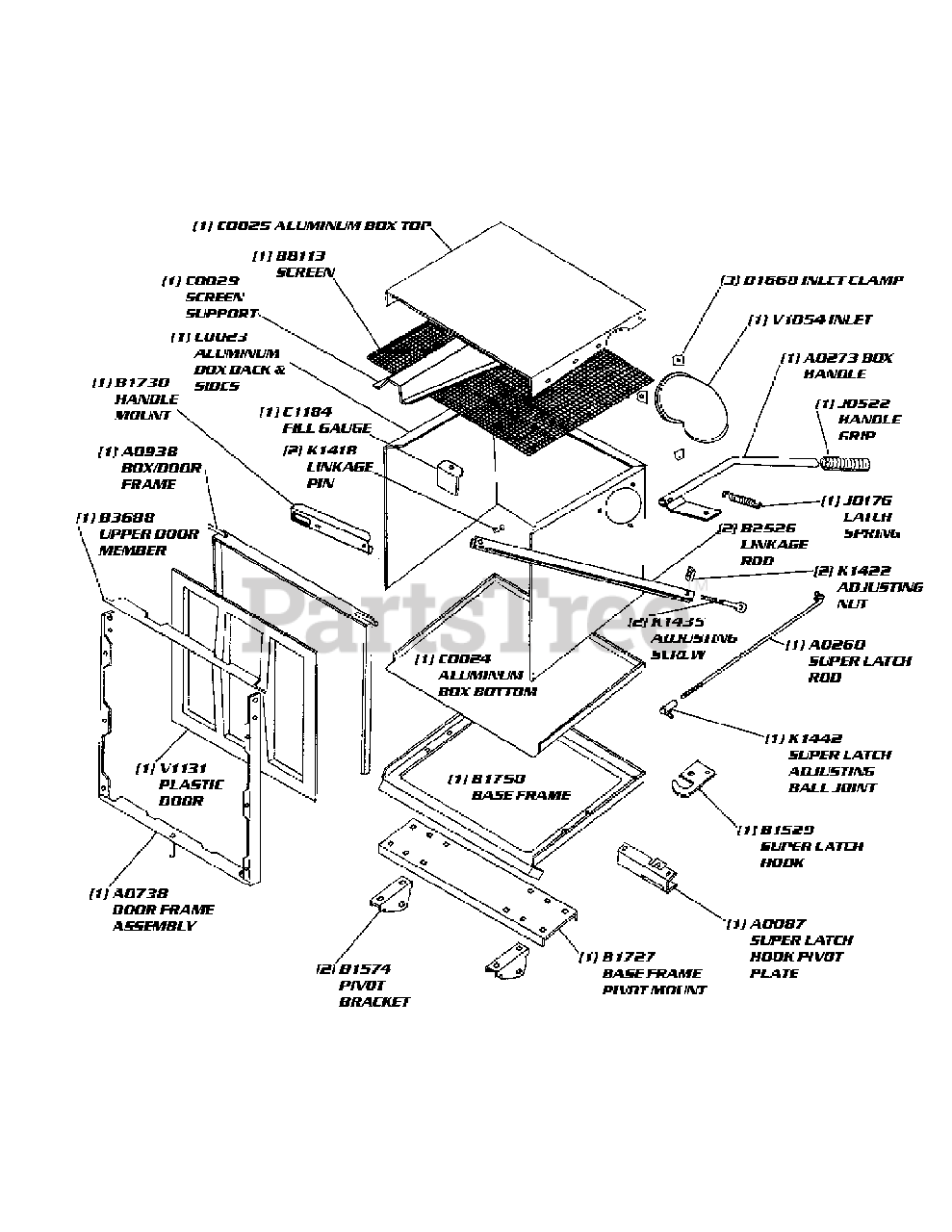

A1933 Grass Container Parts Diagram

  • Title

A1933

Cub Cadet PC-A1933

BOX ASM-12 CUBIC FT

$3020.99

$

Usually ships in 3-6 days

0

C0025

Cub Cadet PC-C0025

ALUMINUM BOX TOP

$453.99

$

Usually ships in 3-6 days

0

B8113

Cub Cadet PC-B8113

SCREEN

$110.99

$

Usually ships in 3-6 days

0

C0029

Cub Cadet PC-C0029

SCREEN SUPPORT

$67.99

$

Usually ships in 3-6 days

0

C0023

Cub Cadet PC-C0023

ALUMINUM BOX BACK & SIDES

$751.99

$

Usually ships in 3-6 days

0

C1184

Cub Cadet PC-C1184

FILL GUAGE

$

$

Currently unavailable

K1418

Cub Cadet PC-K1418

LINKAGE PIN

$6.49

$

Usually ships in 3-6 days

0

B1730

Cub Cadet PC-B1730

HANDLE MOUNT

$80.99

$

Usually ships in 3-6 days

0

A0938

Cub Cadet PC-A0938

BOX/DOOR FRAME

$200.99

$

Usually ships in 3-6 days

0

B3688

Cub Cadet PC-B3688

UPPER DOOR MEMBER

$85.99

$

Usually ships in 3-6 days

0

V1131

Cub Cadet PC-V1131

PLASTIC DOOR
(Superseded to PC-V1131-6)

$290.99

$

Usually ships in 3-6 days

0

A0738

Cub Cadet PC-A0738

DOOR FRAME ASSEMBLY

$311.99

$

Usually ships in 3-6 days

0

C0024

Cub Cadet PC-C0024

ALUMINUM BOX BOTTOM

$389.99

$

Usually ships in 3-6 days

0

B1750

Cub Cadet PC-B1750

BASE FRAME

$563.99

$

Usually ships in 3-6 days

0

B1574

Cub Cadet PC-B1574

PIVOT BRACKET

$47.99

$

Usually ships in 3-6 days

0

B1727

Cub Cadet PC-B1727

BASE FRAME PIVOT MOUNT

$90.99

$

Usually ships in 3-6 days

0

A0087

Cub Cadet PC-A0087

SUPER LATCH HOOK PIVOT PLATE

$56.99

$

Usually ships in 3-6 days

0

B1529

Cub Cadet PC-B1529

SUPER LATCH HOOK

$27.99

$

Usually ships in 3-6 days

0

K1442

Cub Cadet PC-K1442

SUPER LATCH ADJUSTING BALL JOINT

$9.49

$

Usually ships in 3-6 days

0

A0260

Cub Cadet PC-A0260

SUPER LATCH ROD

$50.99

$

Usually ships in 3-6 days

0

K1435

Cub Cadet PC-K1435

ADJUSTING SCREW

$9.49

$

Usually ships in 3-6 days

0

K1422

Cub Cadet PC-K1422

ADJUSTING NUT

$

$

Currently unavailable

B2526

Cub Cadet PC-B2526

LINKAGE ROD

$92.99

$

Usually ships in 3-6 days

0

J0176

Cub Cadet PC-J0176

LATCH SPRING

$17.99

$

Usually ships in 3-6 days

0

J0522

Cub Cadet PC-J0522

HANDLE GRIP

$11.99

$

Usually ships in 3-6 days

0

A0273

Cub Cadet PC-A0273

BOX HANDLE

$156.99

$

Usually ships in 3-6 days

0

V1054

Cub Cadet PC-V1054

INLET

$96.99

$

Usually ships in 3-6 days

0

B1668

Cub Cadet PC-B1668

INLET CLAMP PLATE

$7.49

$

Usually ships in 3-6 days

0
