59A30051 (59A30051150) - Cub Cadet Clam Shell Collection System (2016 & After) A2067_02 Idler Mount Assembly Parts Diagram
Clam Shell Collection System

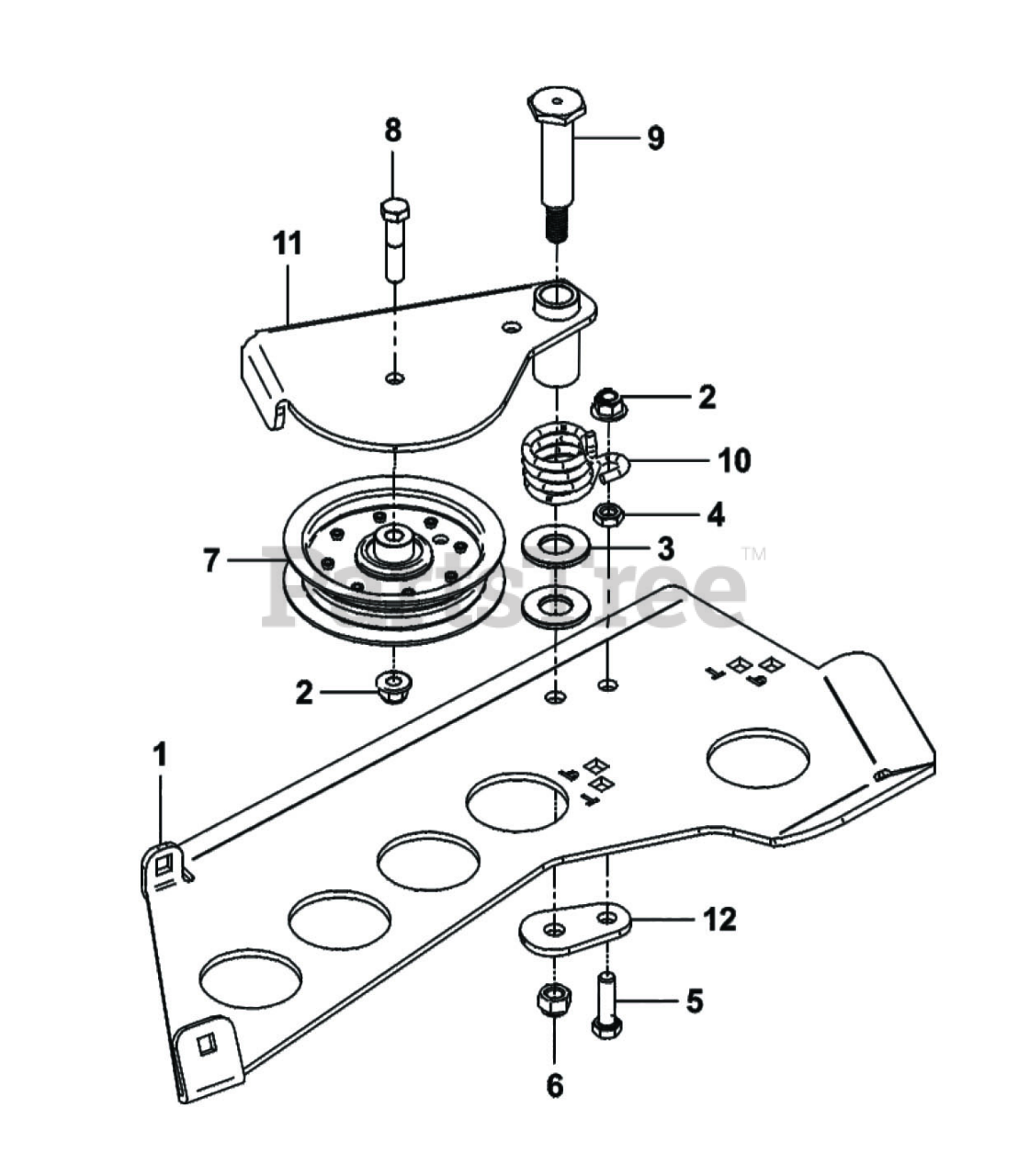

A2067_02 Idler Mount Assembly Parts Diagram
Cub Cadet PC-B0958-02
IDLER MOUNT PLATE
$142.99
$
Usually ships in 3-6 days
Cub Cadet PC-K2038
LOCKNUT-NYLON FLAN
$
$
Not available
Cub Cadet PC-K1463
FLAT WASHER
$11.99
$
Usually ships in 3-6 days
Cub Cadet PC-K1219
JAM NUT 3/8"-16
$4.49
$
Usually ships in 3-6 days
Cub Cadet PC-K1192
BOLT-HEX 3/8-16 X
$1.99
$
Usually ships in 3-6 days
Cub Cadet PC-K0329
NYLOK NUT 7/16"-14 (GR8)
$2.49
$
Usually ships in 3-6 days
Cub Cadet PC-M0003
IDLER PULLEY
$107.99
$
Usually ships in 3-6 days
Cub Cadet PC-K1462
SCREW 3/8"-16 x 1.75" (GR8)
$2.49
$
Usually ships in 3-6 days
Cub Cadet PC-K1464
SHOULDER BOLT 7/16"-14
$43.99
$
Usually ships in 3-6 days
Cub Cadet PC-J0024
SPRING
$19.99
$
Usually ships in 3-6 days
Cub Cadet PC-A2092
IDLER ARM ASSEMBLY
$130.99
$
Usually ships in 3-6 days
Cub Cadet PC-B0974
IDLER BASE PLATE
$10.99
$
Usually ships in 3-6 days
