59A30063 (59A30063150) - Cub Cadet PRO Z Heavy Duty Deck Bagger Fan Kit (2020) General Assembly Parts Diagram

PRO Z Heavy Duty Deck Bagger Fan Kit

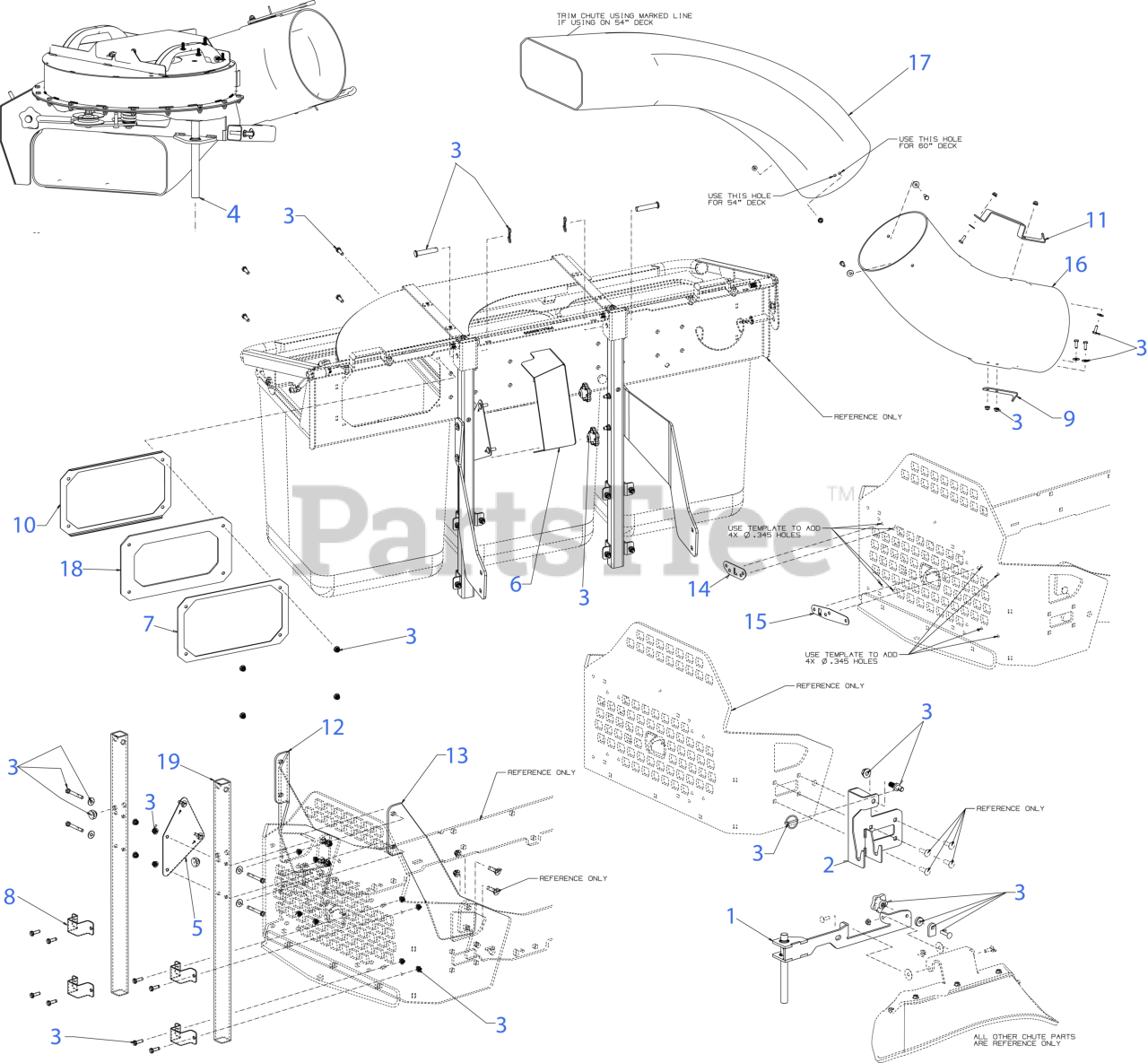

General Assembly Parts Diagram

  • Title

1

Cub Cadet 680-02054

CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$158.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-02234

DISCHARGE CHUTE HOLDER

Note: *CHOOSE COLOR WHEN ORDERING*

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-02254

SCREW PACK

$65.99

$

Usually ships in 3-6 days

0

4

BLOWER

Note: (See Separate Breakdown)

$

$

Not available

5

Cub Cadet 680-02514

STORAGE COVER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$23.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-02534

BELT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$111.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-22964

BAGGER GASKET PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-23724

BAGGER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$23.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-23964

CATCHER CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$18.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-24204

BAGGER GASKET BACK PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$37.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-24484

CHUTE HANDLE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-24784

SUPPORT BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$73.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-24785

SUPPORT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$73.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-25707A

TEMPLATE PLATE (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$12.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-25708A

TEMPLATE PLATE (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$12.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-23031

BAGGER CHUTE (LOWER)

$223.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-23032

BAGGER CHUTE (UPPER)

$243.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-06498

BAGGER GASKET

$30.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 749-08694

VERTICAL TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

$109.99

$

Usually ships in 3-6 days

0
