59A30065 (59A30065150) - Cub Cadet PRO Z 54" Mulch Kit General Assembly Parts Diagram

PRO Z 54" Mulch Kit

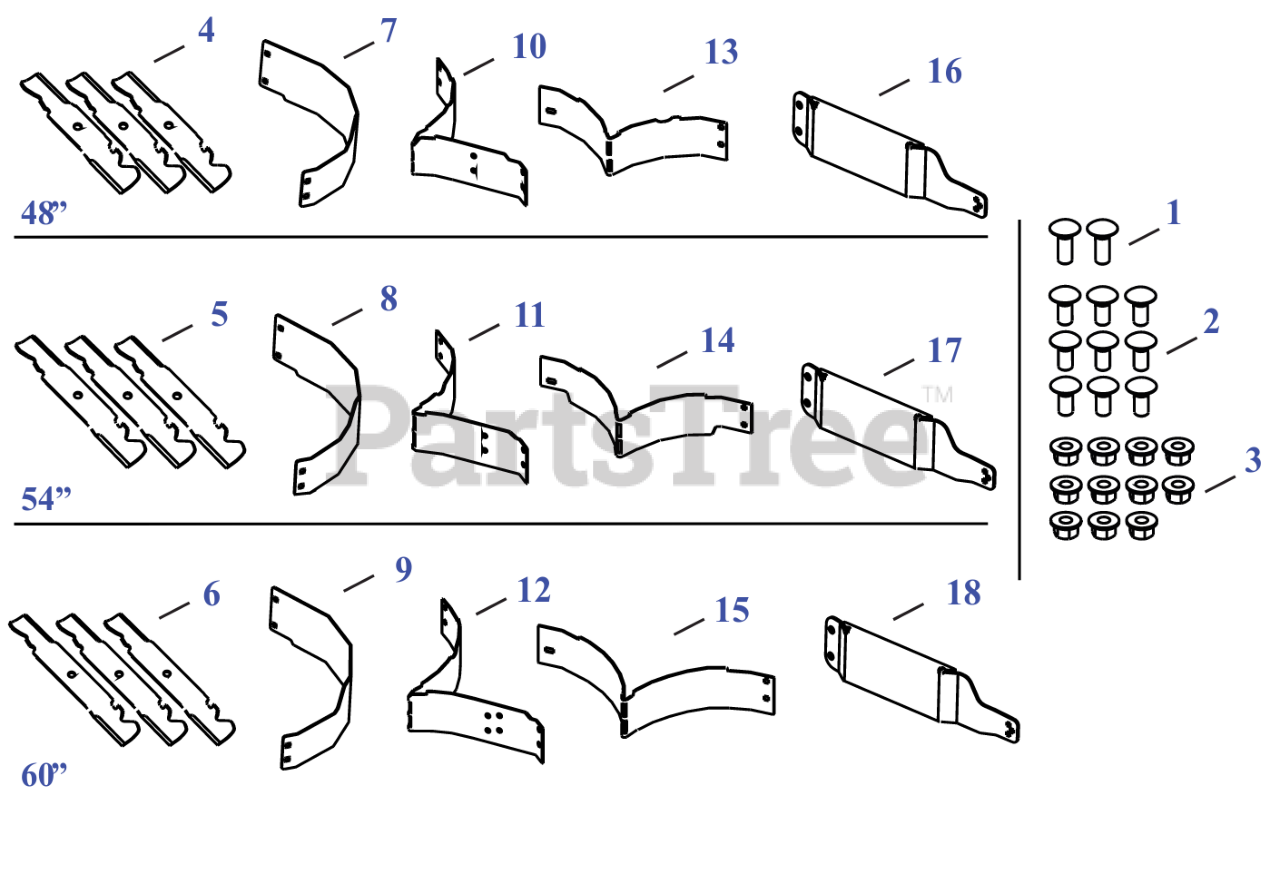

General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 742P04278A-X

17" XTREME BLADE (48" DECK)

$39.99

$

In Stock, Qty 6

0

5

Cub Cadet 01005380P-X

19" XTREME BLADE

$42.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01005381P-X

21" XTREME BLADE

$43.99

$

In Stock, only 4 left!

0

7

Cub Cadet 703-09529A

48" DISCHARGE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09529A-0637

BAFFLE-DISCHRG MULCH - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$52.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09530A

54" DISCHARGE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09530A-0637

BAFFLE-DISCHRG MULCH - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09531A

60" DISCHARGE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09531A-0637

BAFFLE-DISCHRG MULCH - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-07182A

MULCH BAFFLE (CENTER)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-07182A-0637

BFL-CENTER MULCH - POWDER BLACK (0637)

$78.99

$

In Stock, only 2 left!

0

$63.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-07194-0637

MULCH BAFFLE (CENTER)

$98.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-07178A-0637

60" MULCH BAFFLE (CENTER)(POWDER BLACK)

$92.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-07210A-0637

MULCH BAFFLE (LEFT)

$65.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-07193A-0637

MULCH BAFFLE (LEFT)

$63.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-07177A-0637

MULCH BAFFLE (LEFT)

$122.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-28471

PLT:DSCHRG:BLCK:48

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

17

Cub Cadet 703-28422

BLOCKER PLATE 54"

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

18

Cub Cadet 703-28421

BLOCKER PLATE 60"

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

48

Cub Cadet 59A30064150

PRO Z 48" MULCH KIT

$325.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 59A30065150

PRO Z 54" MULCH KIT

$325.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 59A30066150

PRO Z 60" MULCH KIT

$325.99

$

Usually ships in 3-6 days

0
