59A50008 (59A50008150) - Cub Cadet Single Wheel Sulky (2018) General Assembly Parts Diagram

Single Wheel Sulky

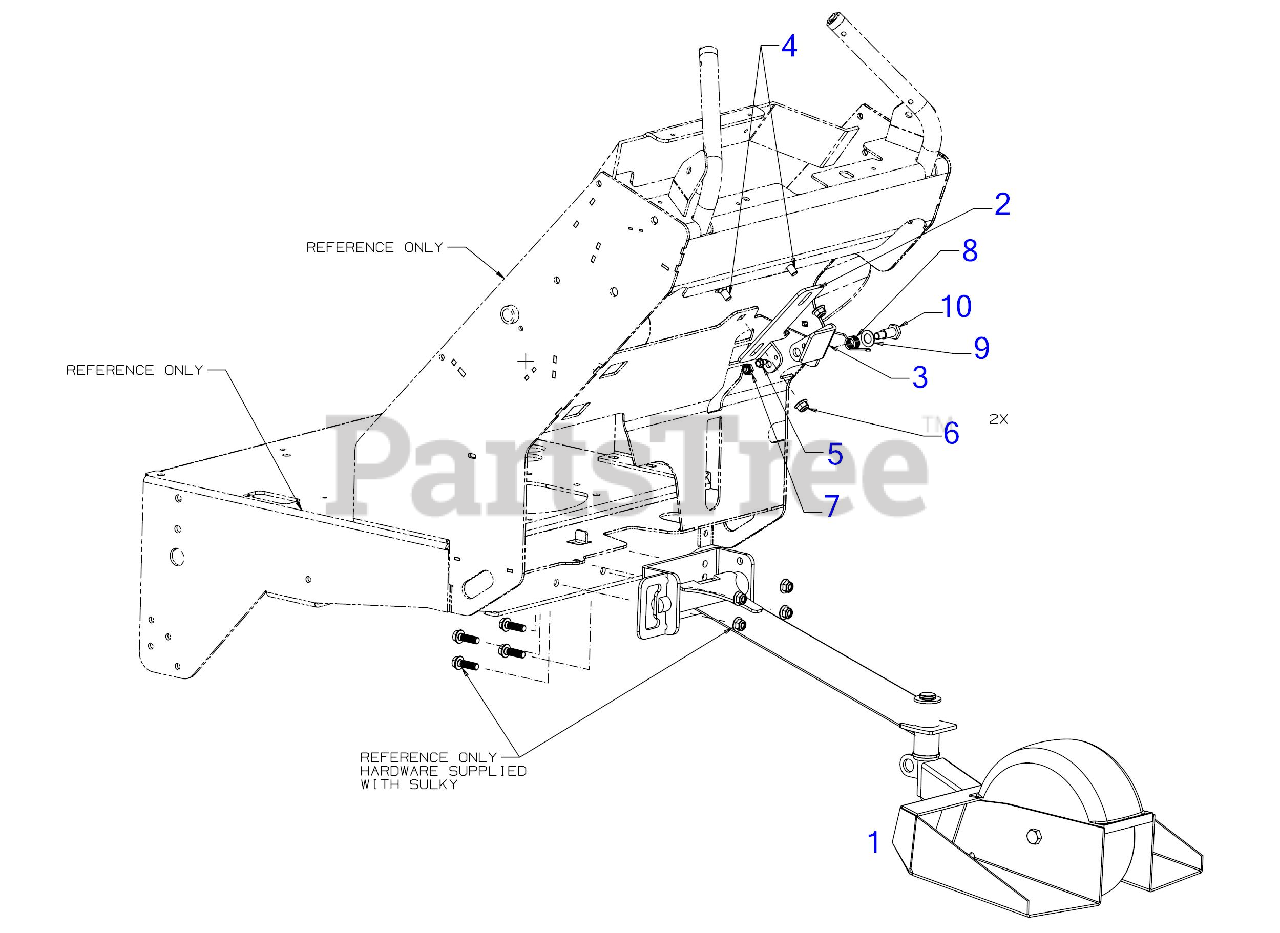

General Assembly Parts Diagram

  • Title

1

NOT SERVICEABLE

Note: (Order Complete Kit)

$

$

Not available

2

Cub Cadet 703-11436

SULKY BASE LATCH
(Superseded to 703-11436A)

Variations

Cub Cadet 703-11436-0637

BLACK SULKY BASE LATC - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-11439

SULKY LATCH LEVER

Variations

Cub Cadet 703-11439-0637

BLACK SULKY LATCH LEV - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 912-3020

TOP LOCK NUT

$5.99

$

In Stock, Qty 11

0

8

Cub Cadet 732-05392

TORSION SPRING

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 936-0160

FLAT WASHER

$3.99

$

In Stock, Qty 17

0

10

Cub Cadet 938-0145

SHOULDER SCREW .500

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 59A50008150

SINGLE WHEEL SULKY

$545.99

$

Usually ships in 3-6 days

0
