59A50009 (59A50009150) - Cub Cadet Double Wheel Sulky (2018) General Assembly Parts Diagram

Double Wheel Sulky

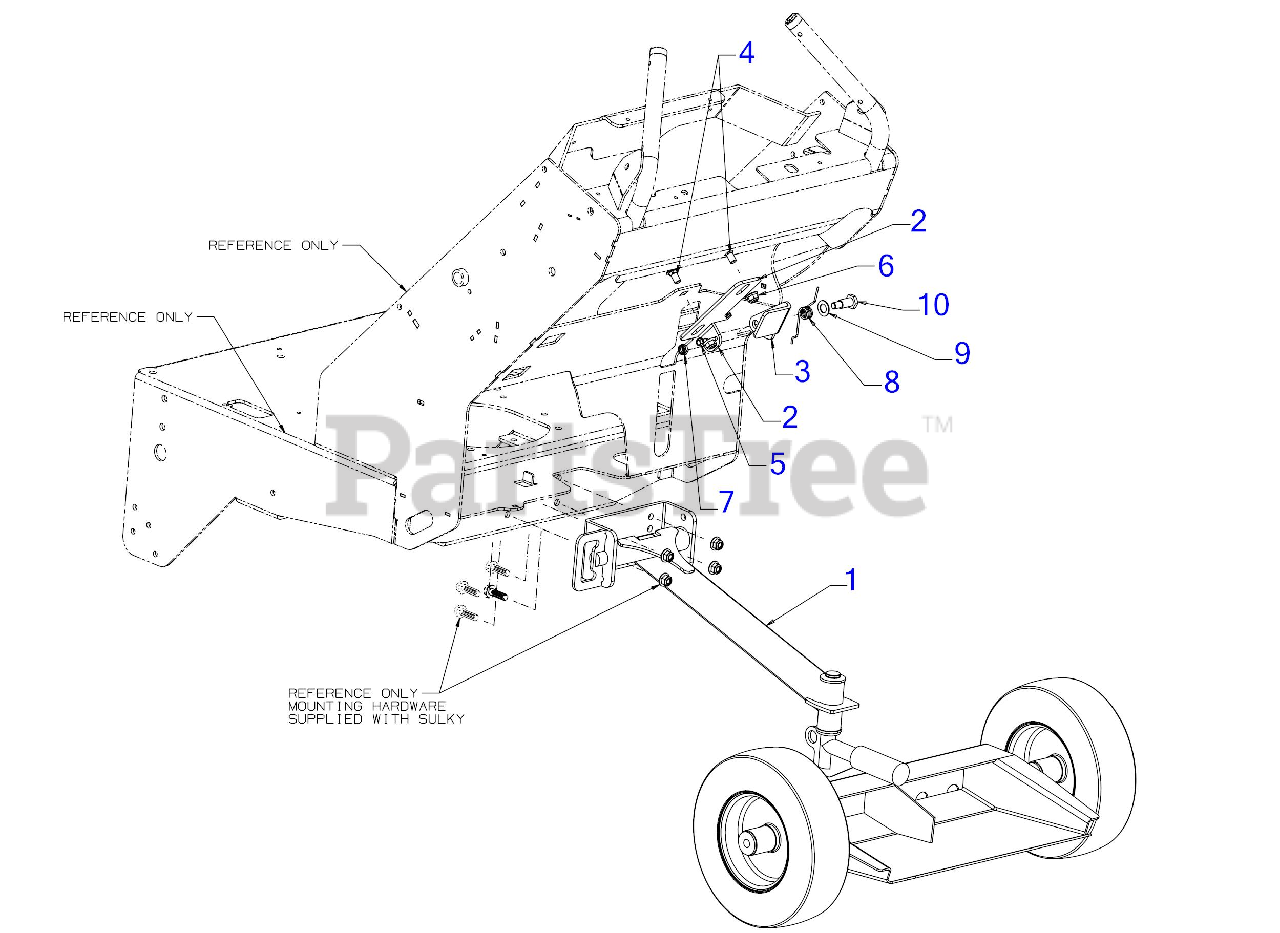

General Assembly Parts Diagram

  • Title

1

NOT SERVICEABLE

Note: (Order Complete Kit)

$

$

Not available

2

Cub Cadet 703-11436

SULKY BASE LATCH
(Superseded to 703-11436A)

Variations

703-11436-0637

Cub Cadet 703-11436-0637

BLACK SULKY BASE LATC - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-11439

SULKY LATCH LEVER

Variations

703-11439-0637

Cub Cadet 703-11439-0637

BLACK SULKY LATCH LEV - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 912-3020

TOP LOCK NUT

$6.99

$

In Stock, Qty 9

0

8

Cub Cadet 732-05392

TORSION SPRING

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 936-0160

FLAT WASHER

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 938-0145

SHOULDER SCREW .500

$7.49

$

In Stock, only 1 left!

0

Cub Cadet 59A50009150

TWO WHEEL SULKY

$639.99

$

Usually ships in 3-6 days

0
