59A60002 (59A60002750) - Cub Cadet Tree Spray Gun General Assembly Parts Diagram

Tree Spray Gun

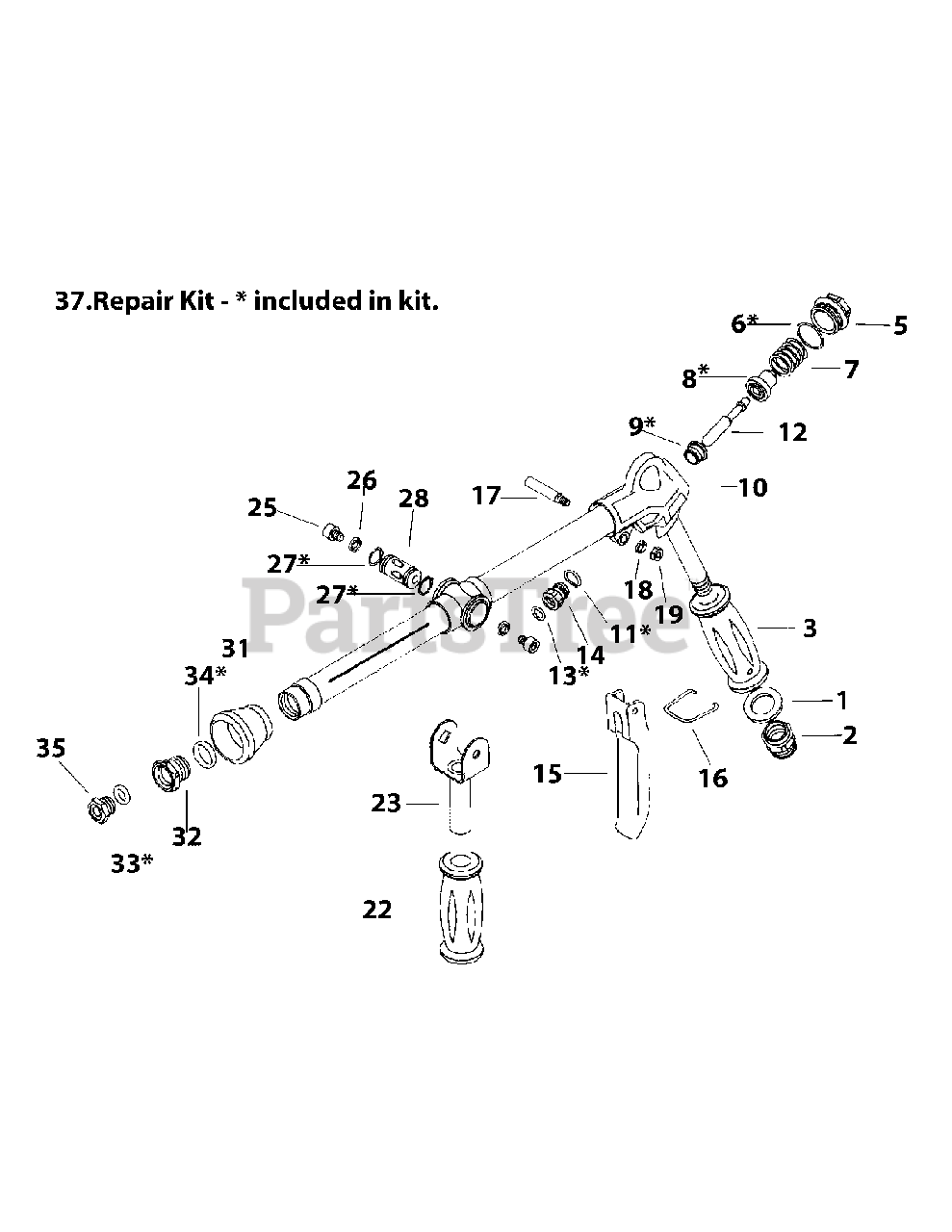

General Assembly Parts Diagram

  • Title

1

Cub Cadet HY-9920-232

Washer

$

$

Not available

2

Cub Cadet HY-9920-230B

Inlet Port

$

$

Not available

3

Cub Cadet HY-9920-193

Hand Grip

$

$

Not available

5

Cub Cadet N/A

Plug

$

$

Currently unavailable

6

Cub Cadet HY-9920-3100

O-ring

Note: NLA

$

$

Currently unavailable

7

Cub Cadet HY-9920-233

Spring

$

$

Not available

8

Cub Cadet N/A

Poppet

$

$

Currently unavailable

9

Cub Cadet N/A

Seat

$

$

Currently unavailable

10

Cub Cadet HY-9920-716153

Body, Welded Assy

$

$

Not available

11

Cub Cadet N/A

O-ring

$

$

Currently unavailable

12

Cub Cadet HY-9920-239

Plunger

$

$

Not available

13

Cub Cadet N/A

O-ring

$

$

Currently unavailable

14

Cub Cadet HY-9920-241

Guide

$

$

Not available

15

Cub Cadet HY-9920-246

Trigger

$

$

Not available

16

Cub Cadet HY-9920-245C

Locking Clip

$

$

Not available

17

Cub Cadet HY-9920-194

Pin

$

$

Not available

18

Cub Cadet HY-9920-1751

Washer

$

$

Not available

19

Cub Cadet HY-9920-5587-68

Nut

$

$

Not available

22

Cub Cadet HY-9920-192

Front Grip

$

$

Not available

23

Cub Cadet HY-9920-247

Bracket

$

$

Not available

25

Cub Cadet HY-9920-5931

Bolt

$

$

Not available

26

Cub Cadet HY-9920-1751

Washer

$

$

Not available

27

Cub Cadet N/A

O-ring

$

$

Currently unavailable

28

Cub Cadet HY-9920-237

Regulator

$

$

Not available

31

Cub Cadet HY-9920-183

Shroud

$

$

Not available

32

Cub Cadet HY-9920-158

Nozzle Retainer

$

$

Not available

33

Cub Cadet N/A

O-ring

$

$

Currently unavailable

34

Cub Cadet N/A

O-ring

$

$

Currently unavailable

35

Cub Cadet HY-3385-2300

NOZZLE 2.3MM OR .091in.

$

$

Not available

35

Cub Cadet HY-3385-3000

NOZZLE 3MM OR .118IN.

$

$

Not available

35

Cub Cadet HY-3385-3500

NOZZLE 3.5MM OR .138in.

$

$

Not available

35

Cub Cadet HY-3385-4000

NOZZLE 4MM OR .158in.

$

$

Not available

35

Cub Cadet HY-3385-4500

NOZZLE 4.5MM OR .177in.

$

$

Not available

35

Cub Cadet HY-3385-5000

NOZZLE 5MM OR .197in.

$

$

Not available

35

Cub Cadet HY-3385-5500

NOZZLE 5.5MM OR .217in.

$

$

Not available

35

Cub Cadet HY-3385-6000

NOZZLE 6MM OR .236in.

$

$

Not available

35

Cub Cadet HY-3385-7000

NOZZLE 7MM OR .276in.

$

$

Not available

36

Cub Cadet HY-9910-110130

Hose Barb, wing nut, gasket

$23.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HY-9920-KIT1011

Repair Kit

$

$

Not available

Plug

Note: Not shown

$

$

Not available

Poppet

Note: Not shown

$

$

Not available

Seat

Note: Not shown

$

$

Not available

O-ring

Note: Not shown

$

$

Not available

O-ring

Note: Not shown

$

$

Not available

O-ring

Note: Not shown

$

$

Not available

O-ring

Note: Not shown

$

$

Not available

O-ring

Note: Not shown

$

$

Not available
