59AA101-195 - Yard-Man String Trimmer Accessory Engine Assembly Parts Diagram

String Trimmer Accessory

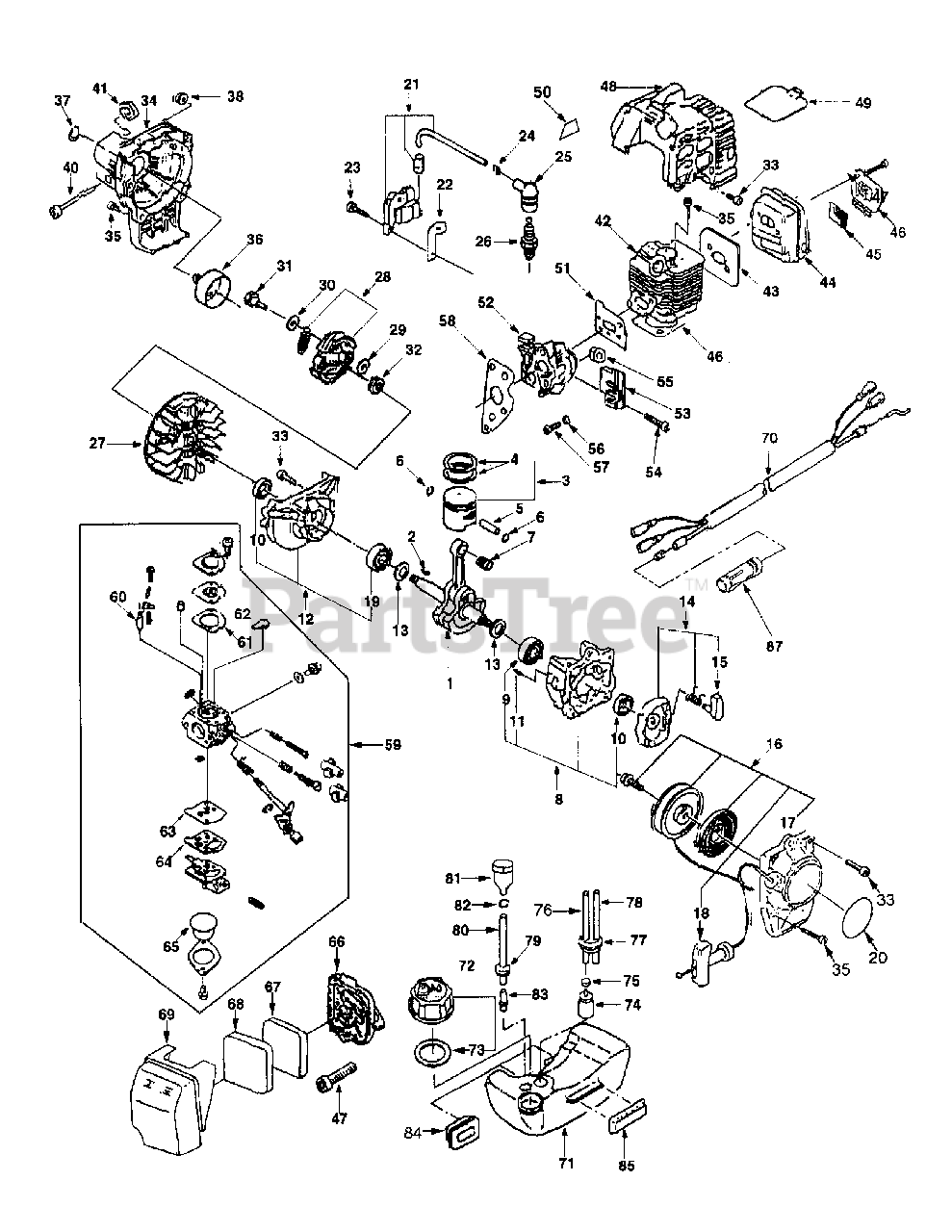

Engine Assembly Parts Diagram

  • Title

1

MTD IM-115253421

Crankshaft

$

$

Not available

2

MTD IM-034309031

Key

$

$

Not available

3

MTD IM-115013300

Piston Ass'y

$

$

Not available

4

MTD IM-115113650

Ring, Piston

$

$

Not available

5

MTD IM-115323130

Pin, Piston

$

$

Not available

6

MTD IM-198343210

Clip, Piston Pin

$

$

Not available

7

MTD IM-042709007

Needle Bearing

$

$

Not available

8

MTD IM-110035180

Crankcase Ass'y

$

$

Not available

9

MTD IM-040106000

Ball Bearing; 6000

$

$

Not available

10

MTD IM-050209097

Oil Seal

$

$

Not available

11

MTD IM-030500512

Dowel Pin

$

$

Not available

12

MTD IM-110035131

Crankcase Ass'y

$

$

Not available

13

MTD IM-199283050

Shim; 0.1

$

$

Not available

13

MTD IM-199283060

Shim; 0.2

$

$

Not available

14

MTD IM-155353090

Pulley Ass'y, Starter

$

$

Not available

15

MTD IM-155163110

Ratchet

$

$

Not available

16

MTD IM-155103461

Recoil Ass'y

$117.99

$

Usually ships in 3-6 days

0

17

MTD IM-155213050

Rope, Starter

$

$

Not available

18

MTD IM-155223061

Knob, Starter

Note: NLA

$

$

Not available

19

MTD IM-040106200

Ball Bearing; 6200

$

$

Not available

20

MTD IM-190284860

Name Plate

$

$

Not available

21

MTD IM-150053291

Coil Ass'y, Ignition

$

$

Not available

22

MTD IM-199513451

Insulator

$

$

Not available

23

MTD IM-010709018

Bolt; M4 X 20

$3.49

$

In Stock, Qty 5

0

24

MTD IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

25

MTD IM-150413033

Cap, Plug

$

$

Not available

26

MTD IM-150265091

Spark, Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

27

MTD IM-150103460

Flywheel, Magneto

$

$

Not available

28

MTD IM-170033260

Clutch Ass'y

$

$

Not available

29

MTD IM-199213150

Spacer

$

$

Not available

30

MTD IM-199213221

Spacer

$

$

Not available

31

MTD IM-199433071

Bolt

$

$

Not available

32

MTD IM-020109118

Nut

$

$

Not available

33

MTD IM-010709009

Bolt; M5 X 20

$

$

Not available

34

MTD IM-175103450

Housing, Blower

Note: NLA

$

$

Not available

35

MTD IM-010709008

Bolt; M5 X 16

$3.49

$

In Stock, only 2 left!

0

36

MTD IM-170333220

Drum, Clutch

$

$

Not available

37

MTD IM-036100010

Snap Ring; S-10

$

$

Not available

38

MTD IM-298111010

Grommet

$

$

Not available

40

MTD IM-010709011

Bolt; M5 X 30

$

$

Not available

41

MTD IM-020109131

Nut

$

$

Not available

42

MTD IM-110213550

Cylinder

$

$

Not available

43

MTD n/a

Gasket, Muffler

Note: See Ref. 86

$

$

Currently unavailable

44

MTD IM-135403500

Muffler

$

$

Not available

45

MTD IM-135493090

Arrester

$12.99

$

In Stock, only 1 left!

0

46

MTD IM-110993390

Gasket

$

$

Not available

47

MTD IM-010709016

Bolt; M5 X 48

$3.49

$

Usually ships in 3-6 days

0

48

MTD IM-175153960

Cowling, Cylinder

Note: NLA

$

$

Not available

49

MTD IM-135433470

Baffle Plate

$

$

Not available

50

MTD IM-190333290

Trade Mark

$

$

Not available

51

MTD n/a

Gasket, Insulator

Note: See Ref. 86

$

$

Currently unavailable

52

MTD IM-199513501

Insulator

$

$

Not available

53

MTD IM-125543100

Adjuster

$

$

Not available

54

MTD IM-010709006

Bolt; M5 X 12

$

$

Not available

55

MTD IM-020100005

Nut

$

$

Not available

56

MTD IM-026100005

Washer

Note: NLA

$

$

Not available

57

MTD IM-010709010

Bolt; M5 X 25

$

$

Not available

58

MTD n/a

Gasket, Carburetor

Note: See Ref. 86

$

$

Currently unavailable

59

MTD IM-130104240

Carburetor Ass'y

$

$

Not available

60

MTD IM-130153240

Valve, Float

$

$

Not available

61

MTD IM-130123350

Gasket

$

$

Not available

62

MTD IM-130283357

Diaphragm, Metering

$

$

Not available

63

MTD IM-130513409

Diaphragm, Pump

$

$

Not available

64

MTD IM-130513413

Gasket

$10.99

$

Usually ships in 3-6 days

0

65

MTD IM-198113870

Rubber

$16.99

$

Usually ships in 3-6 days

0

66

MTD IM-135713491

Case, Air Silencer

$

$

Not available

67

MTD IM-135263311

Element(B), Filter Air

$8.99

$

Usually ships in 3-6 days

0

68

MTD IM-135263300

Element(A), Filter Air

$8.99

$

Usually ships in 3-6 days

0

69

MTD IM-135713480

Case, Cap

$

$

Not available

70

MTD IM-125504680

Wire Compl, Throttle

$

$

Not available

71

MTD IM-160113270

Tank, Fuel

$43.99

$

Usually ships in 3-6 days

0

72

MTD IM-160033201

Cap Ass'y, Fuel Tank

$10.99

$

In Stock, Qty 12

0

73

MTD IM-160993100

Gasket

$3.99

$

In Stock, Qty 8

0

74

MTD IM-130303290

Filter, Fuel

$14.99

$

Usually ships in 3-6 days

0

75

MTD IM-198343181

Clip

$3.49

$

Usually ships in 3-6 days

0

76

MTD IM-130983060

Hose

$

$

Not available

77

MTD IM-198113730

Rubber

$10.99

$

In Stock, only 1 left!

0

78

MTD IM-068209150

Hose

Note: NLA

$

$

Not available

79

MTD IM-198113560

Rubber

$

$

Not available

80

MTD IM-068209177

Hose

$

$

Not available

81

MTD IM-160043121

Valve Assy, Reversing

$

$

Not available

82

MTD IM-198343060

Clip

$

$

Not available

83

MTD IM-130443121

Connector

$9.99

$

Usually ships in 3-6 days

0

84

MTD IM-198113701

Rubber

$

$

Not available

85

MTD IM-198113740

Rubber

Note: NLA

$

$

Not available

86

MTD IM-135994150

Gasket Kit

$

$

Not available

87

MTD IM-125683062

Wire Holder

$9.99

$

Usually ships in 3-6 days

0

88

MTD IM-155183121

Reel

$

$

Not available

89

MTD IM-155263270

Spring, Spiral

$38.99

$

Usually ships in 3-6 days

0

90

MTD IM-155343050

Screw

$

$

Not available

91

MTD IM-155263261

Spring, Return

$

$

Not available
