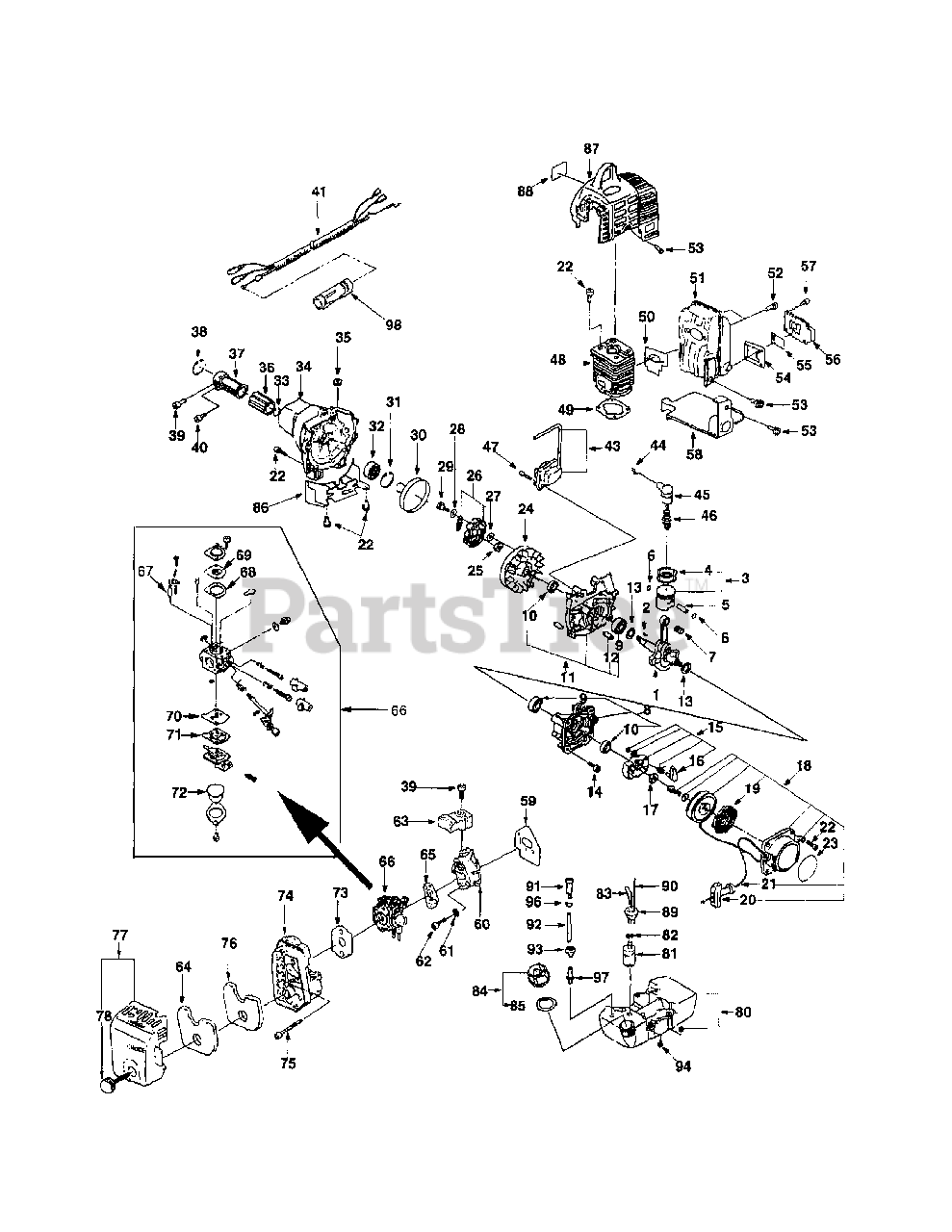

59AA104-195 - Yard-Man String Trimmer Accessory Engine Assembly Parts Diagram

String Trimmer Accessory

Engine Assembly Parts Diagram

  • Title

1

MTD IM-115253440

Crankshaft

$

$

Not available

2

MTD IM-034309031

Key

$

$

Not available

3

MTD IM-115013280

Piston Ass'y

$

$

Not available

4

MTD IM-115113730

Ring, piston

$

$

Not available

5

MTD IM-115323030

Pin, piston

$

$

Not available

6

MTD IM-198343040

Clip, piston Pin

$

$

Not available

7

MTD IM-042709006

Needle Bearing

$

$

Not available

8

MTD IM-110035150

Crankcase Ass'y

$

$

Not available

9

MTD IM-040106201

Ball Bearing; 6201

$

$

Not available

10

MTD IM-050209070

Oil Seal

$7.99

$

Usually ships in 3-6 days

0

11

MTD IM-110035160

Crankcase Ass'y

$

$

Not available

12

MTD IM-030500512

Dowel Pin

$

$

Not available

13

MTD IM-199283030

Shim; 0.1

$

$

Not available

13

MTD IM-199283040

Shim; 0.2

$

$

Not available

14

MTD IM-010709011

Bolt; M5 X 30

$

$

Not available

15

MTD IM-155353060

Pulley Assembly, Starter

$

$

Not available

16

MTD IM-155163081

Ratchet

$

$

Not available

17

MTD IM-020700008

Nut

$

$

Not available

18

MTD IM-155103341

Recoil Ass'y

$

$

Not available

19

MTD IM-155263210

Spring, spiral

$

$

Not available

20

MTD IM-155223050

Knob, starter

$

$

Not available

21

MTD IM-155213090

Rope, starter

$

$

Not available

22

MTD IM-010709008

Bolt; M5 X 16

$3.49

$

In Stock, only 2 left!

0

23

MTD IM-190284880

Name Plate

Note: NLA

$

$

Not available

24

MTD IM-150103351

Flywheel, Magneto

$

$

Not available

25

MTD IM-020109107

Nut

$

$

Not available

26

MTD IM-170033400

Clutch Ass'y

$

$

Not available

27

MTD IM-199213071

Spacer

$

$

Not available

28

MTD IM-199213180

Spacer

$

$

Not available

29

MTD IM-199433082

Bolt

$

$

Not available

30

MTD IM-170333140

Drum, clutch

$

$

Not available

31

MTD IM-036500035

Snap Ring; R-35

$

$

Not available

32

MTD IM-040126202

Ball Bearing; 6202zz

$

$

Not available

33

MTD IM-036100015

Snap Ring; S-15

$

$

Not available

34

MTD IM-175114510

Housing, Blower

Note: NLA

$

$

Not available

35

MTD IM-298111010

Grommet

$

$

Not available

36

MTD IM-198113810

Rubber

$

$

Not available

37

MTD IM-165983130

Pipe

$

$

Not available

38

MTD IM-036550047

Snap Ring; R-47

$

$

Not available

39

MTD IM-010709015

Bolt; M4 X 12

$

$

Not available

40

MTD IM-010709013

Bolt; M6 X 20

$

$

Not available

41

MTD IM-125504840

Wire Compl, Throttle

$

$

Not available

43

MTD IM-150053320

Coil Ass'y, Ignition

$

$

Not available

44

MTD IM-198213300

Spring

$2.99

$

In Stock, only 1 left!

0

45

MTD IM-150413033

Cap, Plug

$

$

Not available

46

MTD IM-150265091

Spark, Plug
(Superseded to BPMR7A)

$3.49

$

In Stock, Qty 20+

0

47

MTD IM-010709009

Bolt; M5 X 20

$

$

Not available

48

MTD IM-110213540

Cylinder

$

$

Not available

49

MTD IM-110993410

Gasket, Cylinder

$

$

Not available

50

MTD n/a

Gasket, Muffler

Note: See Ref. 95

$

$

Currently unavailable

51

MTD IM-135403492

Muffler

$

$

Not available

52

MTD IM-010709040

Bolt; M5 X 58

$

$

Not available

53

MTD IM-010709006

Bolt; M5 X 12

$

$

Not available

54

MTD n/a

Gasket, Baffle Plate

Note: See Ref. 95

$

$

Currently unavailable

55

MTD IM-135493010

Arrester

$4.49

$

In Stock, only 1 left!

0

56

MTD IM-135433570

Baffle Plate, Outer

$

$

Not available

57

MTD IM-010709014

Bolt; M4 X 6

$

$

Not available

58

MTD IM-135433560

Baffle Plate

$

$

Not available

59

MTD n/a

Gasket, Insulator

Note: See Ref. 95

$

$

Currently unavailable

60

MTD IM-199513550

Insulator

$

$

Not available

61

MTD IM-026100005

Washer

Note: NLA

$

$

Not available

62

MTD IM-010709010

Bolt; M5 X 25

$

$

Not available

63

MTD IM-125543090

Adjuster

$

$

Not available

64

MTD IM-135263370

Element(8), filter Air

$

$

Not available

65

MTD n/a

Gasket, Carburetor

Note: See Ref. 95

$

$

Currently unavailable

66

MTD IM-130104210

Carburetor Ass'y

$

$

Not available

67

MTD IM-130153210

Valve, Float

$

$

Not available

68

MTD IM-130123350

Gasket

$

$

Not available

69

MTD IM-130283357

Diaphragm, Metering

$

$

Not available

70

MTD IM-130513409

Diaphragm, Pump

$

$

Not available

71

MTD IM-130513410

Gasket

$

$

Not available

72

MTD IM-198113870

Rubber

$16.99

$

Usually ships in 3-6 days

0

73

MTD n/a

Gasket, Air Silencer

Note: See Ref. 95

$

$

Currently unavailable

74

MTD IM-135713373

Case, Air Silencer

$

$

Not available

75

MTD IM-010709016

Bolt; M5 X 48

$3.49

$

Usually ships in 3-6 days

0

76

MTD IM-135263380

Element(A), Filter Air

$

$

Not available

77

MTD IM-135713393

Case, Cap

$

$

Not available

78

MTD IM-199433090

Bolt

$

$

Not available

80

MTD IM-160103250

Tank, Fuel

Note: NLA

$

$

Not available

81

MTD IM-130303290

Filter, Fuel

$14.99

$

Usually ships in 3-6 days

0

82

MTD IM-198343181

Clip

$3.49

$

Usually ships in 3-6 days

0

83

MTD IM-198163080

Hose

Note: NLA

$

$

Not available

84

MTD IM-160033201

Cap Ass'y, Fuel Tank

$10.99

$

In Stock, Qty 12

0

85

MTD IM-160993100

Gasket

$3.99

$

In Stock, Qty 8

0

86

MTD IM-175973371

Stay, Stand

Note: NLA

$

$

Not available

87

MTD IM-175153980

Cowling, Cylinder

Note: NLA

$

$

Not available

88

MTD IM-190333290

Trade Mark

$

$

Not available

89

MTD IM-198113730

Rubber

$10.99

$

In Stock, only 1 left!

0

90

MTD IM-068209150

Hose

Note: NLA

$

$

Not available

91

MTD IM-160043121

Valve Assy, Reversing

$

$

Not available

92

MTD IM-068209176

Hose

$

$

Not available

93

MTD IM-198113560

Rubber

$

$

Not available

94

MTD IM-010709017

Bolt; M5 X 14

Note: NLA

$

$

Not available

95

MTD IM-135994170

Gasket Kit

$

$

Not available

96

MTD IM-198343060

Clip

$

$

Not available

97

MTD IM-130443121

Connector

$9.99

$

Usually ships in 3-6 days

0

98

MTD IM-125683062

Holder, Wire

$9.99

$

Usually ships in 3-6 days

0

99

MTD IM-155183090

Reel

$

$

Not available

100

MTD IM-155343050

Screw

$

$

Not available

101

MTD IM-155263200

Spring, Return

$

$

Not available
