59M - Cub Cadet Shredder/Grinder Attachment (1973 - 1974) Drive and Mounting -Built 1973 and 1974- Parts Diagram

Shredder/Grinder Attachment

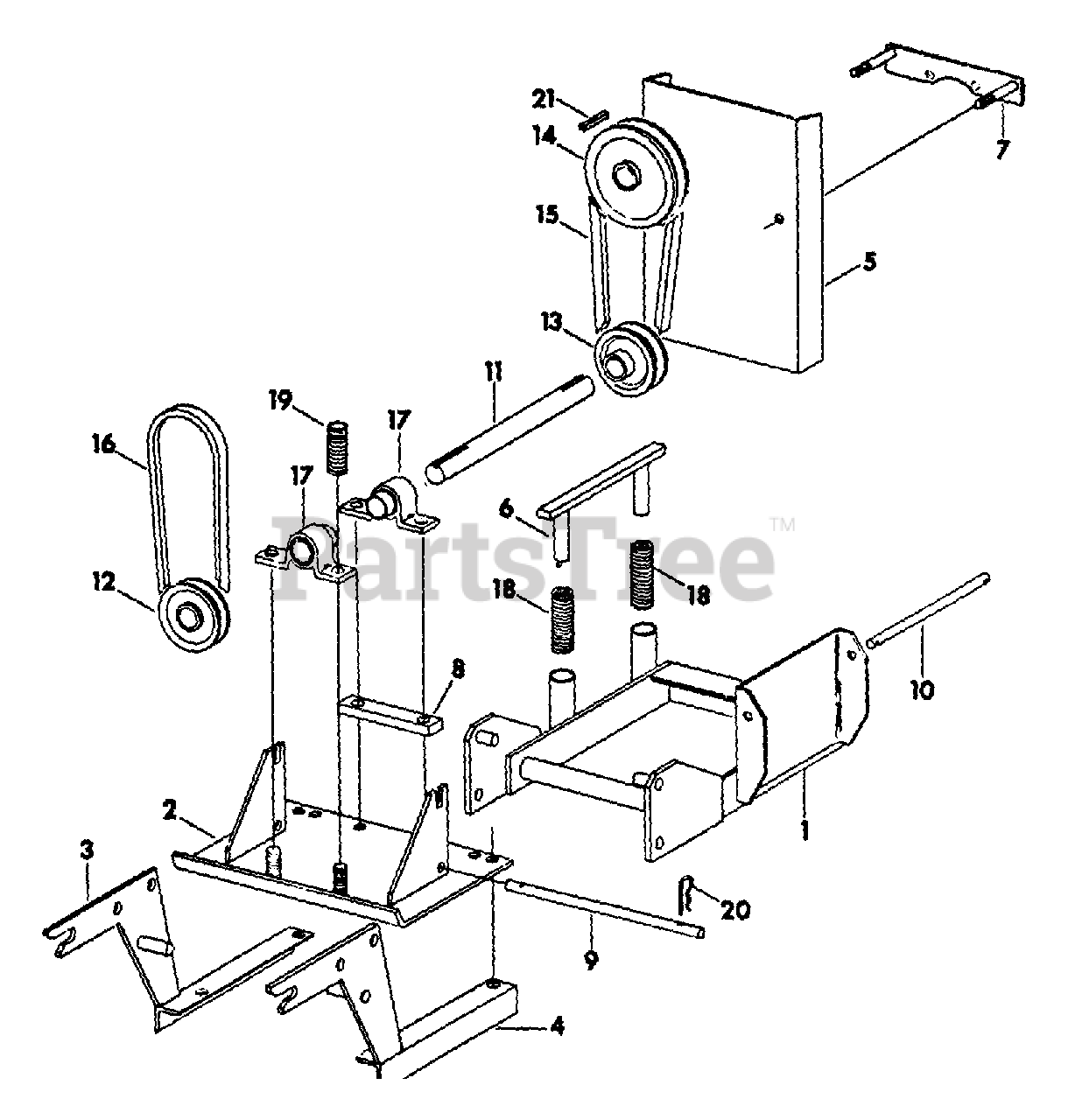

Drive and Mounting -Built 1973 and 1974- Parts Diagram

  • Title

1

59623-C1

FRAME

$

$

Not available

2

59624-C1

PLATE BRG

$

$

Not available

18494-R1

BOLT, 3/8 X 1 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

3

59625-C1

BRACKET, MOUNTING LH

$

$

Not available

4

Cub Cadet IH-59626-C1

BRACKET, MOUNTING RH

$

$

Currently unavailable

IH-17433-R1

BOLT, 1/2 X 1 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 ZND REG LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

5

59627-C1

SHIELD

$

$

Not available

Cub Cadet IH-142745

NUT, 5/16-18 ZND WING

$

$

Not available

6

59628-C1

SUPPORT, BELT TENSIONING

$

$

Not available

7

59629-C1

BRACKET, SHIELD

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

59630-C1

SPACER

$

$

Not available

18780-R1

BOLT, 3/8 X 1-3/4 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-22655-R1

WASHER, .406 X .812 X .051 CDP
(Superseded to 936-0140)

$

$

Not available

Cub Cadet 120382

WASHER, 3/8 ZND REG LOCK

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

9

59631-C1

PIN, FRAME MOUNTING

$

$

Not available

10

59632-C1

PIN, SHREDDER MOUNTING

$

$

Not available

11

59633-C1

SHAFT, DRIVE

$

$

Not available

12

Cub Cadet IH-59634-C1

PULLEY

$

$

Currently unavailable

192450

SCREW, 5/16-18 X 5/16 ZND HEX-SOC-HD CUP-PT SET

$

$

Not available

13

Cub Cadet IH-59559-C1

PULLEY, 4 IN. DIAMETER

$

$

Not available

192450

SCREW, 5/16-18 X 5/16 ZND HEX-SOC-HD CUP-PT SET

$

$

Not available

14

59635-C1

PULLEY

$

$

Not available

192450

SCREW, 5/16-18 X 5/16 ZND HEX-SOC-HD CUP-PT SET

$

$

Not available

15

Cub Cadet IH-176106-H1

V-BELT, 1/2 TOP WIDTH X 42 IN. OUTSIDE CIRCUMFERENCE

$

$

Not available

16

Cub Cadet IH-59636-C1

V-BELT, 1/2 TOP WIDTH X 30 IN. OUTSIDE CIRCUMFERENCE

$

$

Currently unavailable

17

Cub Cadet IH-59637-C91

BEARING, PILLOW BLOCK BALL

$

$

Currently unavailable

18

59638-C1

SPRING

$

$

Not available

19

59639-C1

SPRING

$

$

Not available

Cub Cadet IH-22655-R1

WASHER, .406 X .812 X .051 CDP
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE
(Superseded to 914-3003)

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet IH-Q53

KEY. 1/4 X 1 SQ PARALLEL
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0
