59M - Cub Cadet Shredder/Grinder Attachment (1974 - 1977) 59M Shredder-Grinder Hopper & Frame-Built 1974 To 1977 Parts Diagram

Shredder/Grinder Attachment

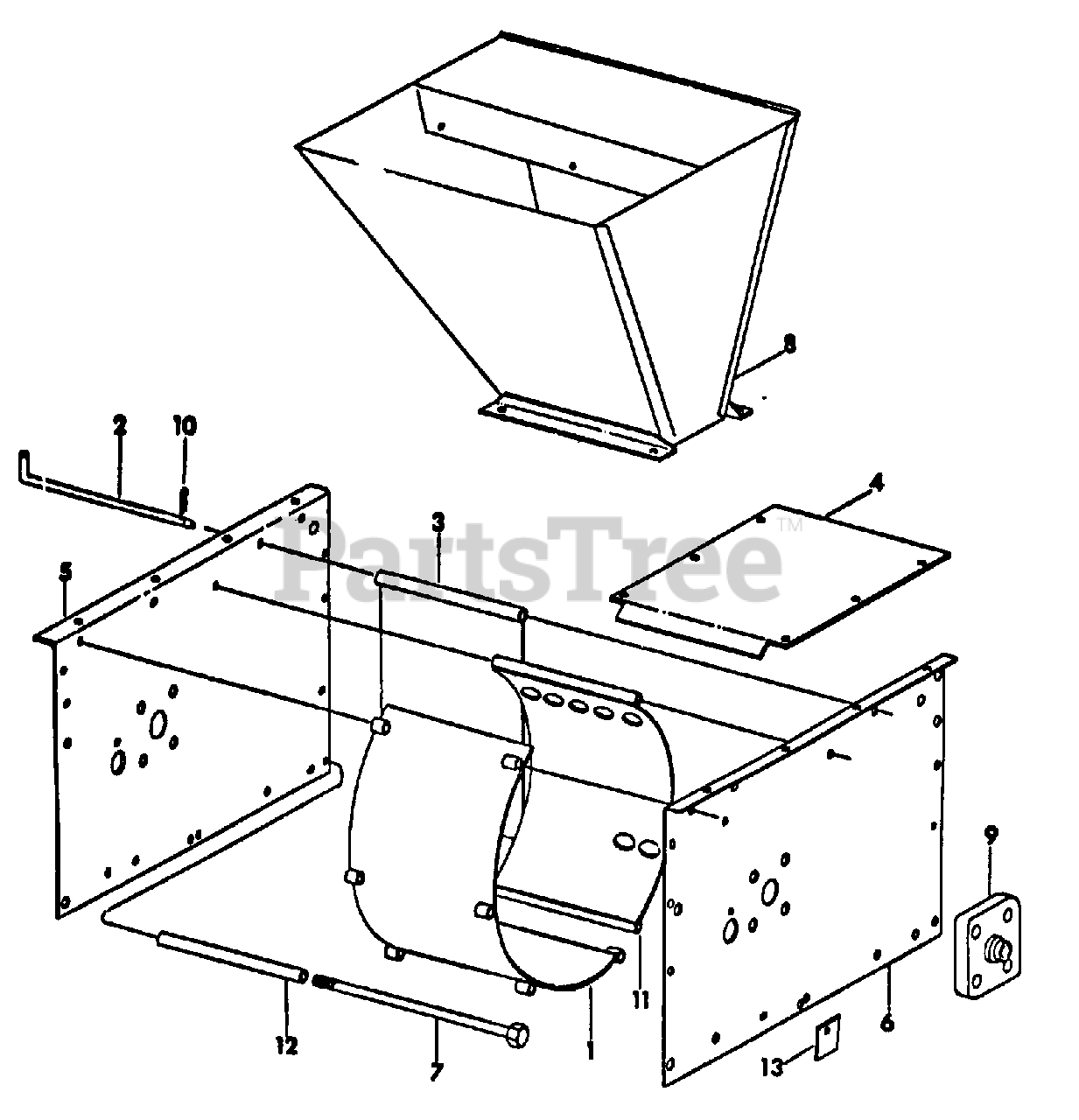

59M Shredder-Grinder Hopper & Frame-Built 1974 To 1977 Parts Diagram

  • Title

1

Cub Cadet 59-601-C1

Scroll

$

$

Currently unavailable

Cub Cadet IH-180081

Screw, 5/16-18 X 1-1/4 Znd Hex-Hd Cap
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9413977

Nut, 5/16-18 Phc Hex Lock
(Superseded to 712-3046)

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 59-608-C1

Rod, Screen & Baffle

$

$

Currently unavailable

3

Cub Cadet 59-603-C1

Plate, Baffle

$

$

Currently unavailable

4

Cub Cadet 62-199-C1

Plate, Top

$

$

Currently unavailable

Cub Cadet IH-180077

Screw, 5/16-18 X 3/4 Znd Hex-Hd Cap
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413977

Nut, 5/16-18 Phc Hex Lock
(Superseded to 712-3046)

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 62-243-C1

Plate, Side LH

$

$

Currently unavailable

6

Cub Cadet 62-244-C1

Plate, Side RH

$

$

Currently unavailable

7

Cub Cadet 59-609-C1

Rod, Tie

$

$

Currently unavailable

Cub Cadet IH-9413977

Nut, 5/16-18 Phc Hex Lock
(Superseded to 712-3046)

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 62-200-C1

Hopper

$

$

Currently unavailable

Cub Cadet IH-180077

Screw, 5/16-18 X 3/4 Znd Hex-Hd Cap
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413977

Nut, 5/16-18 Phc Hex Lock
(Superseded to 712-3046)

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 59-610-C91

Bearing, Flange

$

$

Currently unavailable

Cub Cadet IH-180124

Screw, 3/8-16 X 1-1/4 Znd Hex-Hd Cap
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413953

Nut, 3/8-16 Phc Hex Lock
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 473-443-R1

Pin, Quick Attachable

$

$

Currently unavailable

11

Cub Cadet 59-602-C1

Screen, 1 In. Perforations

$

$

Currently unavailable

Screen, 1/2 In. Perforations -Serviced only as a machine attachment

$

$

Not available

Screen, Bar Type -Serviced only as a machine attachment

$

$

Not available

12

Cub Cadet 59-607-C1

Spacer

$

$

Currently unavailable

13

Cub Cadet 62-382-C1

Plate, Cover

$

$

Currently unavailable

Cub Cadet 179-814

Screw, 5/16-18 X 5/8 Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet 103-320

Washer, 5/16 Reg Lock

$

$

Currently unavailable

Cub Cadet IH-102634

Nut, 5/16-18 Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
