59M - Cub Cadet Shredder/Grinder Attachment (1974 - 1977) Drive and Mounting -Built 1974 to 1977- Parts Diagram

Shredder/Grinder Attachment

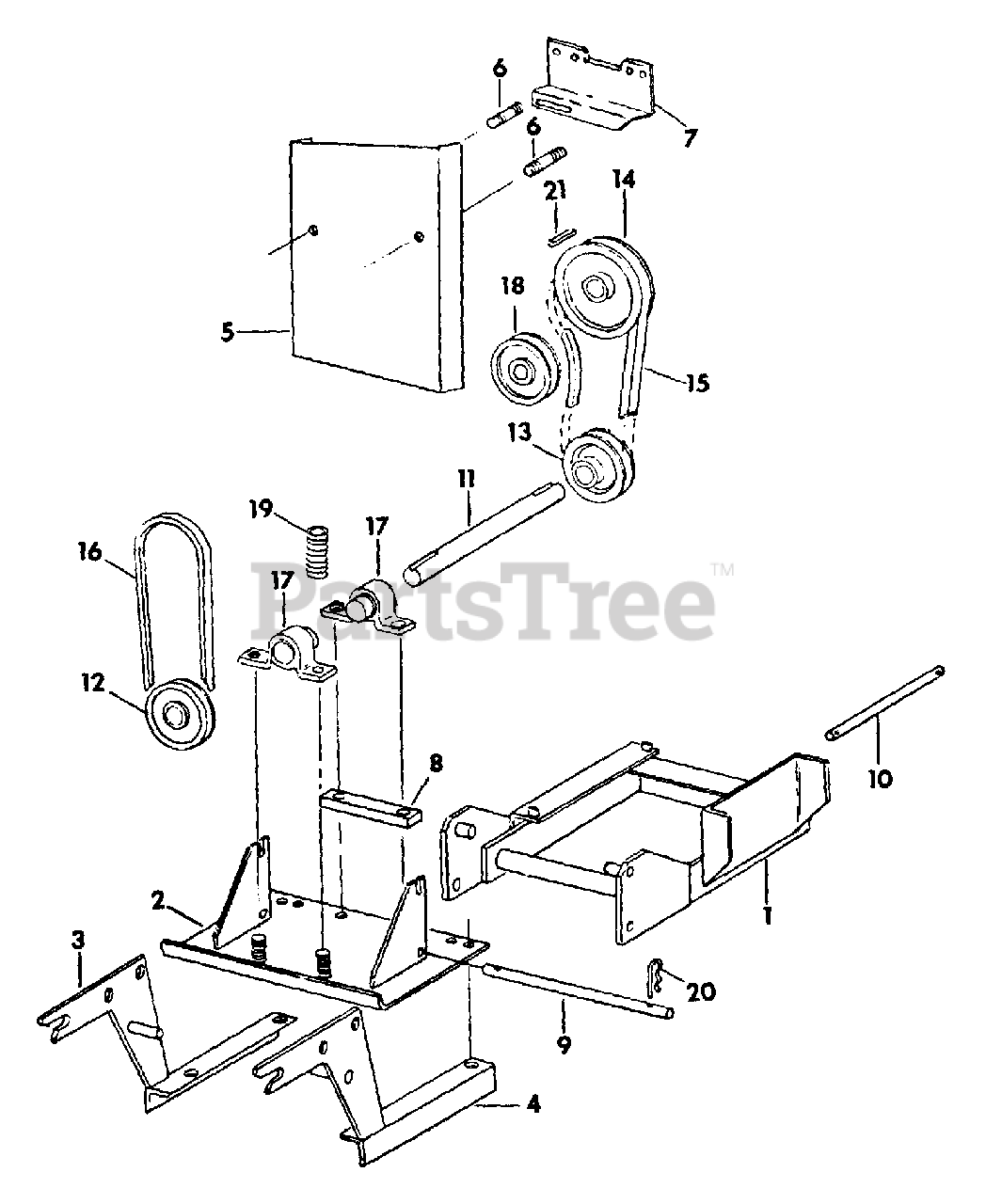

Drive and Mounting -Built 1974 to 1977- Parts Diagram

  • Title

1

62248-C1

FRAME

$

$

Not available

2

59624-C1

PLATE BEARING

$

$

Not available

18494-R1

BOLT 3/8 X 1 ZND HEX-HD MACH

$

$

Not available

Cub Cadet 120382

WASHER 3/8 ZND REG LOCK

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX,
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

3

59625-C1

BRACKET, MOUNTING LH

$

$

Not available

4

Cub Cadet IH-59626-C1

BRACKET, MOUNTING RH

$

$

Currently unavailable

17433-R1

BOLT, 1/2 X 1 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 ZND REG LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

5

62249-C1

SHIELD

$

$

Not available

Cub Cadet IH-142745

NUT, 5/16-18 ZND WING

$

$

Not available

25449-R1

WASHER, .334 X .625 X .054 ZND

$

$

Not available

6

62378-C1

STUD, SHIELD BRACKET

$

$

Not available

Cub Cadet IH-9413977

NUT, 5/16-18 PHC HEX. LOCK
(Superseded to 712-3046)

$6.49

$

Usually ships in 3-6 days

0

7

62376-C1

BRACKET, SHIELD

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

59630-C1

SPACER

$

$

Not available

18780-R1

BOLT, 3/8 X 1-3/4 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-22655-R1

WASHER, .406 X .812 X .051 CDP
(Superseded to 936-0140)

$

$

Not available

Cub Cadet 20382

WASHER, 3/8 ZND REG LOCK

$

$

Currently unavailable

Cub Cadet 1120377

NUT, 3/8-16 ZND HEX.

$

$

Currently unavailable

9

59631-C1

PIN, FRAME MOUNTING

$

$

Not available

10

59632-C1

PIN, SHREDDER MOUNTING

$

$

Not available

11

59633-C1

SHAFT, DRIVE

$

$

Not available

12

Cub Cadet IH-59634-C1

PULLEY, 5-1/2 IN.

$

$

Currently unavailable

192450

SCREW, 5/16-18 X 5/16 ZND HEX-SOC-HD CUP-PT SET

$

$

Not available

Cub Cadet IH-Q53

KEY, 1/4 X 1 SQ PARALLEL
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet IH-59559-C1

PULLEY 4 IN. DIAMETER

$

$

Not available

192450

SCREW, 5/16-18 X 5/16 ZND HEX-SOC-HD CUP-PT SET

$

$

Not available

14

Cub Cadet IH-59622-C1

PULLEY, 5 IN.

$

$

Currently unavailable

Cub Cadet IH-Q53

KEY, 1/4 X 1 SQ PARALLEL
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

192450

SCREW, 5/16-18 X 5/16 ZND HEX-SOC-HD CUP-PT SET

$

$

Not available

15

62379-C1

V-BELT

$

$

Not available

16

Cub Cadet IH-55053-C1

V-BELT, 1/2 TOP WIDTH X 30 IN. OUTSIDE CIRCUMFERENCE

$27.99

$

In Stock, only 3 left!

0

17

Cub Cadet IH-59637-C91

BEARING, PILLOW BLOCK BALL

$

$

Currently unavailable

18

62377-C1

PULLEY, IDLER

$

$

Not available

Cub Cadet IH-180126

SCREW, 3/8-16 X 1-1/2 ZND HEX-HD CAP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-22655-R1

WASHER, .406 X .812 X .051 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet 120382

WASHER 3/8 ZND REG LOCK

$

$

Currently unavailable

120077

NUT, 3/8-16 ZND HEX.

$

$

Not available

19

59639-C1

SPRING

$

$

Not available

Cub Cadet IH-22655-R1

WASHER, .405 X .812 X .051 CDP
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-473443-R1

PIN. QUICK ATTACHABLE
(Superseded to 914-3003)

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet IH-Q53

KEY, 1/4 X 1 SQ PARALLEL
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-547496-R92

PACKAGE, INTERNATIONAL PRODUCT GRAPHIC

$

$

Not available

64591-C1

PRODUCT GRAPHIC, CAUTION

$

$

Not available
