59M - Cub Cadet Shredder/Grinder Attachment Mount (1973 - 1974) 59M Shredder-Grinder Drive & Mounting-Built 1973 & 1974 Parts Diagram

Shredder/Grinder Attachment Mount

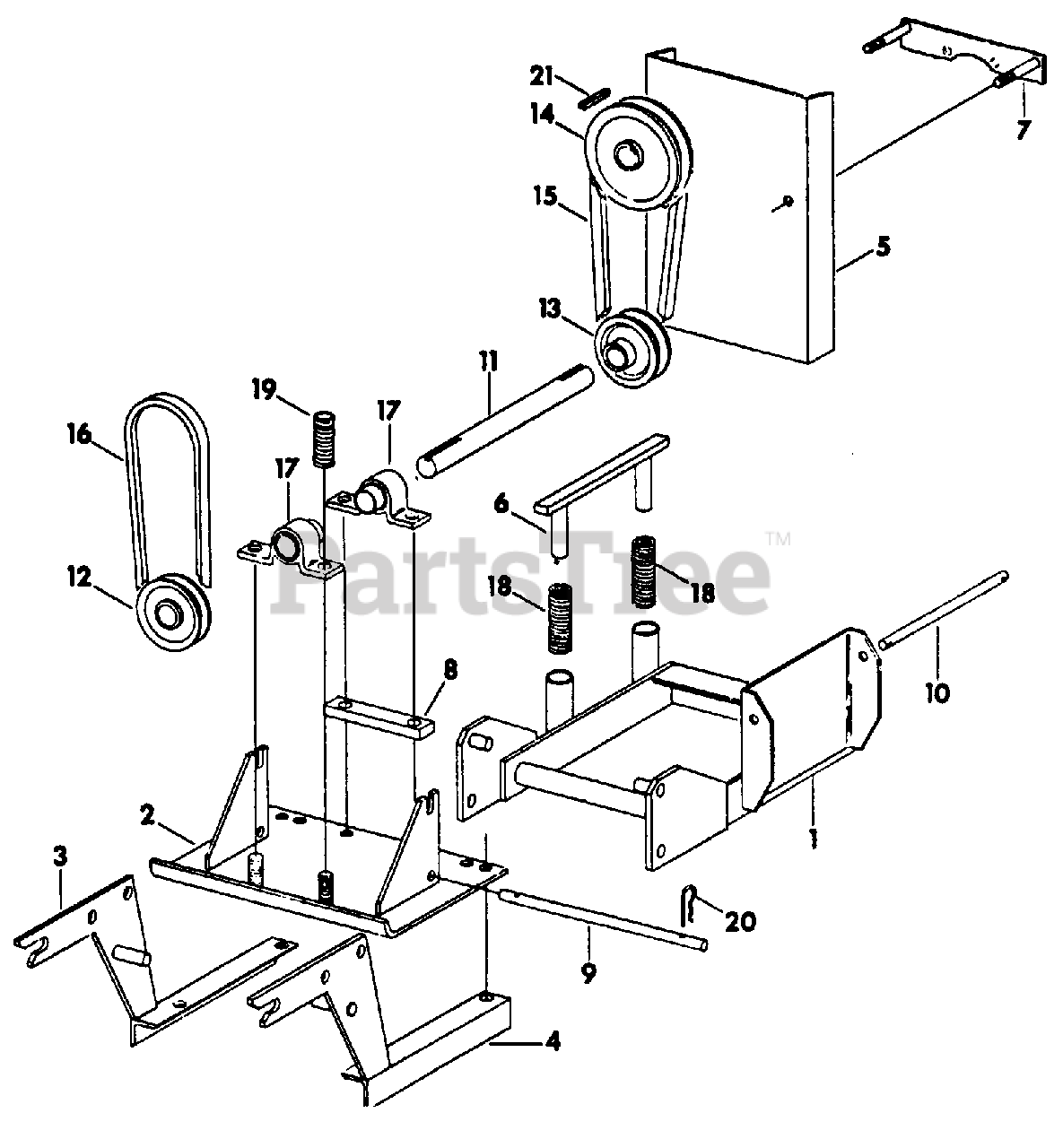

59M Shredder-Grinder Drive & Mounting-Built 1973 & 1974 Parts Diagram

  • Title

1

Cub Cadet 59-623-C1

Frame

$

$

Currently unavailable

2

Cub Cadet 59-624-C1

Plate, Brg

$

$

Currently unavailable

Cub Cadet 18-494-R1

Bolt, 3/8 X 1 Znd Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 59-625-C1

Bracket, Mounting LH

$

$

Currently unavailable

4

Cub Cadet 59-626-C1

Bracket, Mounting RH

$

$

Currently unavailable

Cub Cadet 17-433-R1

Bolt, 1/2 X 1 Znd Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet IH-120384

Washer, 1/2 Znd Reg Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 59-627-C1

Shield

$

$

Currently unavailable

Cub Cadet IH-142745

Nut, 5/16-18 Znd Wing

$

$

Not available

6

Cub Cadet 59-628-C1

Support, Belt Tensioning

$

$

Currently unavailable

7

Cub Cadet 59-629-C1

Bracket, Shield

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 59-630-C1

Spacer

$

$

Currently unavailable

Cub Cadet 18-780-R1

Bolt, 3/8 X 1-3/4 Znd Hex-Hd Mach

$

$

Currently unavailable

Cub Cadet 22-655-R1

Washer, .406 X .812 X .051 Cdp

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 59-631-C1

Pin, Frame Mounting

$

$

Currently unavailable

10

Cub Cadet 59-632-C1

Pin, Shredder Mounting

$

$

Currently unavailable

11

Cub Cadet 59-633-C1

Shaft, Drive

$

$

Currently unavailable

12

Cub Cadet 59-634-C1

Pulley

$

$

Currently unavailable

Cub Cadet 192-450

Screw, 5/16-18 X 5/16 Znd Hex-Soc-Hd Cup-Pt Set

$

$

Currently unavailable

13

Cub Cadet 59-559-C1

Pulley, 4 In. Diameter

$

$

Currently unavailable

Cub Cadet 192-450

Screw, 5/16-18 X 5/16 Znd Hex-Soc-Hd Cup-Pt Set

$

$

Currently unavailable

14

Cub Cadet 59-635-C1

Pulley

$

$

Currently unavailable

Cub Cadet 192-450

Screw, 5/16-18 X 5/16 Znd Hex-Soc-Hd Cup-Pt Set

$

$

Currently unavailable

15

Cub Cadet 176-106-H1

V-Belt, 1/2 Top Width X 42 In. Outside Circumference

$

$

Currently unavailable

16

Cub Cadet 59-636-C1

V-Belt, 1/2 Top Width X 30 In. Outside Circumference

$

$

Currently unavailable

17

Cub Cadet 59-637-C91

Bearing, Pillow Block Ball

$

$

Currently unavailable

18

Cub Cadet 59-638-C1

Spring

$

$

Currently unavailable

19

Cub Cadet 59-639-C1

Spring

$

$

Currently unavailable

Cub Cadet 22-655-R1

Washer, .406 X .812 X .051 Cdp

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 473-443-R1

Pin, Quick Attachable

$

$

Currently unavailable

21

Cub Cadet Q-53

Key, 1/4 X 1 Sq Parallel

$

$

Currently unavailable
