5P70ML - Cub Cadet Engine 5P70ML Crankcase Parts Diagram

Engine

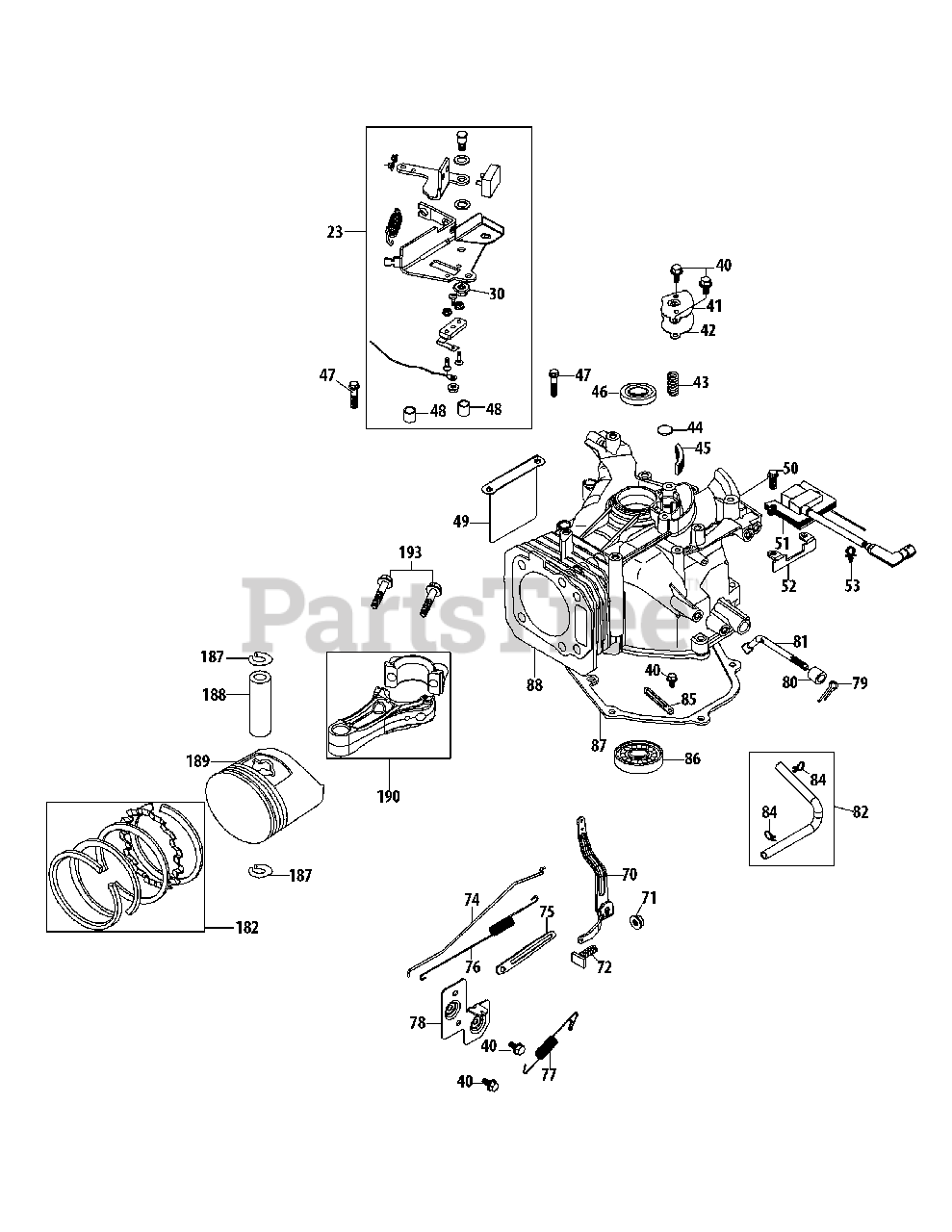

5P70ML Crankcase Parts Diagram

  • Title

23

Cub Cadet 951-10321A

Stop Switch And Brake Assembly

$37.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-04219

Nut M 8 - 1.25

$5.99

$

In Stock, only 2 left!

0

40

Cub Cadet 710-04916

Bolt M6×14

$4.49

$

In Stock, only 2 left!

0

41

Cub Cadet 951-11612

Breather Cover Plate
(Superseded to 951-11728)

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 732-04718

Breather Valve Spring

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11614

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-11615

Mesh Screen

$

$

Not available

46

Cub Cadet 951-11545

Upper Crankshaft Seal
(Superseded to 951-11545A)

$9.99

$

In Stock, only 4 left!

0

47

Cub Cadet 710-04980

Bolt M6×35

$3.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-05384

Engine Brake Spacer

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-11602

Label Bracket

$6.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-04979

Bolt M6×18

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-10366

Ignition Coil Assembly

$96.99

$

In Stock, only 4 left!

0

52

Cub Cadet 951-11619

Ignition Coil Bracket

$3.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-11618

Plastic Clamp 6.3×8

$3.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11238

Governor Arm

$9.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-04908

Governor Arm Bolt

$5.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-11259

Throttle Linkage

$7.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-11680

Flexible Clamp

$3.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-11258

Throttle Linkage Spring
(Superseded to 951-11258A)

$4.49

$

In Stock, Qty 5

0

77

Cub Cadet 951-11273

Governor Return Spring

$6.49

$

In Stock, only 1 left!

0

78

Cub Cadet 951-11620

Component Bracket

$12.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 714-04074

Clip - Governor Shaft
(Superseded to 714-04078)

$3.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

81

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11260

Breather Hose Asm - Includes Hose & Clamps

$5.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

85

Cub Cadet 951-11622

Flexible Clamp
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-11369

Main Bearing

$32.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-11623

Crankcase Cover Gasket

$

$

Not available

88

Cub Cadet 951-12442

Short Block Assembly

Note: (Incl.40-42,44-46,79-81,86-88,90,95-98,108-114,123,152,153,168,182,177,178,180-182,187-190)

$

$

Not available

182

Cub Cadet 951-11253

Piston Ring Set
(Superseded to 951-12111)

$6.49

$

In Stock, Qty 5

0

187

Cub Cadet 951-11632

Piston Pin Snap Ring

$3.99

$

In Stock, only 3 left!

0

188

Cub Cadet 951-11633

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

189

Cub Cadet 951-11634

Piston

$

$

Not available

190

Cub Cadet 951-11635

Connecting Rod Assembly

$

$

Not available

193

Cub Cadet 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11770

Gasket Kit - Complete

Note: Not shown (Incl.42,46,80,87,93,95,111,114,151,153,168,172,177)

$

$

Not available

Cub Cadet 951-11772

Gasket Kit - External

Note: Not shown (Incl.42,93,95,111,151,153,168,172)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z5P70ML

Complete Engine

Note: Not shown

$

$

Currently unavailable
